Home > Products > FAA l-810 GS-LI/D type A LED Double Obstruction Light Two lamp for aircraft warning

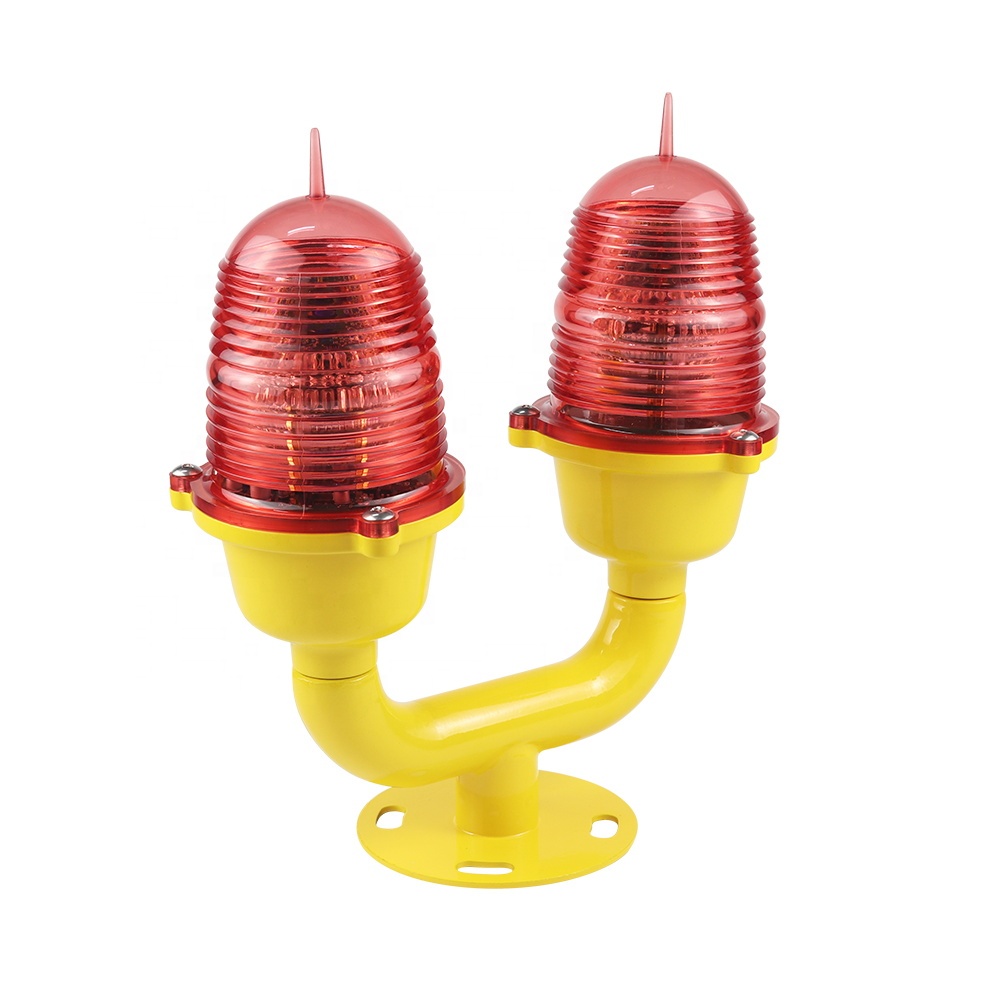

FAA l-810 GS-LI/D type A LED Double Obstruction Light Two lamp for aircraft warning
Click on the image to view the original image
Product: views:7FAA l-810 GS-LI/D type A LED Double Obstruction Light Two lamp for aircraft warning
Branch: Green & Source Light
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC120V, DC12V,DC24V,DC48V
Lamp Power(W):
3
Lamp Luminous Flux(lm):
300
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Beam Angle(°):
360
IP Rating:
IP65
Certification:
CE
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
2G11
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green & Source Light
Light Intensity:
not less than 10cd
Average Power Consumption:
Not more than 3w
Emitting color:
Red
Horizontal out-put:
360
Vertical Divergence:
10
Light Source Service Life:
not less than 20 years
Overall Size:
285mm x 130mm x 315mm
Installation Size:
100mm x M10mm x 4
Weight:
3KG
Ambient Temperature:
-40degree ~70degree
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
each in bubble pack, in carton, 4 sets in a big carton
Port
Shenzhen
Lead Time:
Quantity(Pieces)1 - 1011 - 5051 - 100 >100
Est. Time(days)71015To be negotiated

FAA l-810 GS-LI/D type A LED Double Obstruction Light

Two lamp for aircraft warning

Model type: GS-LI/D type A



Product Overviews

Product Overviews

FAA l-810 GS-LI/D type A LED Double Obstruction Light Two lamp for aircraft warning, base adopts metal baking varnish.

Light source adopt with independent research and developmtn dedicated LED chip, which have the specific of low power consumption and long operational life.

Lampshade adopt with PC material, it can resist corrosion, anti-UV, anti-Shock; management circuit with Strong lightning protection and With the surge protection device, which can adopt to extremely bad working environment.

The type of lamp has photoswitch, it can turn on when enviroment light intensity is less than 50 LUX, and turn off when that above 50 LUX.



Product Details

Product Details

LIGHTING
Effective Intensity
32.5cd
Compliant with
FAA L810, ICAO TYPE A
Emitting Color
Red
Operation Mode
Both heads Steady Burning/Operating head Steady & standby with transfer/Both heads flashing/Two heads flash but take turns/operating head flashing & standby with transfer
Vertical Divergence
10°
Horizontal Out-put
360°
Light source
LED
Light lifespan
>10000h
POWER
Power Supply
Optional voltage:AC220V, AC120V, DC12V,DC24V,DC48V
Supply Frequency
50HZ~60HZ
Power Consumption
≤3W
STRUCTURE
Overall Size
285mm×130mm×315mm
Installation Size
3/4inches or 1 inch chassis install
Lens
Polycarbonate, UV Stabilize, Corrosion Resistance
Body
Aviation aluminum alloy, Die-casting
Temperature Range
-40℃~70℃
Weight
3KG
Waterproof
IP65
Function & Feature

Function & Features

  • Adopts Fresnel lens PC lamp shade, Converging angle meets FAA standard
  • With automatically light control function that can change to working mode at rainy day and night.
  • Led light source, it service life is up to 100,000hours.
  • Low voltage design, high safety degree for using.
  • With the impact resistance, anti lighting, resistant to sunlight, anti snow, can resist typhoons, hail and other severe weather.
  • With over-current protection function.
  • Possess lightning protection function.
  • It can be added with warning function at dry contact.
  • It contains switch for changing flashing light and steady light.
  • No radio frequency(rf), no electromagnetic interference.
Dimension Drawing

Dimension Drawing



Usage Notice

Usage Notice

  • Don"t use any out of nominal voltage, or will destroy equipment.
  • Don"t open it if the device is out of operation, or will be hurt by the internal high pressure.
  • After finished the installation, the personnel must check whether the device is in a good waterproof condition and whether the screw spikes are tightened.
  • Non-professional workers cannot do the device maintenance, or will expand the error and be hurt.

Application

  • Block
  • Airport
  • High mast lamp
  • Chimney
  • Bridge
  • Iron tower
  • Communication Tower
  • High-rise building
Company Information

 Company Information



 Shenzhen Green Source Light Equipment Co., Ltd is specialized in independently researching, developing and manufacturing the full range of Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns and Equipment.

We provide full series solutions from Research to Production. We insist on offering high quality Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns. All those products compliance to ICAO Annex 14, FAA standard, MH/T6012-2015 standard, etc. We produce High intensity/ Medium intensity / Low intensity LED & Solar Powered Aviation Obstruction Light. And Heliport or Helideck light includes aiming point light, Beacon, Insert & Elevated FATO Perimeter light, Taxiway Edge light, Guidence light, Lighted wind cone & Surface Floodlights. We design, produce and supply all these products and own some our patented inventions.

After 10 years development, we rank ahead in our industry in China.



Featured Products

Our Certifications

Our Certifications

FAQ



FAQ

Q1:Can I have a sample order for your products?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?

A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.

Q3:Do you have any MOQ limit for Obstruction light order?

A:No limit, 1pc for sample checking is avaiable.

Q4:How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.

Q5:How to procced an order for Obstruction light?

A:Firstly let us know your requirement or appliction.

   Secondly we will quote according to your requirement or suggested appropriate products.

   Thirdly you confirm prices and check the samples.

   Fourthly you confrim order and place deposit for formal order.

   Then we will arrange the mass production for you.

Just feel free to contact us, we will effectively serve you and satisfy you.

Q6: is it OK to print my logo on Obstruction light product?

A: Yes, Please inform us formally before our production and confirm the design firstly based on our sample.

Q7:Do you offer guarantee for the products?

A:Yes. we offer 2~5years warranty on our products.

Q8:How to deal with the faulty?

A: Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.2%.

    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
