- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- DC3.2V
- Lamp Power(W):
- 2
- Lamp Luminous Flux(lm):
- 200
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 80
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- 360
- IP Rating:
- IP68
- Certification:
- CE, FCC, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- PC
- Base Type:
- 2G11
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Source
- Quiescent Current:
- ≤50uA
- Working mode:
- Steady burning/Flashing 20~60times/min.
- Transmitting Range:
- >5Km(T=0.95)
- Light Intensity:
- steady-burning≥10cd,flashing≥32.5cd
- Service Life:
- Not less than 20 years
- Ambient Temperature:
- -40 ~70 degree
- Battery type:
- Replaceable lithium iron phosphate battery
- Vertical Divergence:
- 10°
- Installation size:
- 170mm x M6
- Anti-wind ability:
- 80m/s
- Supply Ability:
- 5000 Piece/Pieces per Month
- Packaging Details
- each one in bubble pack, in small carton ,12 pcs in big carton.
- Port
- Shenzhen
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100 Est. Time(days) 3 7 10 To be negotiated

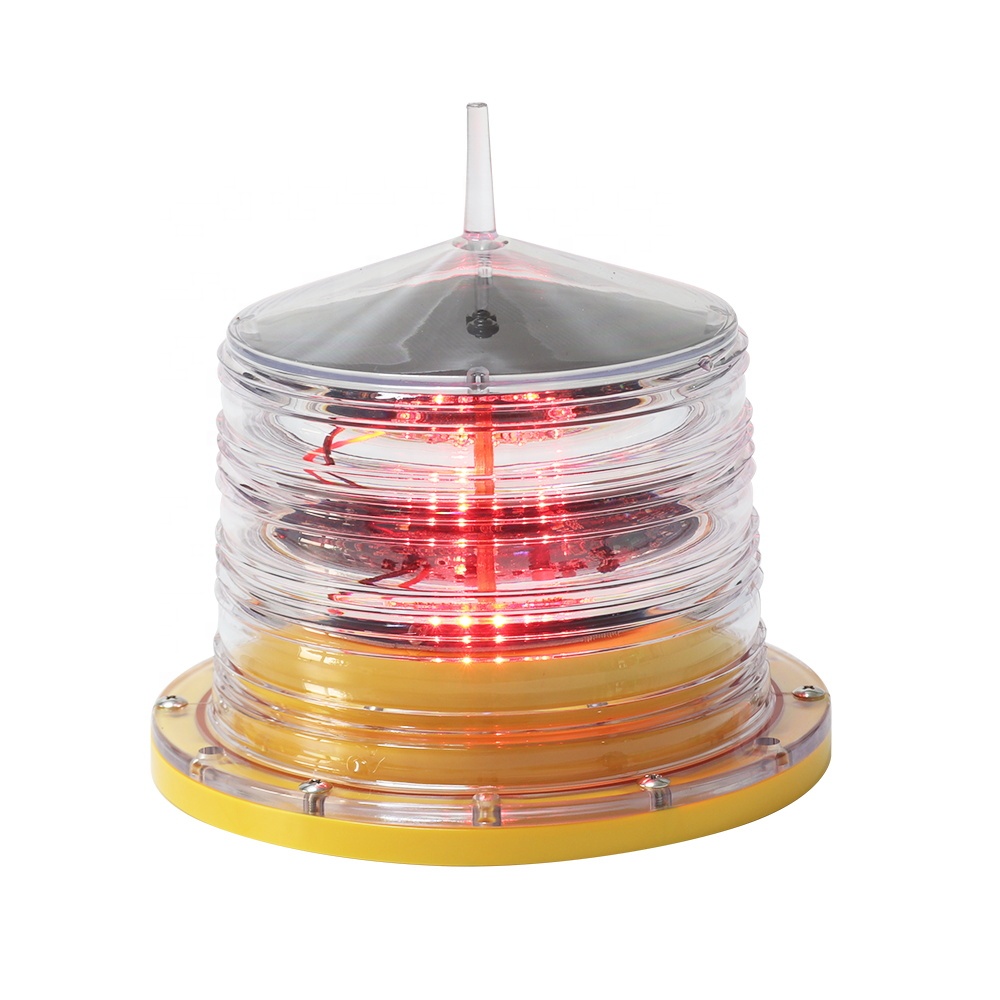

FAA L810 GS-LS/G solar powered Low Intensity
Aviation obstruction warning Light
Model type:GS-LS/G
Product Overviews
Inserted solar panel whose photoelectric conversion efficiency is up to 25%, cooperated with solar dedicated lithum iron phosphate battery as power supply. Control circuit adopts micro-power consumption single controlling chip, which can accurately control battery"s charge & discharge statue and reduce its power consumption.Light source adopts high efficient LED chip, which has advantage of high light intensity, low power consuption, long service life and so on.Lampshade adopts PC material, which has the ability of anti-UV, anti-shock, and corrosion resistance.The base adopts marine-grade dedicated plastic material, it can apply to seaways and chemical plant that have hostile and strong corrosive environment.
Product Details
Function & Features
- Continuous working time in rainy day can reach to more than 30days.(10 hours a day)
- Photocell can switch ON/OFF the light in rainy days or at night automatically
- Photoelectric conversion efficiency is up to 25%
- IP68, Waterproof integration body, it can work in soaking sea water.
- Adopts special customized LED chip, Higher tranfer efficiency and Longer service life
- Circuit applied advanced charging and discharging management system
- Good ability of Impact resistance, light fastness, anti-lighting, anti-UV, anti-snow, typhoon resistance, and function well on other severe weather.
- Solar phosphoric acid iron battery service life is more than 3 years, User-replaceable, low-maintenance
Dimension Drawing
Usage Notice
- Please read the instruction carefully and then use the device correctly
- Solar powered marine lantern must be installed in a sunny place to keep it working continuously
- Please install this light on the installation plane that perpendicular to light axis, installation plane should has mechanical strength
- Ensure to place the device under sunlight to recharge power 12 hours before the initial use
- Please turn off the device and put it under sunlight for 5 days to recharge power each 3 months if stored without use
Company Information
Shenzhen Green Source Light Equipment Co., Ltd is specialized in independently researching, developing and manufacturing the full range of Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns and Equipment.
After 10 years development, we rank ahead in our industry in China.
Featured products
Our Certifications
FAQ
Q1:Can I have a sample order for your products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.
Q3:Do you have any MOQ limit for Obstruction light order?
A:No limit, 1pc for sample checking is avaiable.
Q4:How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.
Q5:How to procced an order for Obstruction light?
A:Firstly let us know your requirement or appliction.
Secondly we will quote according to your requirement or suggested appropriate products.
Thirdly you confirm prices and check the samples.
Fourthly you confrim order and place deposit for formal order.
Then we will arrange the mass production for you.
Just feel free to contact us, we will effectively serve you and satisfy you.
