Click on the image to view the original image
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- DC6.4V
- Lamp Power(W):
- 4
- Lamp Luminous Flux(lm):
- 400
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 80
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- 360
- IP Rating:
- IP65
- Certification:
- CE, FCC, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- 2G11
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Source
- Standard:
- ICAO Annex14 Low intensity Type A
- Material:
- lampshade: PC base: SUS304 stainless steel
- Light Intensity:
- steady-burning≥10cd, flashing optional ≥32.5cd
- Working mode:
- Steady burning/Flashing 20~60times/min.
- Service Life:
- Not less than 20 years
- Battery type:
- Replaceable lithium iron phosphate battery
- Ambient Temperature:
- -40 ~60 degree
- Overall size:
- 330 x 158 x 340mm
- Installation size:
- 3/4 inchor 100 x 100 x 12
- Anti-wind ability:
- 80m/s
- Supply Ability:
- 5000 Piece/Pieces per Month
- Packaging Details
- each one in bubble pack, in small carton ,4 pcs in big carton.
- Port
- Shenzhen
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100 Est. Time(days) 3 10 15 To be negotiated

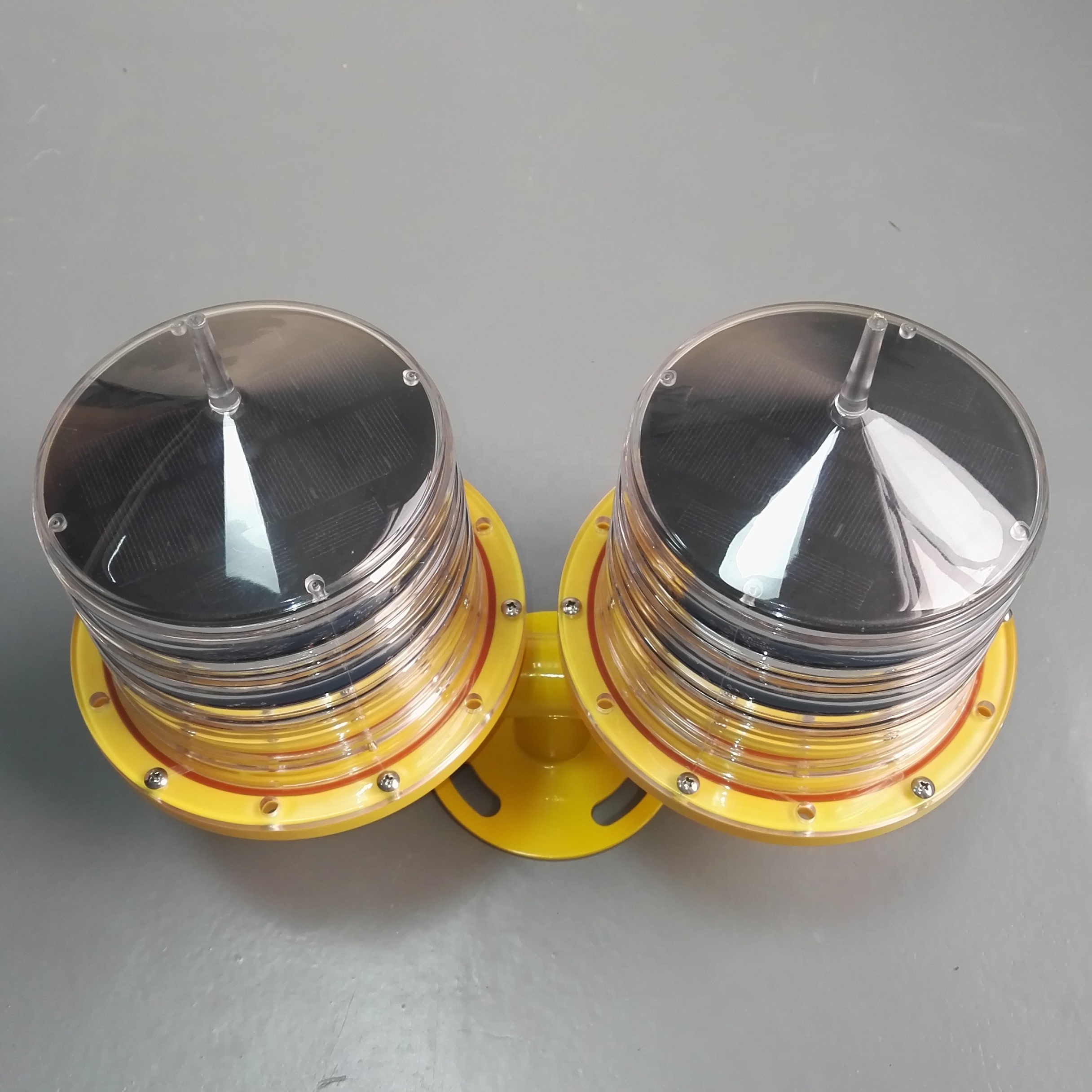

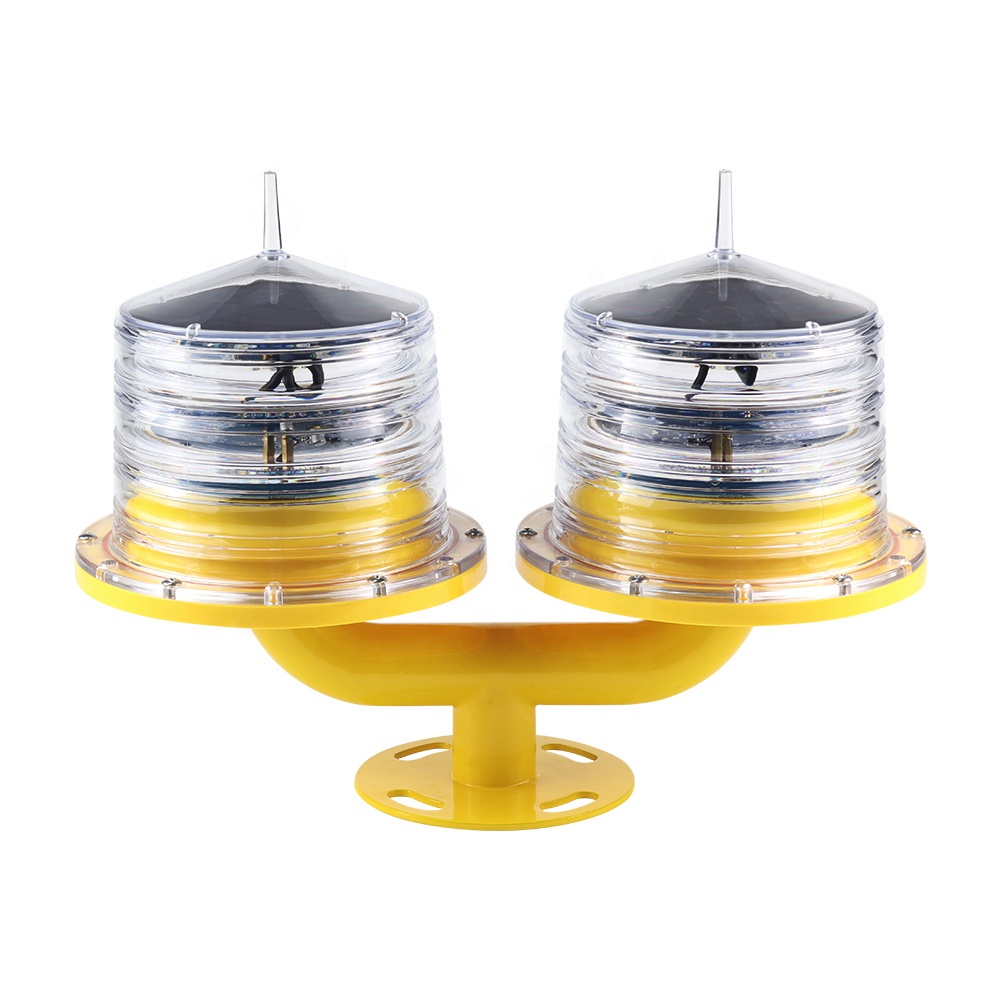

ICAO type A GS-LS/T double solar powered towel Aviation obstruction Light
Model type:GS-LS/T
Product Overviews
ICAO type A GS-LS/T double solar powered towel Aviation obstruction Light adopts insert high efficiency solar panels intergrated design, whose photoelectric conversion efficiency is up to 25%, cooperated with solar dedicated lithum iron phosphate battery as power supply.
Control circuit adopts micro-power consumption single controlling chip, which can accurately control battery"s charge & discharge statue and reduce its power consumption.
Light source adopts high efficient LED chip, which has advantage of high light intensity, low power consuption, long service life and so on.
Lampshade adopts PC material, which has the ability of anti-UV, anti-shock, and corrosion resistance.
The base is made of stainless steel integrated that has the specific of light weight and corrosion resistance, easy to install and transportation.
Product Details
Function & Features
- Continuous working time in rainy day can reach to more than 30days.(10 hours a day)
- Photocell can switch ON/OFF the light in rainy days or at night automatically
- Photoelectric conversion efficiency is up to 25%
- Adopts special customized LED chip, Higher tranfer efficiency and Longer service life
- Circuit applied advanced charging and discharging management system
- Good ability of Impact resistance, light fastness, anti-lighting, anti-UV, anti-snow, typhoon resistance, and function well on other severe weather.
- Solar phosphoric acid iron battery service life is more than 3 years, User-replaceable, low-maintenance
- No radio frequency, no electomagnetic, interference
Dimension Drawing
Usage Notice
- Please read the instruction carefully and then use the device correctly
- Solar powered marine lantern must be installed in a sunny place to keep it working continuously
- Please install this light on the installation plane that perpendicular to light axis, installation plane should has mechanical strength
- Ensure to place the device under sunlight to recharge power 12 hours before the initial use
- Please turn off the device and put it under sunlight for 5 days to recharge power each 3 months if stored without use
Application
- Block
- Bridge
- Towers
- Communication Tower
- Chimney
- Runway
- Heliport
- traffic barrier
- Tower cranes
