Home > Products > FAA L865 GS-MI/A Medium Intensity type A Aviation Obstruction Light for High rising Buildings
FAA L865 GS-MI/A Medium Intensity type A Aviation Obstruction Light for High rising Buildings
Click on the image to view the original image
Product: views:6FAA L865 GS-MI/A Medium Intensity type A Aviation Obstruction Light for High rising Buildings
Branch: Green Source
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC 220V
Lamp Power(W):
20
Lamp Luminous Flux(lm):
2000
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
Cool White
Beam Angle(°):
360
IP Rating:
IP68
Certification:
CE, RoHS
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
AR111
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
FAA Classify:
L-865/866
Supply Frequency:
50HZ~60HZ
Working Mode:
Flashing 40~60times/min, 24hours
Vertical Divergence:
>10°
Light intensity:
2000cd~ 20000cd
Ambient Temperature:
-40 ~70 degree
Weight:
3.8KG
Anti-wind ability:
80m/s
Installation size:
234 by M8
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
each one in bubble pack, in small carton ,4 pcs in big carton.
Port
Shenzhen
Picture Example:
package-img
Lead Time:
Quantity(Pieces)1 - 1011 - 5051 - 100 >100
Est. Time(days)71015To be negotiated

FAA L865 GS-MI/A Medium Intensity type A

Aviation Obstruction Light for High rising Buildings





Model type:GS-MI/A



Product Overviews

Product Overviews

Applied when obstruction height between 105m and 150m.

FAA L865 GS-MI/A Medium Intensity type A Aviation Obstruction Light for High rising Buildings

, compliance to ICAO Annex 14 Medium Intensity types A (2,000cd~20,000cd) and FAA L-865/866, are applyed on high rising buildings, communication towers, Iron towers, etc.

Base adopts high strength/intensity aviation aluminum die-casting, fully sealed structure.

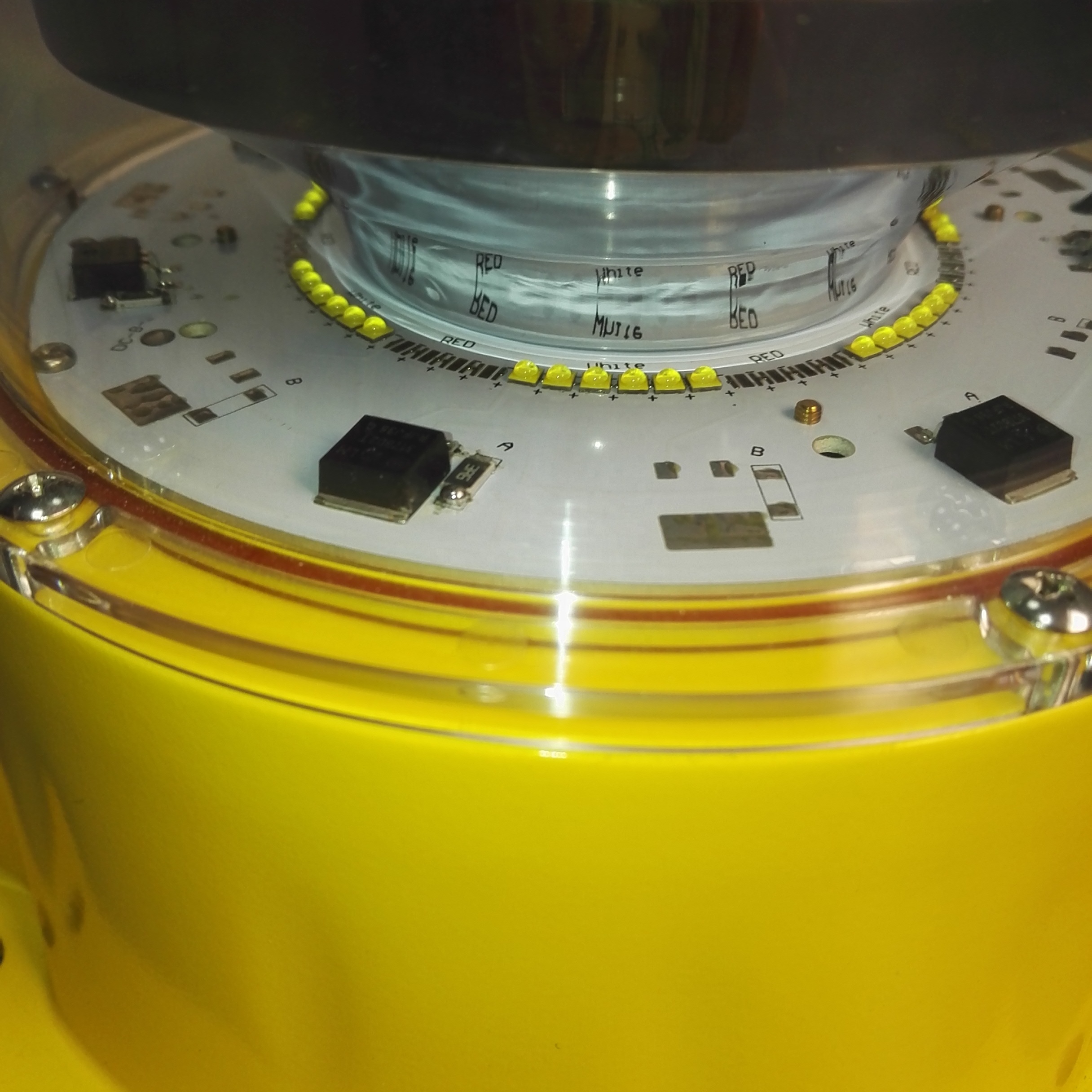

Light source adopt with independently researched and produced LED chip,which has the features of high light intensity and long service life.

Lampshade adopt with PC material, which has the ability of  anti-UV, anti-shock, and corrosion resistance.

Circuit management system has strong lightning protection and surge protection function. The good seismic performance can guarantee proper use under the extremely bad working environment.

This lamp comes with the flashing rate encoder, customer could adjust according to their needs.

We offer 2~5years limited warranty subject to Green Source Terms & Conditions of Sales.



Product Details

Product Details

Function & Features

Function & Features

  • Adopts cree chip, which has the specific of high light intensity, low power consuption, long service life.
  • The shell adopts high intensity aviation aluminum to cast, with full seal structure.
  • Independent research and development design with patented optical lens, emitting angle compliance to standard of FAA, ICAO.
  • Lamp shade adopts PC material, provide strong ability of corrosion resistance, anti-uv,anti-shock.
  • With anti-surge protection device, it can adapt to extremely bad working enviroment.
  • Adopts advanced technology of powder coating, provide excellent heat dissipation, which can reduce the volume and weight of lamps effectively
  • Possess ability of anti-shock, light fastness, anti-rain and snow.
  • With over-current protection function.
  • GPS synchronisation optional.
Dimension Drawing

 Dimension Drawing










Usage Notice

Usage Notice

  • Don"t use any out of nominal voltage, or will destroy equipment.
  • Don"t open it if the device is out of operation, or will be hurt by the internal high pressure.
  • After finished the installation, the personnel must check whether the device is in a good waterproof condition and whether the screw spikes are tightened.
  • Non-professional workers cannot do the device maintenance, or will expand the error and be hurt.

Application

  • Block
  • Airport
  • High mast lamp
  • Chimney
  • Bridge
  • Iron tower
  • Communication towers

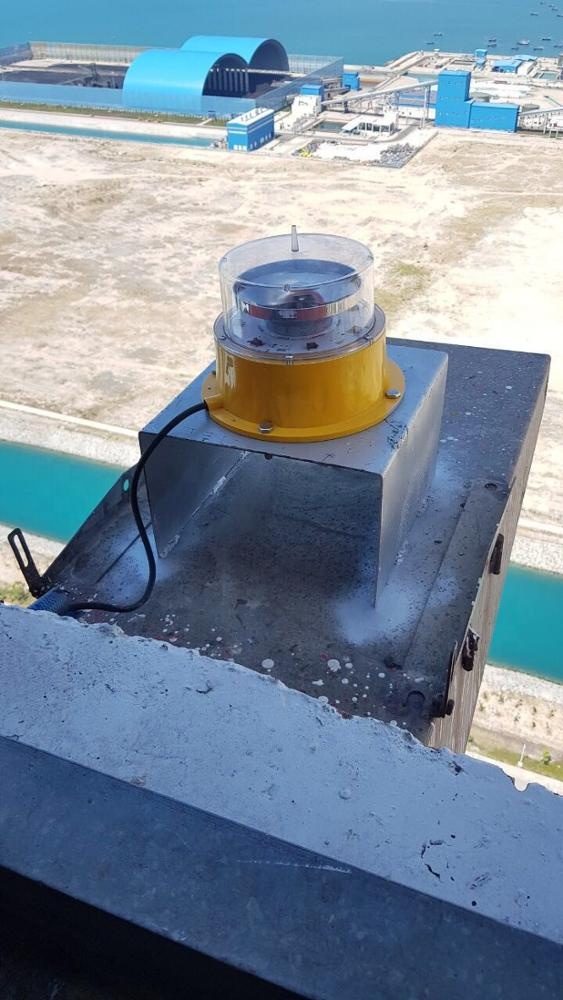

  • High rise building
Company Information

Company Information

 Shenzhen Green Source Light Equipment Co., Ltd is specialized in independently researching, developing and manufacturing the full range of Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns and Equipment.

We provide full series solutions from Research to Production. We insist on offering high quality Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns. All those products compliance to ICAO Annex 14, FAA standard, MH/T6012-2015 standard, etc. We produce High intensity/ Medium intensity / Low intensity LED & Solar Powered Aviation Obstruction Light. And Heliport or Helideck light includes aiming point light, Beacon, Insert & Elevated FATO Perimeter light, Taxiway Edge light, Guidence light, Lighted wind cone & Surface Floodlights. We design, produce and supply all these products and own some our patented inventions.

After 10 years development, we rank ahead in our industry in China.



Featured products

Our Certifications

Our Certifications



FAQ



FAQ

Q1:Can I have a sample order for your products?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?

A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.

Q3:Do you have any MOQ limit for Obstruction light order?

A:No limit, 1pc for sample checking is avaiable.

Q4:How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.

Q5:How to procced an order for Obstruction light?

A:Firstly let us know your requirement or appliction.

   Secondly we will quote according to your requirement or suggested appropriate products.

   Thirdly you confirm prices and check the samples.

   Fourthly you confrim order and place deposit for formal order.

   Then we will arrange the mass production for you.

Just feel free to contact us, we will effectively serve you and satisfy you.

Q6: is it OK to print my logo on Obstruction light product?

A: Yes, Please inform us formally before our production and confirm the design firstly based on our sample.

Q7:Do you offer guarantee for the products?

A:Yes. we offer 2~5years warranty on our products.

Q8:How to deal with the faulty?

A: Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.2%.

    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
