Overview
Quick Details
- Type:

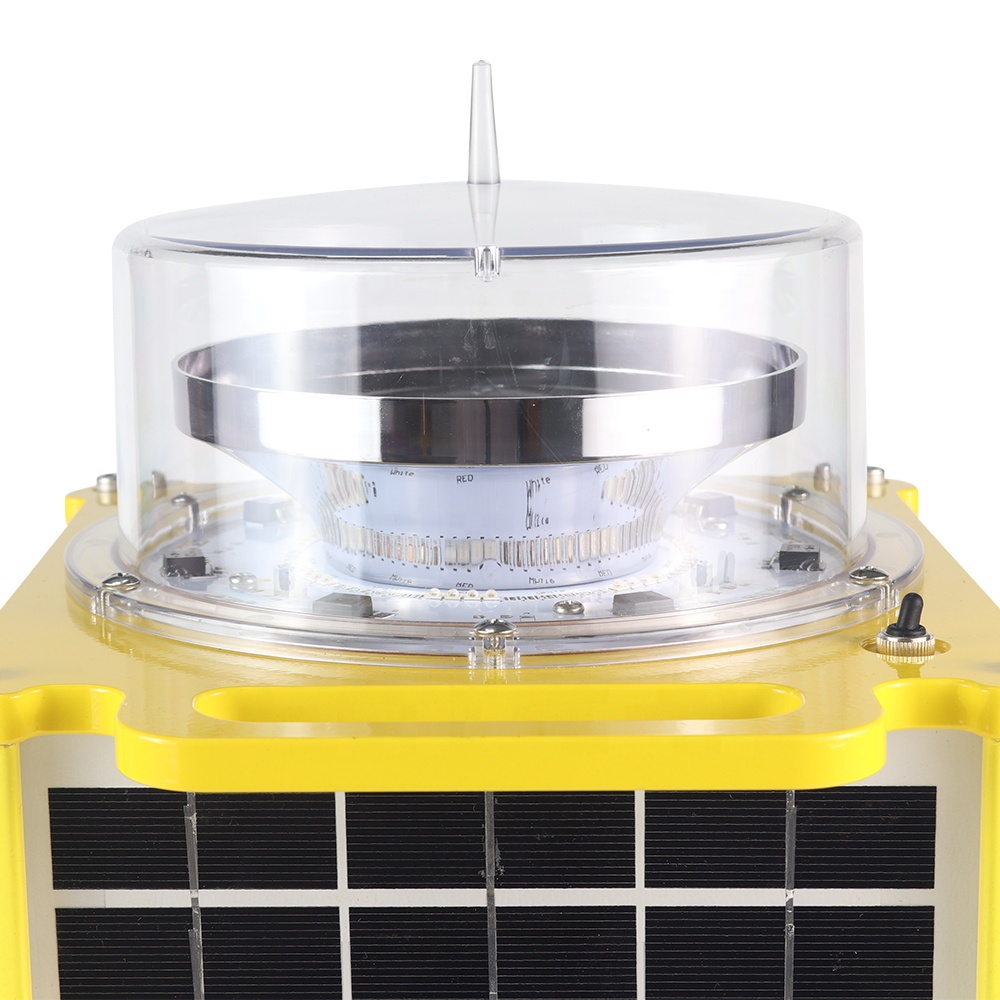

- Aviation Obstruction Lights
- Input Voltage(V):
- DC9V
- Lamp Power(W):
- 15
- Lamp Luminous Flux(lm):
- 1500
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 80
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- 360
- IP Rating:
- IP67
- Certification:
- CE, FCC, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- 2G11
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Source
- Light intensity:
- 2,000cd ~20,000cd
- Working mode:
- Flashing 40~60 times/min.
- Working time:
- 24 hours a day
- Service Life:
- Not less than 20 years
- Battery type:
- Replaceable solar lead-acid battery
- Vertical Divergence:
- 3°

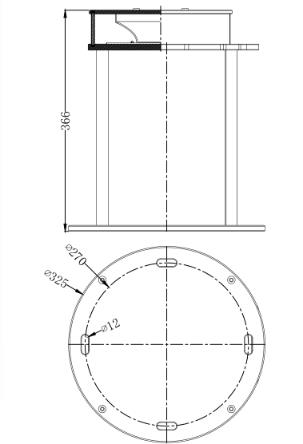

- Installation size:
- 170mm x M6
- Ambient Temperature:
- -40 ~60 degree
- Anti-wind ability:
- 80m/s
- Standard:
- ICAO Annex 14, FAA L-865/866
Supply Ability
- Supply Ability:
- 5000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- each one in bubble pack, in small carton ,12 pcs in big carton.
- Port
- Shenzhen
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 10 11 - 20 21 - 50 >50 Est. Time(days) 7 10 15 To be negotiated
