Click on the image to view the original image
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- AC 220V
- Lamp Power(W):
- 20
- Lamp Luminous Flux(lm):
- 2000
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 80
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- 360
- IP Rating:
- IP68
- Certification:
- CE, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- AR111
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Source
- FAA Classify:
- L-864/865
- Supply Frequency:
- 50HZ~60HZ
- Working mode:
- flashing 20~40 times/min, night or low visibility
- Light Intensity:
- 2000cd with 25% sliding scales
- Vertical Divergence:
- >3°
- Service Life:
- Not less than 20 years
- Ambient Temperature:
- -40 ~70 degree
- Weight:
- 3.8KG
- Anti-wind ability:
- 80m/s
- Installation size:
- 234 by M8
- Supply Ability:
- 5000 Piece/Pieces per Month
- Packaging Details
- each one in bubble pack, in small carton ,4 pcs in big carton.
- Port
- Shenzhen
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100 Est. Time(days) 7 10 15 To be negotiated

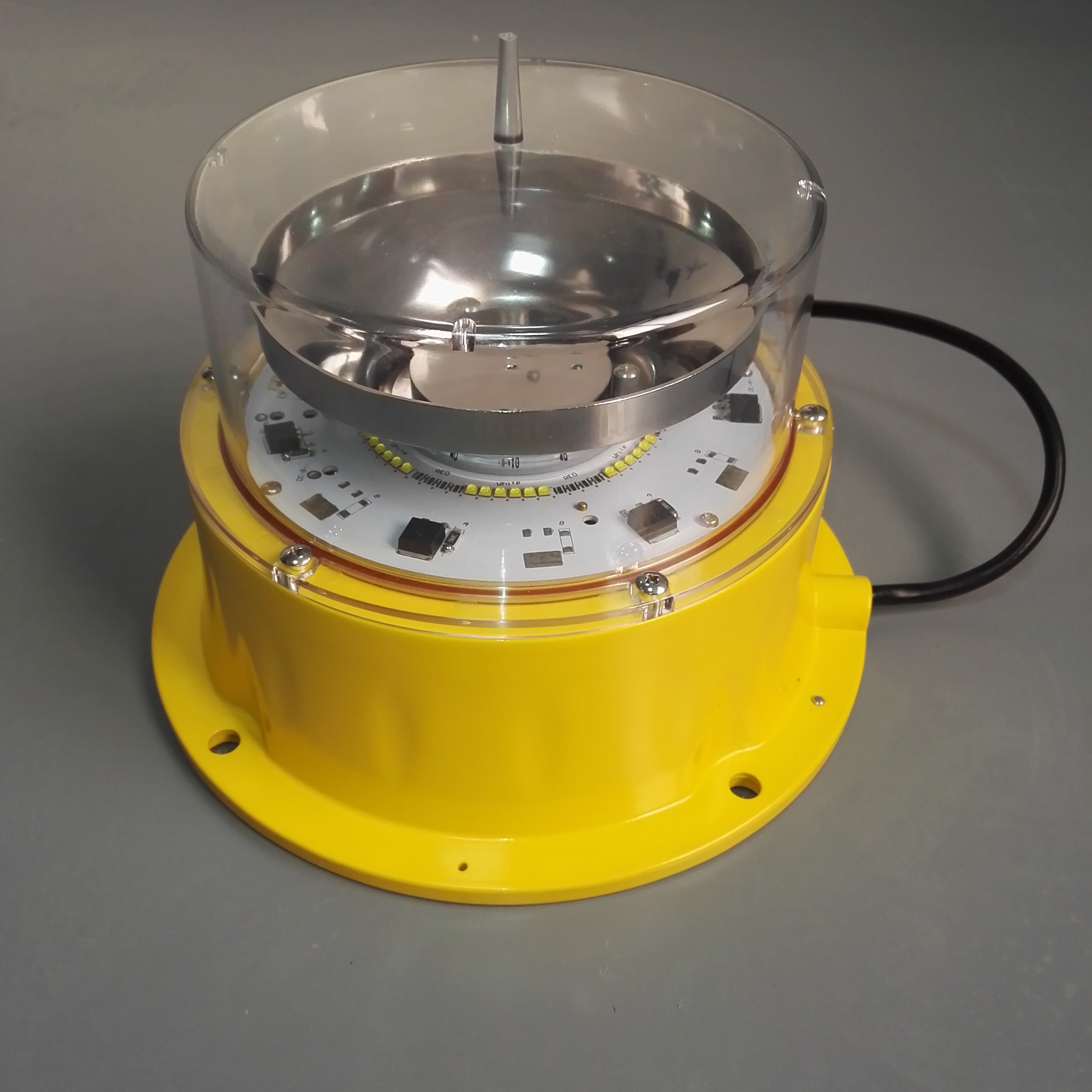

FAA L865 GS-MI/B Medium Intensity type B
Aviation Obstruction Light for Chimney
Model type:GS-MI/B
Product Overviews
Applied on obstruction height bettween 45m and 105m.
FAA L865 GS-MI/B Medium Intensity type B Aviation Obstruction Light for Chimney , compliance to ICAO Annex 14 Medium Intensity types B (2,000cd~20,000cd) and FAA L-864/865.
Base adopts high strength/intensity aviation aluminum die-casting, fully sealed structure.
Light source adopt cree chip, cooperated with patented optical lens, which features with high intensity light, long service life,
Lampshade adopt with PC material, which has the ability of anti-UV, anti-shock, and corrosion resistance.
Circuit management system has strong lightning protection and surge protection function. The good seismic performance can guarantee proper use under the extremely bad working environment.
This lamp comes with the flashing rate encoder, customer could adjust according to their needs.
We offer 2~5years limited warranty subject to Green Source Terms & Conditions of Sales.
Product Details
Function & Features
- Adopts cree chip, which has the specific of high light intensity, low power consuption, long service life.
- The shell adopts high intensity aviation aluminum to cast, with full seal structure.
- Independent research and development design with patented optical lens, emitting angle compliance to standard of FAA, ICAO.
- Lamp shade adopts PC material, provide strong ability of corrosion resistance, anti-uv,anti-shock.
- With anti-surge protection device, it can adapt to extremely bad working enviroment.
- Adopts advanced technology of powder coating, provide excellent heat dissipation, which can reduce the volume and weight of lamps effectively
- Possess ability of anti-shock, light fastness, anti-rain and snow.
- With over-current protection function.
- GPS synchronisation optional.
Dimension Drawing
Usage Notice
- Don"t use any out of nominal voltage, or will destroy equipment.
- Don"t open it if the device is out of operation, or will be hurt by the internal high pressure.
- After finished the installation, the personnel must check whether the device is in a good waterproof condition and whether the screw spikes are tightened.
- Non-professional workers cannot do the device maintenance, or will expand the error and be hurt.
Application
- Block
- Airport
- High mast lamp
- Chimney
- Bridge
- Iron tower
- Communication towers
- High rise building
