ICAO Medium Intensity type B LED Solar Aviation Obstruction Warning Dual Light
Click on the image to view the original image
Product: views:6ICAO Medium Intensity type B LED Solar Aviation Obstruction Warning Dual Light
Branch: Green Source
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
16.5
Lamp Power(W):
20
Lamp Luminous Flux(lm):
2000
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
Cool White
Beam Angle(°):
360
IP Rating:
IP67
Certification:
CE, FCC, RoHS
Emitting Color:
Red
Lamp Body Material:
PC
Base Type:
2G11
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
Solar Panel:
16.5V 28W
Flash Rate:
White in daytime, 40times/min Red atnight
Transmitting Range:
>5Km(T=0.95)
Intensity:
In daytime ≥ 1600cd At night ≥ 18000cd
Battery type:
lithium iron phosphate battery
Vertical Divergence:
Overall Size:
490mm*525mm*490mm
Installation Size:
320mm*200mm*M10
Anti-wind Ability:
80m/s
Weight:
16kg
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
each one in bubble pack, in carton
Port
Shenzhen
Lead Time:
Quantity(Pieces)1 - 1011 - 2021 - 50 >50
Est. Time(days)101520To be negotiated

ICAO Medium Intensity type B LED Solar

Aviation Obstruction Warning Dual Light





Model type:GS-MS/D



Product Overviews

Product Overviews

ICAO Medium Intensity type B LED Solar Aviation Obstruction Warning Dual Light adopts the solar panel which has lower intensity of illumination and higher efficiency, cooperated with lead-acid battery as power supply.

The battery adopts advance power management system, which can provide good protection when battery"s voltage and temperature too high or too low, so it can improve the batterr"s service life

Control circuit adopts micro-power consumption single controlling chip, which can accurately control battery"s charge & discharge statue and reduce its power consumption.

Light shell adopts SUS 304 stainless steel, which has the features of corrosion resistance and light weight, convenient for installation and transportation.

Lampshade adopts PC material, which has the ability of anti-UV, anti-shock, and corrosion resistance.

Double light resource as back-up, if main light broken it will switch to auxiliary light working.

Product Details

Product Details


Function & Features
  • Continuous working time in rainy day can reach to more than 15days.(10 hours a day)
  • Photocell can switch ON/OFF the light in rainy days or at night automatically
  • Standard optical design, high photoelectric conversion efficiency.
  • Adopts special customized LED chip, Higher tranfer efficiency and Longer service life
  • Lead-acid battery, service life can be up to 3 years,User-replaceable
  • Lithium Iron Phosphat battery optional, better stability.
  • Good ability of Impact resistance, light fastness,  anti-lighting, anti-UV, anti-snow and rain.

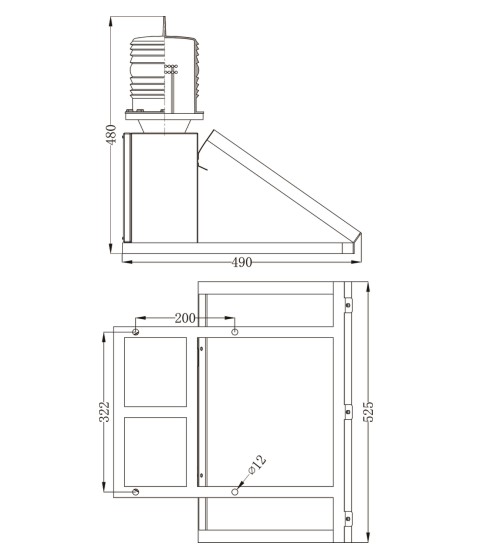

Dimension Drawing

 Dimension Drawing






Usage Notice

Usage Notice

  • Please read the instruction carefully and then use the device correctly
  • Solar powered marine lantern must be installed in a sunny place to keep it working continuously
  • Please install this light on the installation plane that perpendicular to light axis, installation plane should has mechanical strength
  • Ensure to place the device under sunlight to recharge power 12 hours before the initial use
  • Please turn off the device and put it under sunlight for 5 days to recharge power each 3 months if stored without use

Application

  • Block
  • Bridge
  • Towers
  • Communication tower
  • Chimney
  • Runway
  • Heliport
  • Traffic barrier
  • Tower cranes
