Home > Products > GS-MS/T portable medium intensity type B solar aviation obstruction light

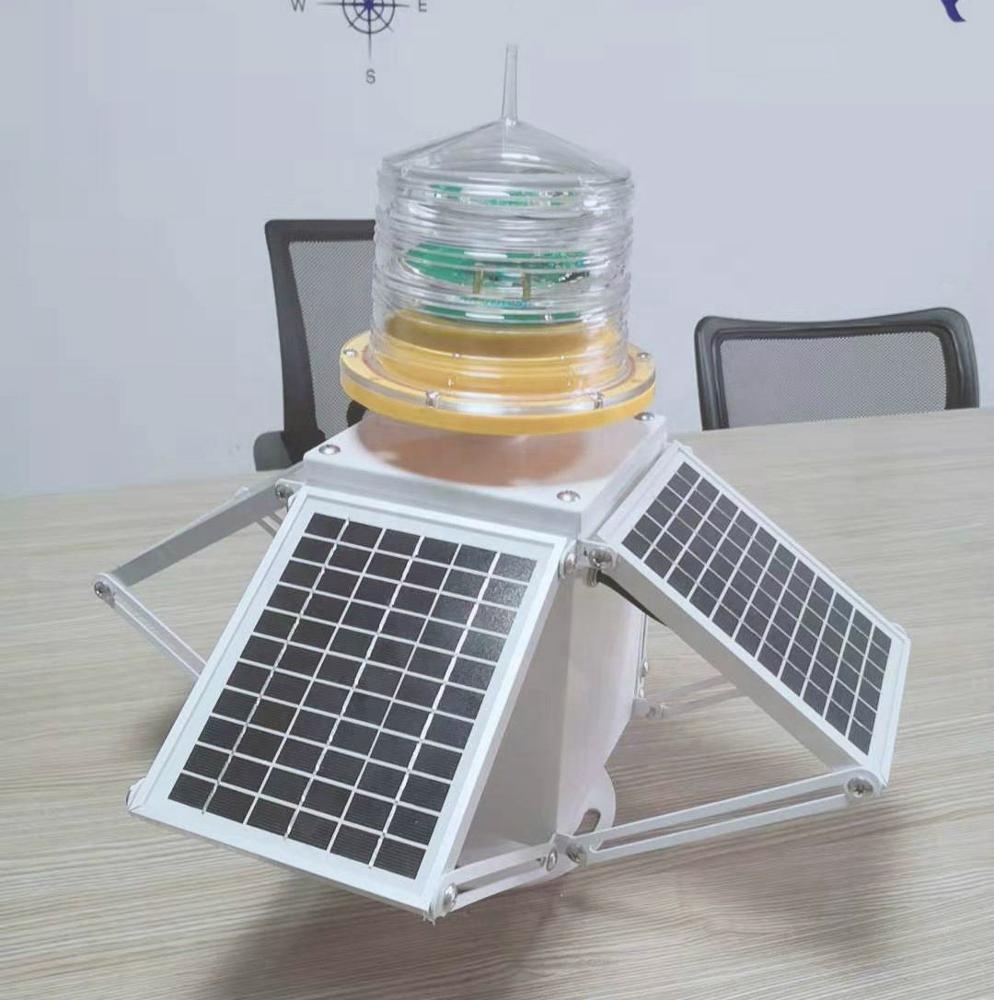

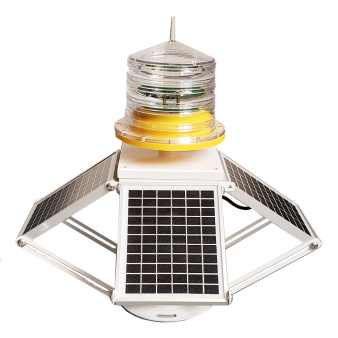

GS-MS/T portable medium intensity type B solar aviation obstruction light
Click on the image to view the original image
Product: views:6GS-MS/T portable medium intensity type B solar aviation obstruction light
Branch: Green Source
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
16.5
Lamp Power(W):
20
Lamp Luminous Flux(lm):
2000
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
Cool White
Beam Angle(°):
360
IP Rating:
IP67
Certification:
CE, FCC, RoHS
Emitting Color:
Red
Lamp Body Material:
PC
Base Type:
2G11
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
Power supply:
Mono-crystalline Silicon Solar Panel
Battery type:
Lead-acid battery
Battery capacity:
12V9AH
Working mode:
Flashing 20times/min
Emitting color:
Red
Visual Range:
≥15km
Overall Size:
260mm*260mm*420mm
Installation Size:
322mm*200mm*M8
Anti-wind Ability:
80m/s
Weight:
8kg
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
each one in bubble pack, 2 sets in carton
Port
Shenzhen
Lead Time:
Quantity(Pieces)1 - 1011 - 2021 - 50 >50
Est. Time(days)101520To be negotiated

GS-MS/T portable medium intensity type B solar aviation obstruction light





Model type:GS-MS/T



Product Overviews

Product Overviews

GS-MS/T portable medium intensity type B solar aviation obstruction light adopts advanced structure design with 4 groups of solar panels which features with angle adjustable and high efficiency, cooperated with solar dedicated Lead-acid battery as power supply.

Advanced power management system will be used to charge the power in a full protection in order to save the service life of battery if it is under the condition of short-voltage/over-voltage or temperature too high/too low.

Control circuits adopt with low power dissipation control chip, which can reduce circuit power consumption.

The light source adopts imported LED chip, which has advantage of high ligh intensity, lower power consuption, long service life and so on.

Lampshade adopts PC material, which has the ability of anti-UV, anti-shock, and corrosion resistance.

Product shell adopt 304L stainless steel materials with stoving varnish, which is lightweight and corrosion resistance and easy installation and transportation.

Product Details

Product Details

Function & Features
  • Continuous working time in rainy day can reach to more than 15days.(10 hours a day)
  • Photocell can switch ON/OFF the light in rainy days or at night automatically
  • Standard optical design, high photoelectric conversion efficiency.
  • Adopts special customized LED chip, Higher tranfer efficiency and Longer service life
  • Lead-acid battery, service life can be up to 3 years,User-replaceable
  • Lithium Iron Phosphat battery optional, better stability.
  • Good ability of Impact resistance, light fastness,  anti-lighting, anti-UV, anti-snow and rain.
  • Incorporated an enviroment-friendly spike-deterring unwelcome bird life
  • No radio frequency, no electromagnetic interference
Dimension Drawing

 Dimension Drawing






Usage Notice

Usage Notice

  • Please read the instruction carefully and then use the device correctly
  • Solar powered marine lantern must be installed in a sunny place to keep it working continuously
  • Please install this light on the installation plane that perpendicular to light axis, installation plane should has mechanical strength
  • Ensure to place the device under sunlight to recharge power 12 hours before the initial use
  • Please turn off the device and put it under sunlight for 5 days to recharge power each 3 months if stored without use

Application

  • Block
  • Bridge
  • Towers
  • Communication tower
  • Chimney
  • Runway
  • Heliport
  • Traffic barrier
  • Tower cranes
Company Information

Company Information

 Shenzhen Green Source Light Equipment Co., Ltd is specialized in independently researching, developing and manufacturing the full range of Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns and Equipment.

After 10 years development, we rank ahead in our industry in China.



Featured products

Our Certifications

Our Certifications



FAQ



FAQ

Q1:Can I have a sample order for your products?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?

A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.

Q3:Do you have any MOQ limit for Obstruction light order?

A:No limit, 1pc for sample checking is avaiable.

Q4:How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.

Q5:How to procced an order for Obstruction light?

A:Firstly let us know your requirement or appliction.

   Secondly we will quote according to your requirement or suggested appropriate products.

   Thirdly you confirm prices and check the samples.

   Fourthly you confrim order and place deposit for formal order.

   Then we will arrange the mass production for you.

Just feel free to contact us, we will effectively serve you and satisfy you.

Q6: is it OK to print my logo on Obstruction light product?

A: Yes, Please inform us formally before our production and confirm the design firstly based on our sample.

Q7:Do you offer guarantee for the products?

A:Yes. we offer 2~5years warranty on our products.

Q8:How to deal with the faulty?

A: Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.2%.

    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
