- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- AC120V, AC110V, DC48V
- Lamp Power(W):
- 150
- Lamp Luminous Flux(lm):
- 18000
- Lamp Luminous Efficiency(lm/w):
- 120
- CRI (Ra):
- 80
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- 360
- IP Rating:
- IP67
- Certification:
- CE, FCC, RoHS
- Emitting Color:
- white
- Lamp Body Material:
- PC
- Base Type:
- E27
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Source
- Standard:
- ICAO High Intensity type A&B, FAA L-856
- Working mode:
- Flashing 40~60 times/min.
- Working time:
- 24hours/day
- Light Service Life:
- 100,000 hours
- Overall size:
- 245mm x 245mm x 400mm
- Installation size:
- 180mm x180mm x m12
- Vertical degree:
- 3°~7°
- Material:
- Housing: pc, Base:die-casting
- Weight:
- 23kg
- IP standard:
- IP68
- Supply Ability:
- 5000 Piece/Pieces per Month
- Packaging Details
- each one in bubble pack, in carton
- Port
- Shenzhen
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 10 11 - 20 21 - 50 >50 Est. Time(days) 7 10 15 To be negotiated
GFAA L-856 GS-HI/O High-intensity Type A&B Aviation Obstruction warning Light
Model type:GS-HI/O type A&B
Product Overviews
FAA L-856 GS-HI/O High-intensity Type A&B Aviation Obstruction warning Light adopts structure of aluminum alloy of the lacquer that bake, it has the specific of light weight and corrosion resistance.
Light source adopts self searched and developed deicated LED chip packing, it has the feature of high light intensity, low power consumption, long service life.
Lampshade adopts borosilicate glass, which has super power of corrosion resistance, anti-UV, anti-Shock.
Control circuit has strong lighting protection and anti-surge protection, which can adapt to extremely bad working enviroment.
this equipment contains lots of working mode and can be customized.
Product Details
Function & Features
- Advanced optical lens design, emitting angle compliance to FAA standard.
- Come with automaic light-control function, it can change light intensity level on daytime ,rainy day and at night.
- LED light source, its service life can be up to 100,000 hours.
- Low voltage design, high safety for maintenance and utilization.
- Anti-shock, anti-lighting, light fastness, anti-sleet, resist typhoons, tough weather.
- Adopts constant current circuit design, longer service life.
- Adopts changeable LED light source, low maintenance.
- No radio frequency, no electromagnetic interference.
- Adopts transparent glass cover which has the characteristics of high transmittance and chemical resistance, under the bad environment there will be no discoloration and cracking phenomenon.

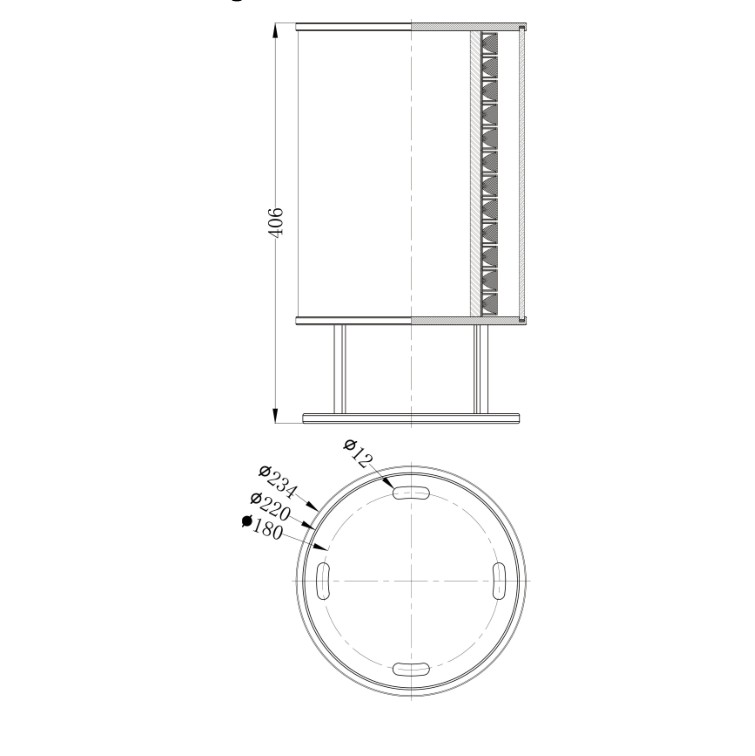

Dimension Drawing
Usage Notice
- Please read the instruction carefully and then use the device correctly
- Solar powered marine lantern must be installed in a sunny place to keep it working continuously
- Please install this light on the installation plane that perpendicular to light axis, installation plane should has mechanical strength
- Ensure to place the device under sunlight to recharge power 12 hours before the initial use
- Please turn off the device and put it under sunlight for 5 days to recharge power each 3 months if stored without use
Application
- Block
- Bridge
- Towers
- Communication tower
- Chimney
- Runway
- Heliport
- Traffic barrier
- Tower cranes
