Click on the image to view the original image
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 16.5V
- Lamp Power(W):
- 100
- Lamp Luminous Flux(lm):
- 12000
- Lamp Luminous Efficiency(lm/w):
- 120
- CRI (Ra):
- 80
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- 360
- IP Rating:
- IP67
- Certification:
- CE, FCC, RoHS
- Emitting Color:
- white
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- 2G11
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Source
- Light intensity:
- 2,000cd ~100,000cd
- Working mode:
- Flashing 40~60 times/min.
- Working time:
- 24 hours/day
- Service Life:
- Not less than 20 years
- Battery type:
- Replaceable solar lead-acid battery
- Vertical Divergence:
- 3°
- Installation size:
- Pitch circle 270mm distributed 4M8 holes
- Ambient Temperature:
- -40 ~70 degree
- Anti-wind ability:
- 80m/s
- Standard:
- ICAO Annex 14, FAA L-857
- Supply Ability:
- 5000 Piece/Pieces per Month
- Packaging Details
- each one in bubble pack, in carton.
- Port
- Shenzhen
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 10 11 - 20 21 - 50 >50 Est. Time(days) 7 10 15 To be negotiated
GS-HI/BT high intensity type B solar aviation obstruction warning light
Model type:GS-HI/BT
Product Overviews
GS-HI/BT high intensity type B solar aviation obstruction warning light adopts low-light but high efficient solar panels integrated design, cooperate with solar lead-acid battery as power supply. The battery adopts advance power management system, which can provide good protection when battery"s voltage and temperature too high or too low, so it can improve the batterr"s service life.
Control circuit adopts micro-power consumption single controlling chip, which can accurately control battery"s charge & discharge statue and reduce its power consumption.
Light source adopts high efficient LED chip, which has advantage of high light intensity, low power consuption, long service life and so on.
Lampshade adopts glass material, which has the ability of anti-UV, anti-shock, and corrosion resistance.
With portable design, it is easy to carry and tranport, especially suitable for temporary channel, airport runway, the towel, etc.
Product Details
Function & Features
- Continuous working time in rainy day can reach to more than 15days.(10 hours a day)
- Photocell can switch ON/OFF the light in rainy days or at night automatically
- Standard optical design, high photoelectric conversion efficiency.
- Adopts special customized LED chip, Higher tranfer efficiency and Longer service life
- Lead-acid battery service life can be up to 3 years,User-replaceable, low-maintenance.
- Good ability of Impact resistance, light fastness, anti-lighting, anti-UV, anti-snow and rain.

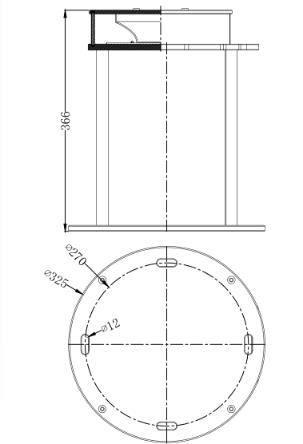

Dimension Drawing
Usage Notice
- Please read the instruction carefully and then use the device correctly
- Solar powered marine lantern must be installed in a sunny place to keep it working continuously
- Please install this light on the installation plane that perpendicular to light axis, installation plane should has mechanical strength
- Ensure to place the device under sunlight to recharge power 12 hours before the initial use
- Please turn off the device and put it under sunlight for 5 days to recharge power each 3 months if stored without use
Application
- Block
- Bridge
- Towers
- Communication tower
- Chimney
- Runway
- Heliport
- Traffic barrier
- Tower cranes
