Home > Products > GS-HP/B IP68 High Visibility LED Heliport programmable locating Beacon

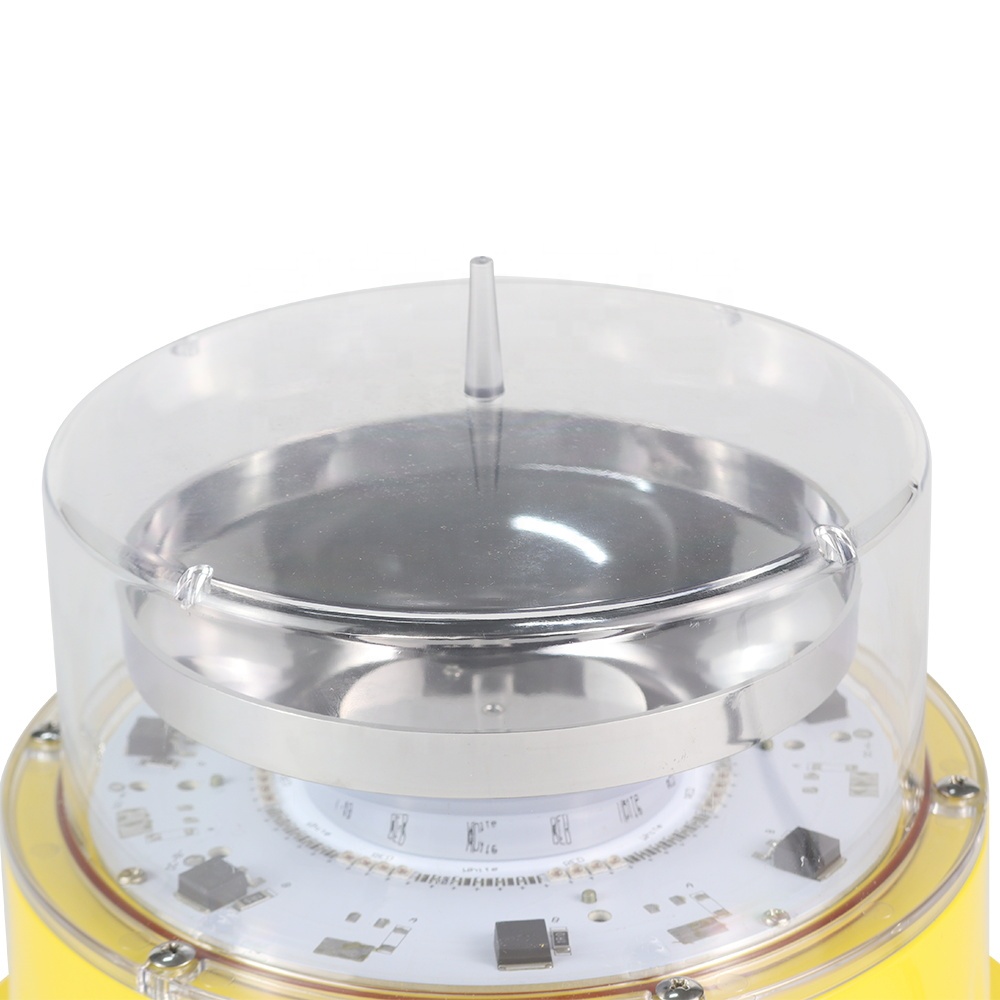

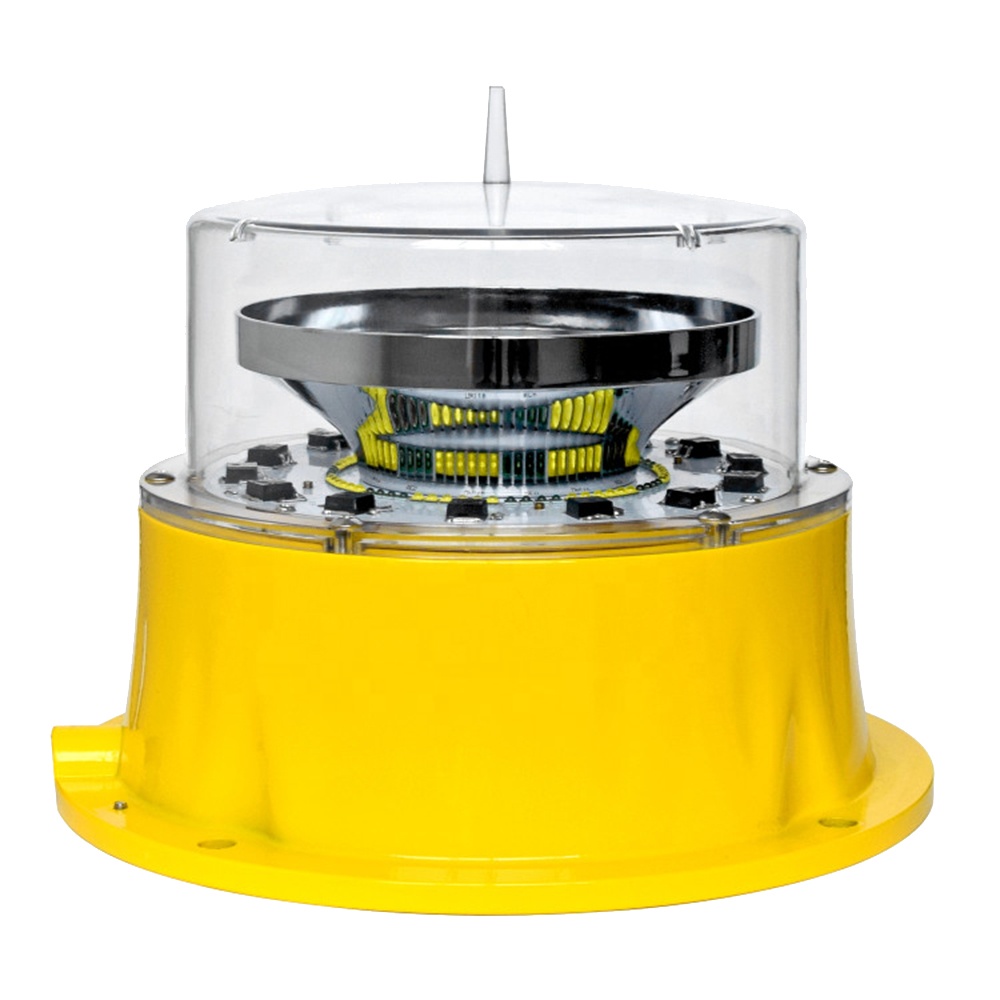

GS-HP/B IP68 High Visibility LED Heliport programmable locating Beacon
Click on the image to view the original image
Product: views:7GS-HP/B IP68 High Visibility LED Heliport programmable locating Beacon
Branch: Green Source
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V, AC120V, DC48V
Lamp Power(W):
20
Lamp Luminous Flux(lm):
2000
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
Cool White
Beam Angle(°):
360
IP Rating:
IP68
Certification:
CE, RoHS
Emitting Color:
white
Lamp Body Material:
Aluminum Alloy
Base Type:
AR111
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
Power supply Frequency:
50HZ~60HZ
Working mode:
Steady Burning
Light Intensity:
2500cd
Light Source Service Life:
100,000 hours
Overall size:
255mm(D) * 210mm(H)
Installation Size:
234mm x M8
Ambient Temperature:
-50degree to 65degree
Net Weight:
3.8Kg
Altitude:
not higher than 4500m
IP standard:
IP68
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Selling Units: Single item
Single package size:30X30X25 cm
Single gross weight: 4.5 kg
Package Type: Standard export package
Port
Shenzhen
Lead Time:
Quantity(Pieces)1 - 12 - 2021 - 100 >100
Est. Time(days)71525To be negotiated

GS-HP/B IP68 High Visibility LED Heliport programmable locating Beacon

Model Type: GS-HP/B



Product Overviews

Product Overviews

GS-HP/B IP68 High Visibility LED Heliport programmable locating Beacon is die-casted with high intensity aviation aluminum with full sealed structure.

Light source adopts high efficient CREE chip and cooperate with patented condensing lens, which service life can be up to 20 years, high light intensity.

Lampshade adopts PC, which has strong ability of corrosion resistance, anti-UV, anti-shock.

Controlling circuit has strong ability of light protection, with strong anti-surge protection device, it can adapt to extremely bad working environment.

This light can emit white color signal night and low visibility daytime.

Product Details

Product Details

Function & Features

Function & Features

  • The shell adopts high intensity aviation aluminum to cast, with full-seal structure.
  • With CREE chip, which has the specific of high light intensity, low power consumption, long service life.
  • Patened condensing lens, the emitting angle compliant to the standard of FAA, ICAO.
  • Lamp shade adopts tempered PC material, which has strong ability of corrosion resistance, anti-UV, anti-shock.
  • With anti-surge protection device, it can adapt to extremely bad working environment.
  • Adopts advanced technology of stoving varnish, which provide excellent heating dispersion.
  • Over-current protection function.
Dimension Drawing

Dimension Drawing



Usage Notice

Usage Notice

  • Don"t use any out of nominal voltage, or will destroy equipment.
  • Don"t open it if the device is out of operation, or will be hurt by the internal high pressure.
  • After finished the installation, the personel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
  • Non-professional workers can not do the device maintenance, so as not to expand the error and be hurt.
Appliction

Application

  • Heliport Identification
Company Information

 Company Information

Shenzhen Green Source Light Equipment Co., Ltd is specialized in independently researching, developing and manufacturing the full range of Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns and Equipment.

We provide full series solutions from Research to Production. We insist on offering high quality Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns. All those products compliance to ICAO Annex 14, FAA standard, MH/T6012-2015 standard, etc. We produce High intensity/ Medium intensity / Low intensity LED & Solar Powered Aviation Obstruction Light. And Heliport or Helideck light includes aiming point light, Beacon, Insert & Elevated FATO Perimeter light, Taxiway Edge light, Guidence light, Lighted wind cone & Surface Floodlights. We design, produce and supply all these products and own some our patented inventions.

After 10 years development, we rank ahead in our industry in China.



Featured Products

Our Certifications

FAQ

 FAQ

Q1:Can I have a sample order for your products?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?

A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.

Q3:Do you have any MOQ limit for Obstruction light order?

A:No limit, 1pc for sample checking is avaiable.

Q4:How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.

Q5:How to procced an order for Obstruction light?

A:Firstly let us know your requirement or appliction.

   Secondly we will quote according to your requirement or suggested appropriate products.

   Thirdly you confirm prices and check the samples.

   Fourthly you confrim order and place deposit for formal order.

   Then we will arrange the mass production for you.

Just feel free to contact us, we will effectively serve you and satisfy you.

Q6: is it OK to print my logo on Obstruction light product?

A: Yes, Please inform us formally before our production and confirm the design firstly based on our sample.

Q7:Do you offer guarantee for the products?

A:Yes. we offer 2~5years warranty on our products.

Q8:How to deal with the faulty?

A: Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.2%.

    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
