- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- AC220V, AC120V, DC24V
- Lamp Power(W):
- 20
- Lamp Luminous Flux(lm):
- 100%
- Lamp Luminous Efficiency(lm/w):
- 124
- CRI (Ra):
- 222
- Color Temperature(CCT):
- Pure White
- Beam Angle(°):
- 360
- IP Rating:
- IP65
- Certification:
- CE, FCC, RoHS
- Emitting Color:
- White
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- 2G11
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green & Source
- Supply Frequency:
- 50HZ~60HZ
- Working Mode:
- Steady burning
- Intensity:
- ≥300cd
- Light Source Service life:
- ≥10 years
- Overall Size:
- D165mmx241mm
- Installation Size:
- D93mm X M10
- Ambient Temperature:
- -20℃~60℃
- Weight:
- 1.8kg
- Humidity:
- <95%
- IP Protection:
- IP 65
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- Each on in bubble pack, then in small carton, 8 pcs in a big carton
- Port
- Shenzhen
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 5 6 - 20 21 - 50 >50 Est. Time(days) 8 10 20 To be negotiated

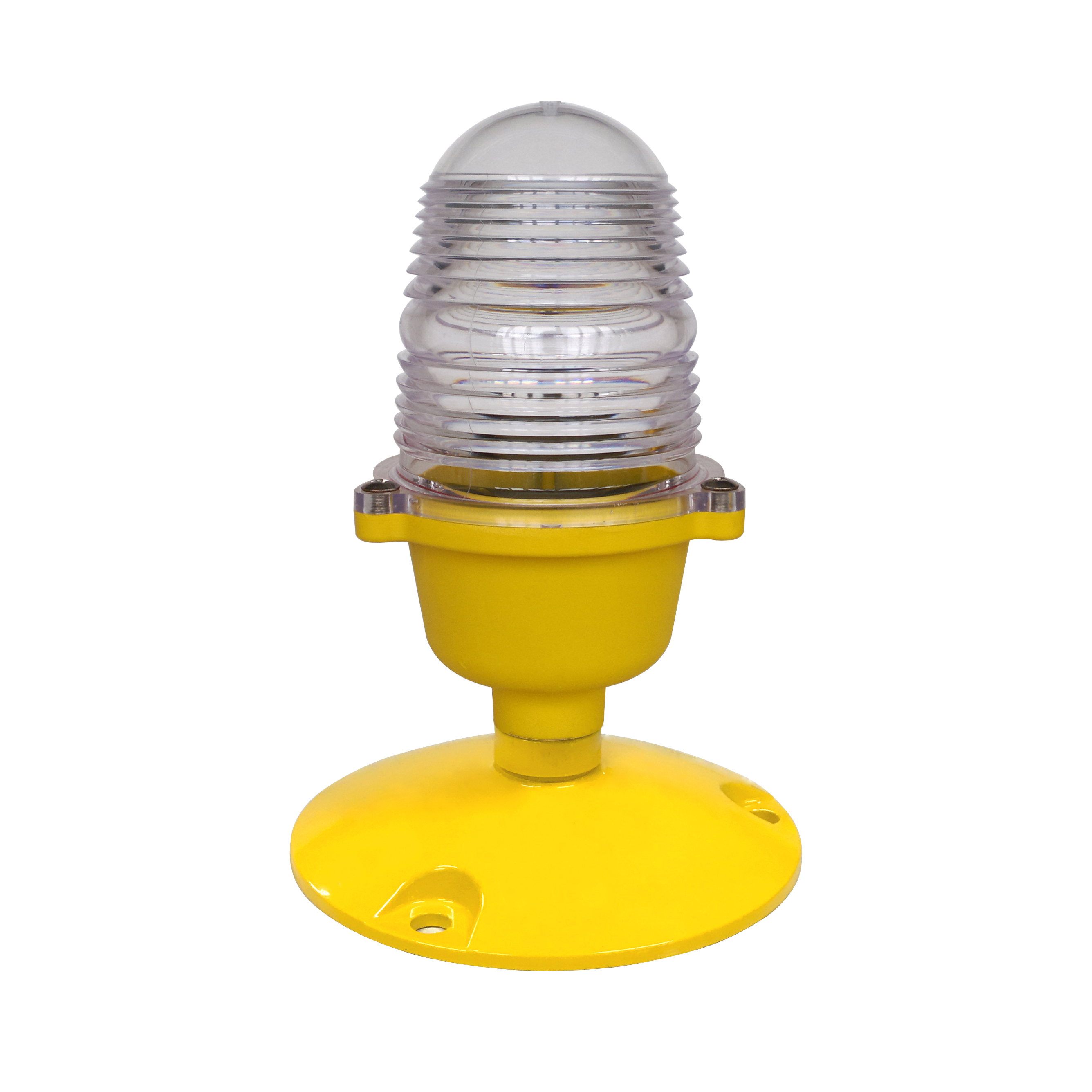

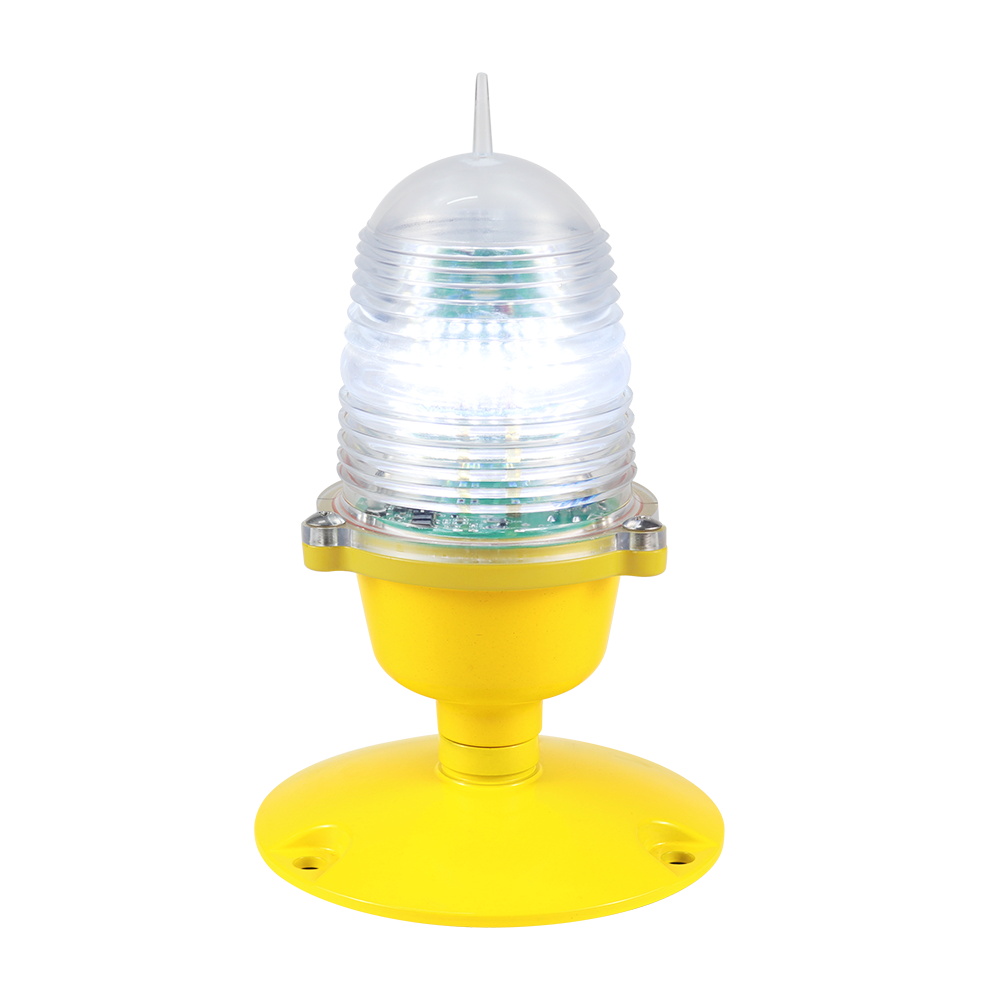

GS-HP/L Heliport Approaching, landing direction signal white light
Model Type: GS-HP/L
Product Overviews
GS-HP/L Heliport Approaching, landing direction signal white light adopts aviation aluminum die-casting, which feature with light weight and corrosion resistance.
Light source adopts dedicated LED chip and fully sealed structure, which has the specific of high light intensity, low power consumption, long service life.
Lampshade adopts PC material that has strong ability of corrosion resistance, anti-UV, anti-shock.
Control circuit comes with anti-shock and anti-surge device, so that it workable on bad working environment.
Product Details
Function & Features
- Work Stability, strong anti-interference ability and anti-shock
- Full sealed structure base, with superior waterproof performance
- Come with anti-surge protection device
- Special LED chips, with high light intensity, low power consumption and long service life.
- Transformer isolation step-down, an electrical work in low voltage circuit will save the service life of light source.
- Easy to fold protection design, can reduce the secondary damage to helicopters.
- Arc adjustable design in chassis mounting holes, easy to install.
- PC material cover, provides corrosion resistance and UV protection.
Dimension Drawing
Usage Notice
- Don"t use out of standard voltage, or will destroy the device.
- Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
- After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
- Non-professional workers can not do the device maintenance, so as not to expand the error or be hurt.
Application
- Heliport Approach, Taxiway/Apron Edege, FATO and TLOF
- Heliport Perimeter
Company Information
Shenzhen Green Source Light Equipment Co., Ltd is specialized in independently researching, developing and manufacturing the full range of Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns and Equipment.
We provide full series solutions from Research to Production. We insist on offering high quality Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns. All those products compliance to ICAO Annex 14, FAA standard, MH/T6012-2015 standard, etc. We produce High intensity/ Medium intensity / Low intensity LED & Solar Powered Aviation Obstruction Light. And Heliport or Helideck light includes aiming point light, Beacon, Insert & Elevated FATO Perimeter light, Taxiway Edge light, Guidence light, Lighted wind cone & Surface Floodlights. We design, produce and supply all these products and own some our patented inventions.
After 10 years development, we rank ahead in our industry in China.
Certifications
Related Products
FAQ
Q1:Can I have a sample order for your products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.
Q3:Do you have any MOQ limit for Obstruction light order?
A:No limit, 1pc for sample checking is avaiable.
Q4:How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.
Q5:How to procced an order for Obstruction light?
A:Firstly let us know your requirement or appliction.
Secondly we will quote according to your requirement or suggested appropriate products.
Thirdly you confirm prices and check the samples.
Fourthly you confrim order and place deposit for formal order.
Then we will arrange the mass production for you.
Just feel free to contact us, we will effectively serve you and satisfy you.
Q6: is it OK to print my logo on Obstruction light product?
A: Yes, Please inform us formally before our production and confirm the design firstly based on our sample.
Q7:Do you offer guarantee for the products?
A:Yes. we offer 2~5years warranty on our products.
Q8:How to deal with the faulty?
A: Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
