Click on the image to view the original image
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 6.4V
- Lamp Power(W):
- 3
- Lamp Luminous Flux(lm):
- 300
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 80
- Beam Angle(°):
- 360
- IP Rating:
- IP65
- Certification:
- CE, EMC, LVD, RoHS
- Emitting Color:
- Blue
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- BA9s
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green & Source
- Supply Frequency:
- 50HZ~60HZ
- Working Mode:
- Steady burning
- Intensity:
- ≥25cd
- Light Source Service life:
- ≥20 years
- Overall Size:
- 186mmx245mm
- Installation Size:
- D145mm X M10
- Ambient Temperature:
- -20℃~60℃
- Weight:
- 1.4kg
- Humidity:
- <95%
- IP Protection:
- IP 65
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- Each on in bubble pack, then in small carton, 8 pcs in a big carton
- Port
- Shenzhen
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 5 6 - 20 21 - 50 >50 Est. Time(days) 8 10 20 To be negotiated

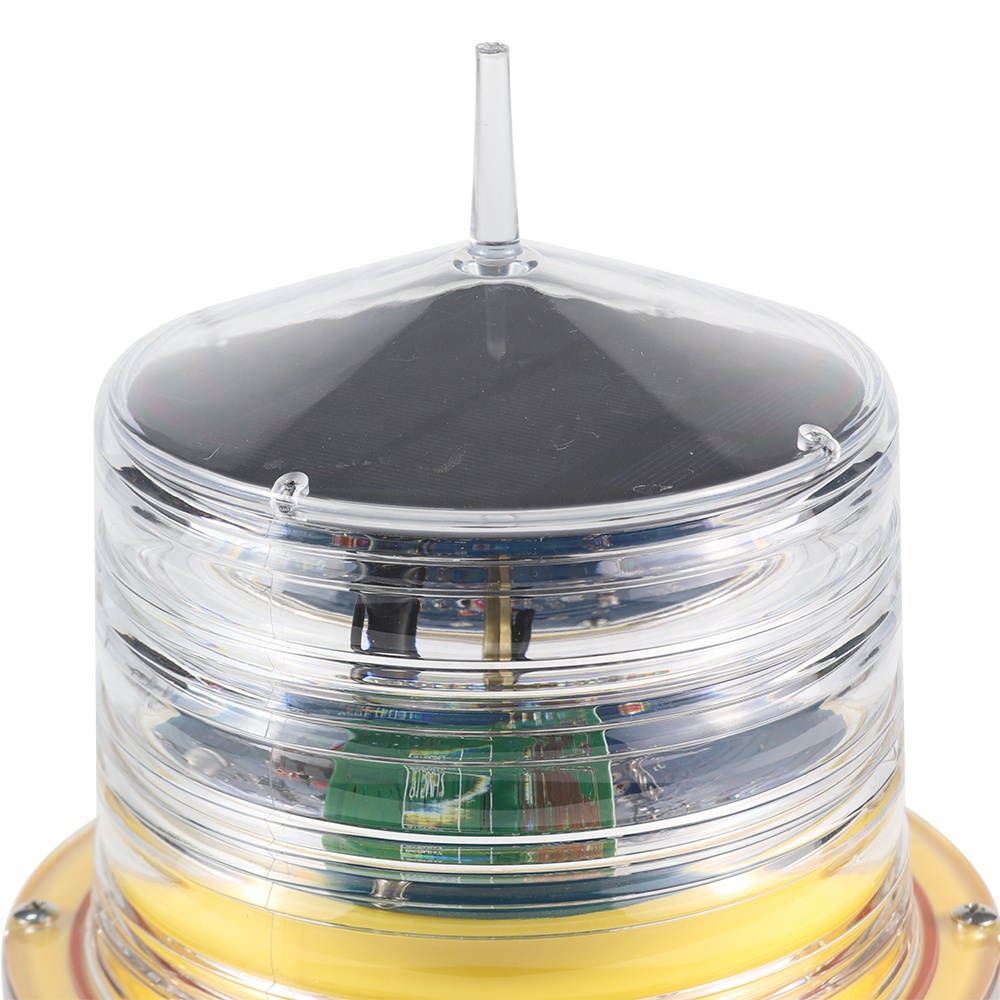

GS-HP/HB Solar Powered Heliport Elevated taxiway edge Blue Light
Model type:GS-HP/HB
Product Overviews
GS-HP/HB Solar Powered Heliport Elevated taxiway edge Blue Light adopts high intensity injection molding material, with excellent specific of waterproof and anti-aging.
Inner adopts LED light source cooperated with advanced optical lens design, which emitting angle compliant to FAA standard.
This product can signal the heliport taxiway edge, which send out omnidirectional blue(or red) light at low visibility daytime and night, that shows the taxiway direction and location.
Product Details
Function & Features
- Work Stability, Strong anti-interference ability and anti-shock.
- Full sealed structure base, with superior waterproof performance.
- Come with anti-surge protection device.
- Professional custom LED chips, which has the specific of high light brightness and long service life.
- Transformer isolation step-down, all electrical work in low voltage circuit can save the service life of light source.
- Easy to fold design, can reduce the secondary damage to helicopters.
- Arc adjustable design in chassis mouting holes, easy to install.
- PC material cover, provides corrosion resistance and UV protection.

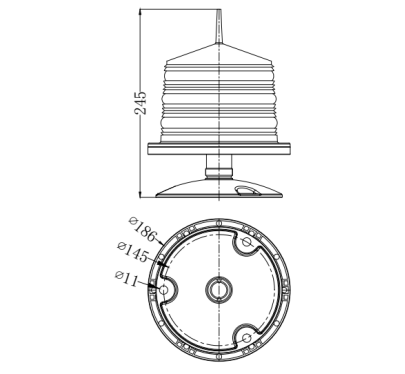

Dimension Drawing
Usage Notice
- Don"t use any out of nominal voltage, or will destroy equipment.
- Don"t open it if the device is out of operation, or will be hurt by the internal high pressure.
- After finished the installation, the personnel must check whether the device is in a good waterproof condition and whether the screw spikes are tightened.
- Non-professional workers cannot do the device maintenance, or will expand the error and be hurt.
Application
- Type I, II, III airport taxiway edge light runway light.
- Heliport taxiway edge light
