- Input Voltage(V):
- 120-277V
- Lamp Luminous Flux(lm):
- 4200
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -20 - 50
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP20
- Certification:
- BV, CE, ETL, FCC, RoHS
- Place of Origin:
- Guangdong, China
- Brand Name:
- OKT LIGHTING
- Model Number:
- DP4-DM-XXX
- Application:
- office
- Light Source:
- LED
- Warranty(Year):
- 5-Year
- Lamp Luminous Efficiency:
- 105 lm/w
- Size Options:
- 4FT, 8FT
- DLC CCT Options:
- 3000K,3500K,4000K 5000K
- Function available:
- 0-10V Dimming
- Driver:
- Internal driver
- Mounting:
- suspended
- Product Name:
- Linear Flat Led Panel
- Supply Ability:
- 30000 Piece/Pieces per Month
- Packaging Details
- QTY /Carton:2PCS 40w linear flat led panel
G.W: 13.28KG
Carton Size:134*40*15cm
- Port
- Shenzhen

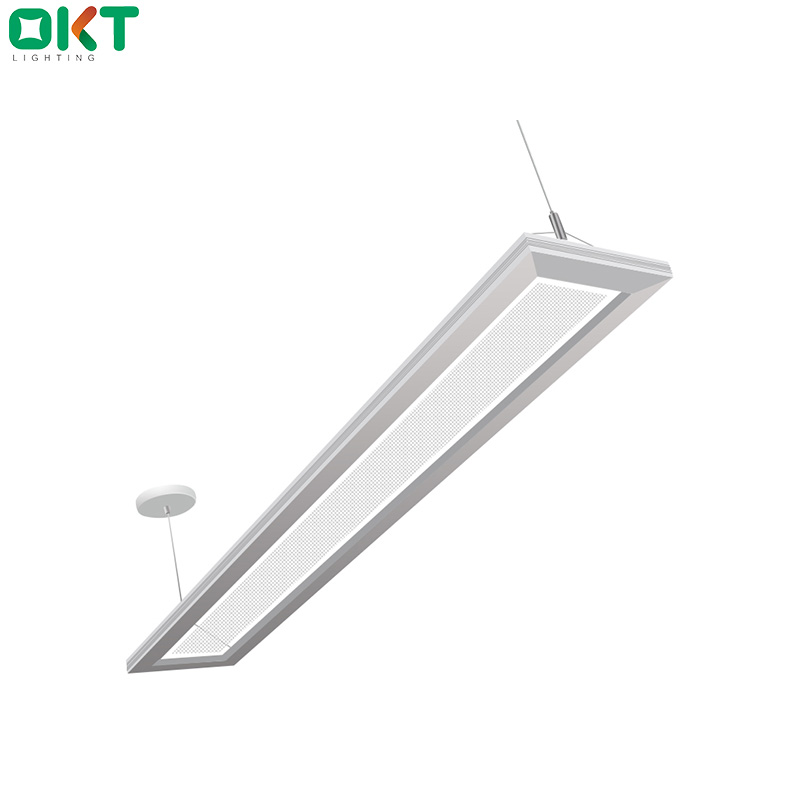

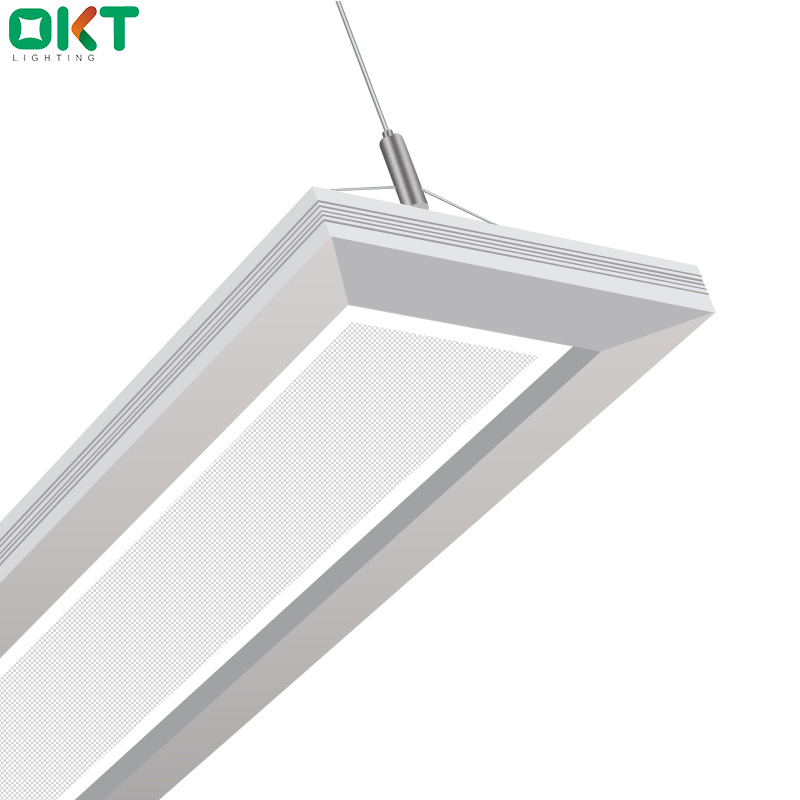

OKT Top&bottom lighting distribution 4ft 40W ETL modern office led pendant light
The suspended Up/down LED luminaire is an architectural lighting solution for commercial and public places. The unique design is nearly transparent when off and create a harmonious atmosphere when on, with 55% Downlight and 45% Uplight distribution. The Panels are certificated by ETL and UL, and support 0~10V dimming.
Efficacy: 105LPW
Size Options: 4ft, 8ft
Input Power: 40 Watts (4"), 54Watts (4"), 80Watts (8")
Input Voltage: 100-277V AC or 200-240V AC
CRI: Ra>80
DLC CCT Options: 3500K/4000K/5000K
Standard Warranty: 5 Years
L70 hrs: L70>50000 hrs
Mounting: Suspended
- 45% Uplight, 55% Downlight
- Transparent Optics
The unique design is nearly transparent luminaire when off and no direct or indirect
view of the light source with transparent optics when on.
- Pleasing Lighting, UGR <19
- Seamless Continuous Runs
No electrical connections at fixture joints, creating virtually seamless continuous runs
that are simple to install and speed construction.
Applicate
Profession
Shenzhen OKT Lighting CO.,Ltd, Founded in 2008;
Specialized in researching, manufacturing and sales of commercial LED lighting fixtures, include panel lights, troffers, downlights, linear pendant fixtures and LED emergency drivers;
All have achieved certifications such as UL, ETL, Energy Star, DLC, TITLE 24, TÜV, CSA, SASO and FCC;
A minimum five-year warranty.
Focus
Focus entirely on the North American market and in just a few years it has already gained a firm footing in this market;
Focused on R&D, producing LED products that are more energy-efficient, cost-effective and aesthetically pleasing than those already on the market;
Focus on quality control, We take more than just quality products for manufacturers to thrive.
