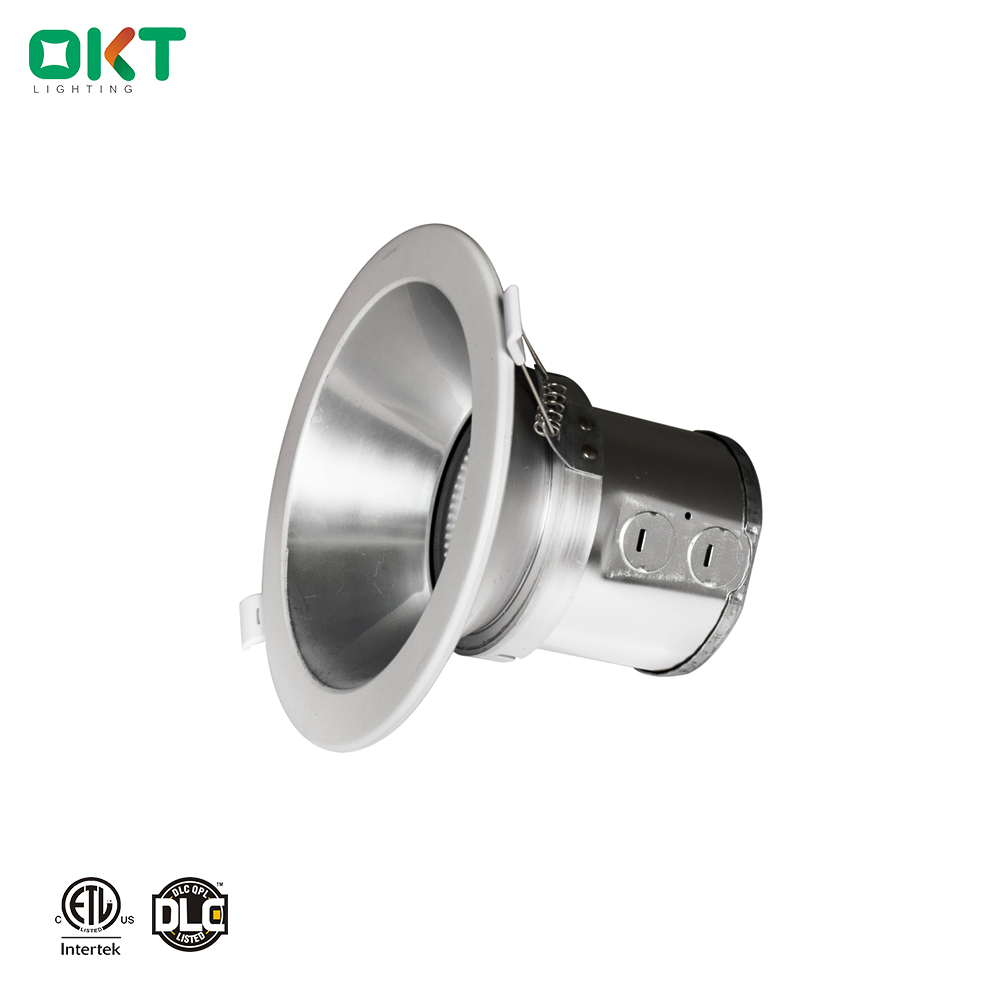

OKT's 6inch split LED commercial downlight series are available in 9W, 15W and 20W. The innovative separable design of junction box and trim makes it more flexible. Easy-fit installation comes from the adjustable butterfly clips. It is designed and engineered for recessed applications, which is suitable for commercial and public places and elegantly decorates the ambience, such as shopping mall, hospital, airport, hotel lobby etc.
Description
Structures
Performance
Model | CPX-D10W-XXX | CPX-D15W-XXX | CPX-D20W-XXX |
Size Options | 4"6"8" | 4" 6" 8" | 4"6"8" |
Input Power | 10W | 15 W | 20W |
Luminous Flux | 780 lm | 1215 lm | 1580 lm |
Input Voltage | 120-347V AC | 120-347V AC | 120-347V AC |
L70 hrs | >50000 hrs | >50000 hrs | >50000 hrs |
Mounting | Recessed | Recessed | Recessed |
CRI | Ra>80 | Ra>80 | Ra>80 |
Cut Size | 4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max | 4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max | 4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max |
Certificate | UL Listed, Energy Star, LM79 Report | UL Listed, Energy Star, LM79 Report | UL Listed, Energy Star, LM79 Report |
Damp Rated | YES | YES | YES |
Dimensions
4INCH
6INCH
8INCH
Features & Benefits

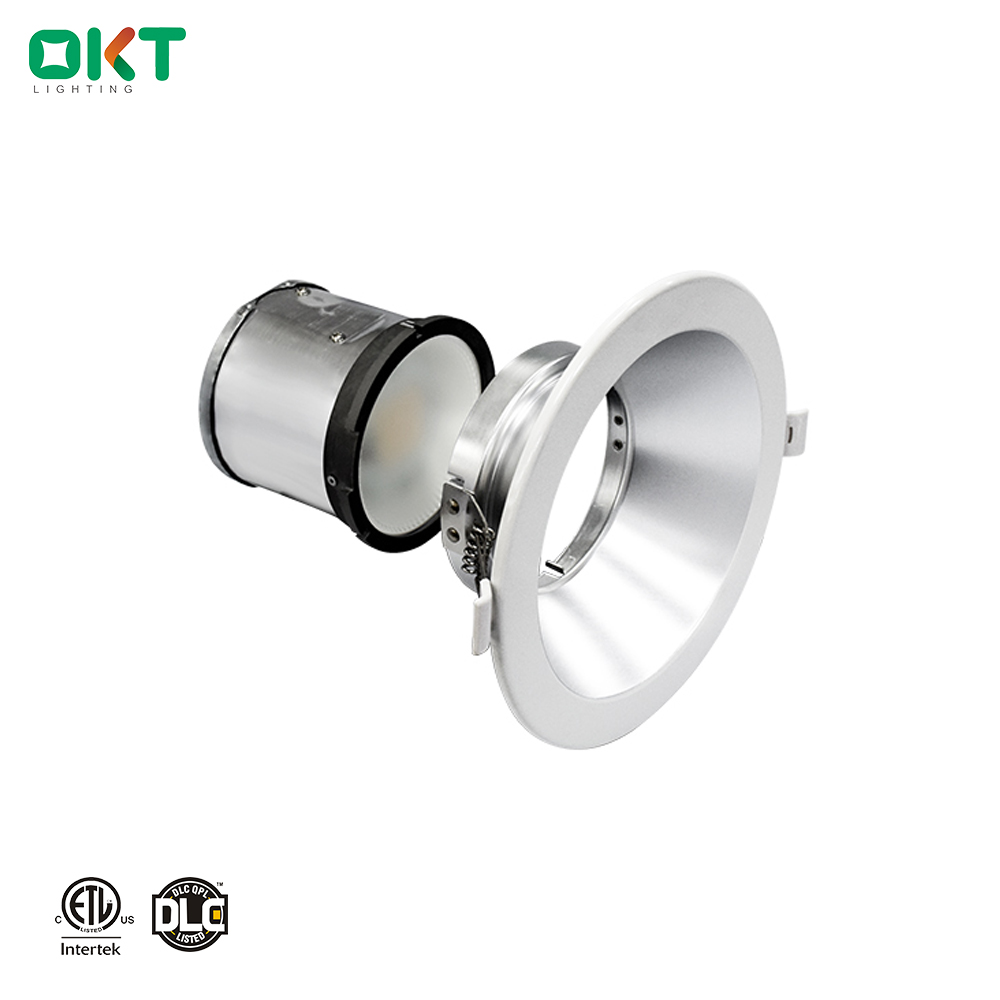

1. Lower Stock Risk By Split Design
Split design can reduce inventory. One engine allows for seamless integration of multiple trim options with easy and tool-free installation.
2. Saving Shipping Costs
We offer 2 package options: one is the whole lamp package, and the other is the separate package (engines and trims).
3. No Cans - Saving Job Site Cost
The innovative design of split downlights integrate junction box and with installation clamps, making it save the housing fixtures for new construction.
4. Aesthetically Pleasing Lighting
Beam Angle: 65 degrees for 4", 70 degrees for 6", 75 degrees for 8"
Applications
Economical Commercial Solutions for Recessed Application
HOT Products
VERTICAL LINEAR LIGHTING
LED EMERGENCY BATTERY PACK
COMMERCIAL DOWNLIGHT
Certifications
Our Company
Profession
Shenzhen OKT Lighting CO.,Ltd, Founded in 2008;
Specialized in researching, manufacturing and sales of commercial LED lighting fixtures, include panel lights, troffers, downlights, linear pendant fixtures and LED emergency drivers;
All have achieved certifications such as UL, ETL, Energy Star, DLC, TITLE 24, TÜV, CSA, SASO and FCC;
A minimum five-year warranty.
Focus
Focus entirely on the North American market and in just a few years it has already gained a firm footing in this market;
Focused on R&D, producing LED products that are more energy-efficient, cost-effective and aesthetically pleasing than those already on the market;
Focus on quality control, We take more than just quality products for manufacturers to thrive.
