Home > Products > 40w dimmable architectural suspension CCT adjustable led panel light

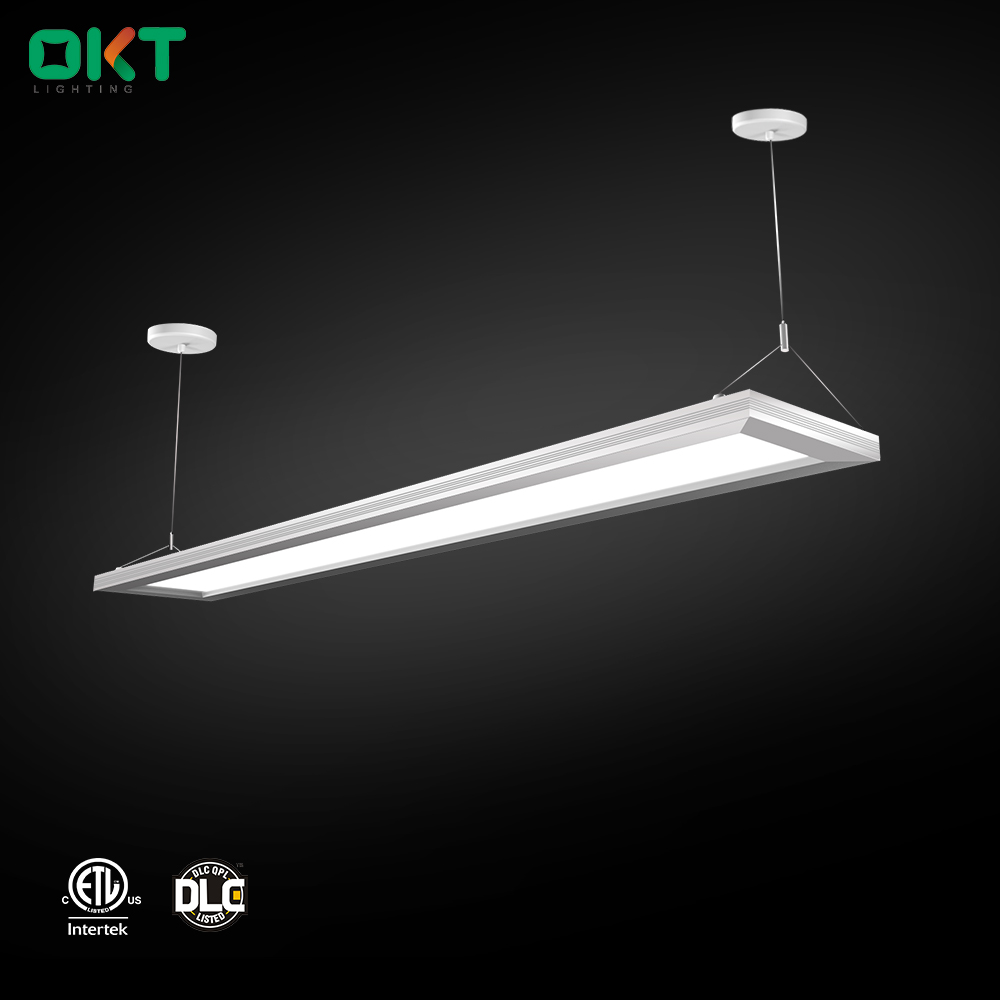

40w dimmable architectural suspension CCT adjustable led panel light
Click on the image to view the original image
Product: views:440w dimmable architectural suspension CCT adjustable led panel light
Branch: OKT LIGHTING
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 19:57
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
100-277V
Lamp Luminous Flux(lm):
4200
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP20
Certification:
BV, CE, ETL, FCC
Place of Origin:
Guangdong, China
Brand Name:
OKT LIGHTING
Model Number:
DP4-DM-XXX
Application:
Residential
Light Source:
LED
Warranty(Year):
5-Year
Lamp Luminous Efficiency(lm/w):
105
Power Options:
40W, 54W, 80W
UGR:
<19
Size Options:
8inchx4ft, 1X4ft, 8inchx8ft
DLC CCT Options:
3000K,3500K,4000K 5000K
Function available:
0-10V Dimming
Driver:
Internal driver
Mounting type:
suspended
Certificate:
ETL,DLC,LM79
Product Name:
cct adjustable led panel
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
QTY /Carton:2PCS cct adjustable led panel
G.W: 13.28KG
Carton Size:134*40*15cm
Port
Shenzhen

OKT Lighting 40w dimmable architectural suspension CCT adjustable led panel light



Product Description

The color temperature changing suspended Up/down LED lighting fixture is an architectural lighting solution for commercial and public places. The unique design is nearly transparent when off and create a harmonious atmosphere when on, with 55% Downlight and 45% Uplight distribution. The Panels are certificated by ETL and UL, and support 0~10V dimming.



Performance

Model NumberSizeInput PowerEfficacyInput VoltageCRICertificate
DP4-DM-XXX

8inch*4ft

(200x1200mm)

40W105 lm/w

100-277V AC

200-240V AC

80ETL, DLC, CE
DE14-DM-XXX

1X4FT

300X1200mm

54W105 lm/w

100-277V AC

200-240V AC

80ETL, DLC
DP8-DM-XXX

1X8FT

300X2400mm

80W105 lm/w

100-277V AC

200-240V AC

80ETL, DLC, CE


DLC CCT Options: 3500K/4000K/5000K, 3000-4000K CCT adjuctable
Standard Warranty: 5 Years
L70 hrs: L70>50000 hrs
Mounting: Suspended

FEATURES & BENEFITS

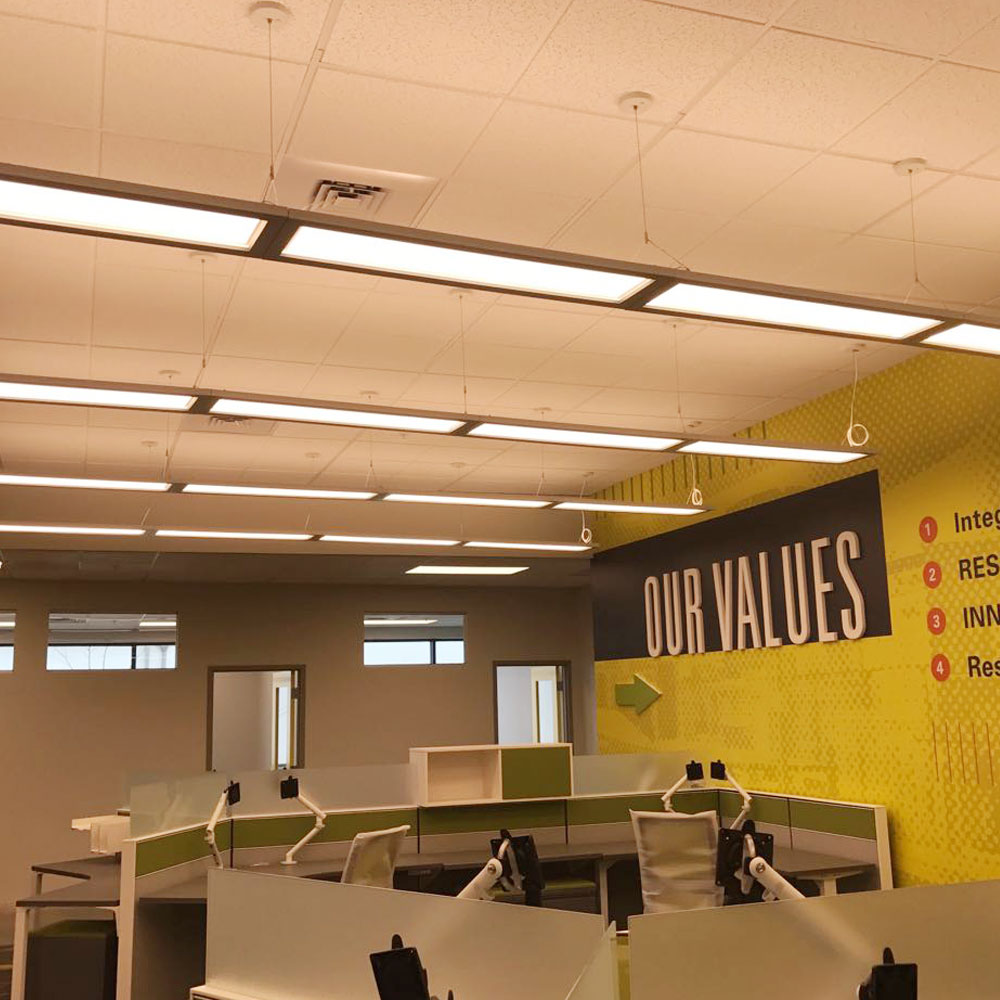

Applications





Company Information



Shenzhen OKT Lighting CO.,Ltd, Founded in 2008;
Specialized in researching, manufacturing and sales of commercial LED lighting fixtures, include panel lightstroffersdownlights, linear pendant fixtures and LED emergency drivers;
All have achieved certifications such as UL, ETL, Energy Star, DLC, TITLE 24, TÜV, CSA, SASO and FCC;
A minimum five-year warranty.

Focus
Focus entirely on the North American market and in just a few years it has already gained a firm footing in this market;
Focused on R&D, producing LED products that are more energy-efficient, cost-effective and aesthetically pleasing than those already on the market;
Focus on quality control, We take more than just quality products for manufacturers to thrive.
