Overview
Quick Details
- Light Source:
- LED
- Input Voltage(V):
- 100-277V
- Lamp Luminous Flux(lm):
- 1580
- CRI (Ra>):
- 80
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum Alloy
- Certification:
- Energy Star, UL
- Model Number:
- CP8-D20W-XXX
- Place of Origin:
- Guangdong, China
- Brand Name:
- OKT Lighting
- Application:
- Residential, Suitable for Damp locations
- Install Style:
- Embeded
- Switch Type:
- Touch On/Off Switch
- Warranty(Year):
- 5-Year
- Lamp Luminous Efficiency(lm/w):
- 79
- Wattage Options:
- 10W 15W 20W
- ES Color Option:
- 3000K,3500K, 4000K,5000K
- Dimmable:
- Non Dimming/0-10V Dimming
- colors:
- Silver gray
- Certificate:
- cULus/Energy Star
- Product name:
- recesssed led downlight
Supply Ability
- Supply Ability:
- 30000 Piece/Pieces per Month led downlight
Packaging & Delivery
- Packaging Details
- Standard export box and carton or as client's design
For details,pls see our order information
- Port
- SHENZHEN

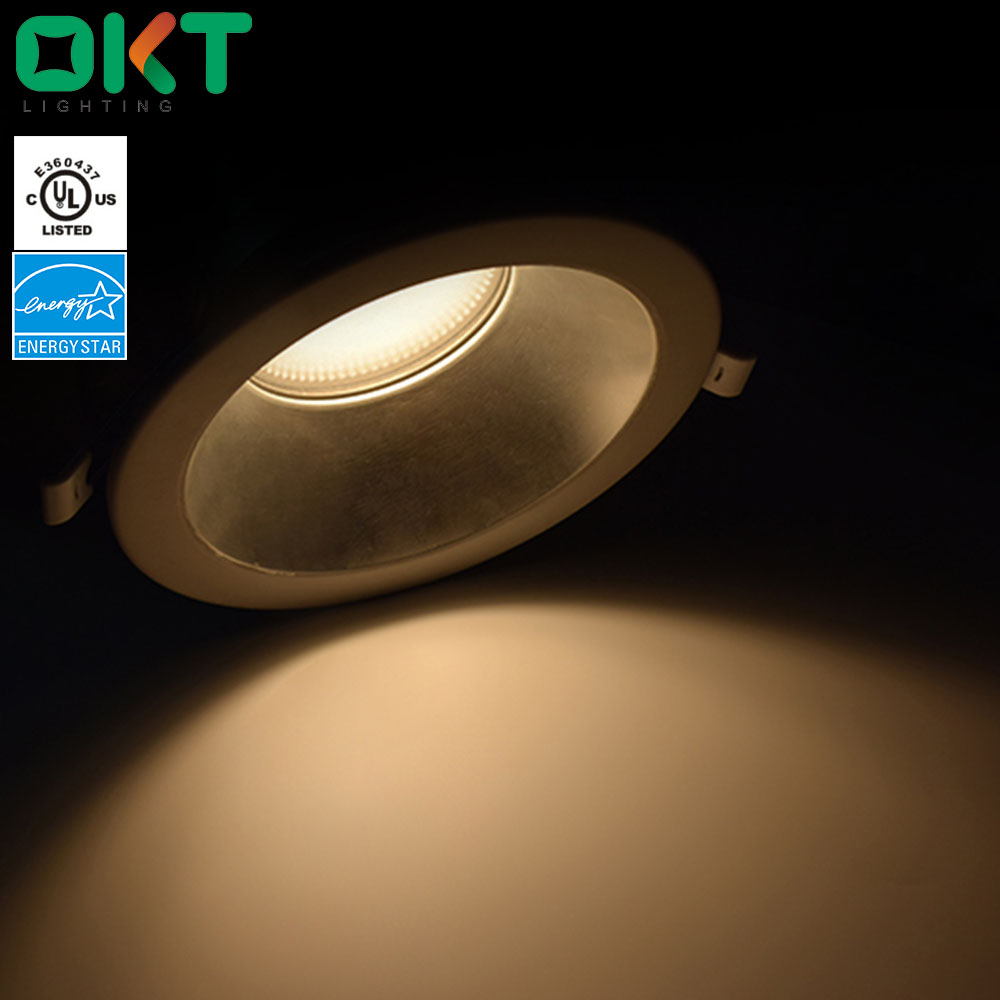

OKT anti glare CCT changing 8inch led downlight 20w for home interior lights
Performance
Model | CPX-D10W-XXX | CPX-D15W-XXX | CPX-D20-XXX |
Size Options | 4" 6" 8" | 4" 6" 8" | 4" 6" 8" |
Input Power | 10W | 15 W | 20W |
Luminous Flux | 780 lm | 1215 lm | 1580 lm |
Input Voltage | 120-347V AC | 120-347V AC | 120-347V AC |
Dimming Type | 0-10V Dimming | 0-10V Dimming | 0-10V Dimming |
L70 hrs | >50000 hrs | >50000 hrs | >50000 hrs |
Mounting | Recessed | Recessed | Recessed |
CRI | Ra>80 | Ra>80 | Ra>80 |
Cut Size | 4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max | 4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 7.4" min. to 8.9" max | 4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max |
Certificate | UL Listed, Energy Star, LM79 Report | UL Listed, Energy Star, LM79 Report | UL Listed, Energy Star, LM79 Report |
Dimensions
4INCH
6INCH
8INCH
1. Lower Stock Risk By Split Design
Split design can reduce inventory. One engine allows for seamless integration of multiple trim options with easy and tool-free installation.
2. Saving Shipping Costs
We offer 2 package options: one is the whole lamp package, and the other is the separate package (engines and trims).
3. No Cans - Saving Job Site Cost
The innovative design of split downlights integrate junction box and with installation clamps, making it save the housing fixtures for new construction.
4. Aesthetically Pleasing Lighting
Beam Angle: 65 degrees for 4", 70 degrees for 6", 75 degrees for 8"
Economical Commercial Solutions for Recessed Application
