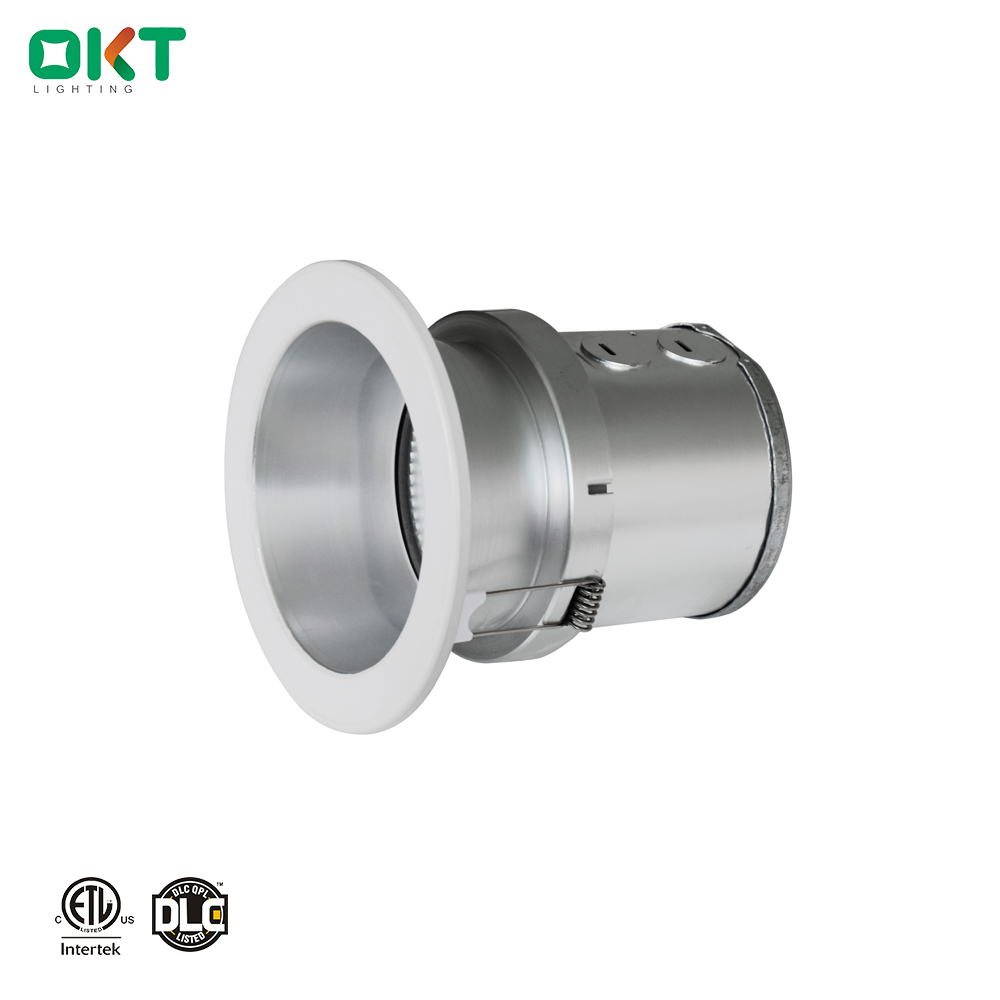

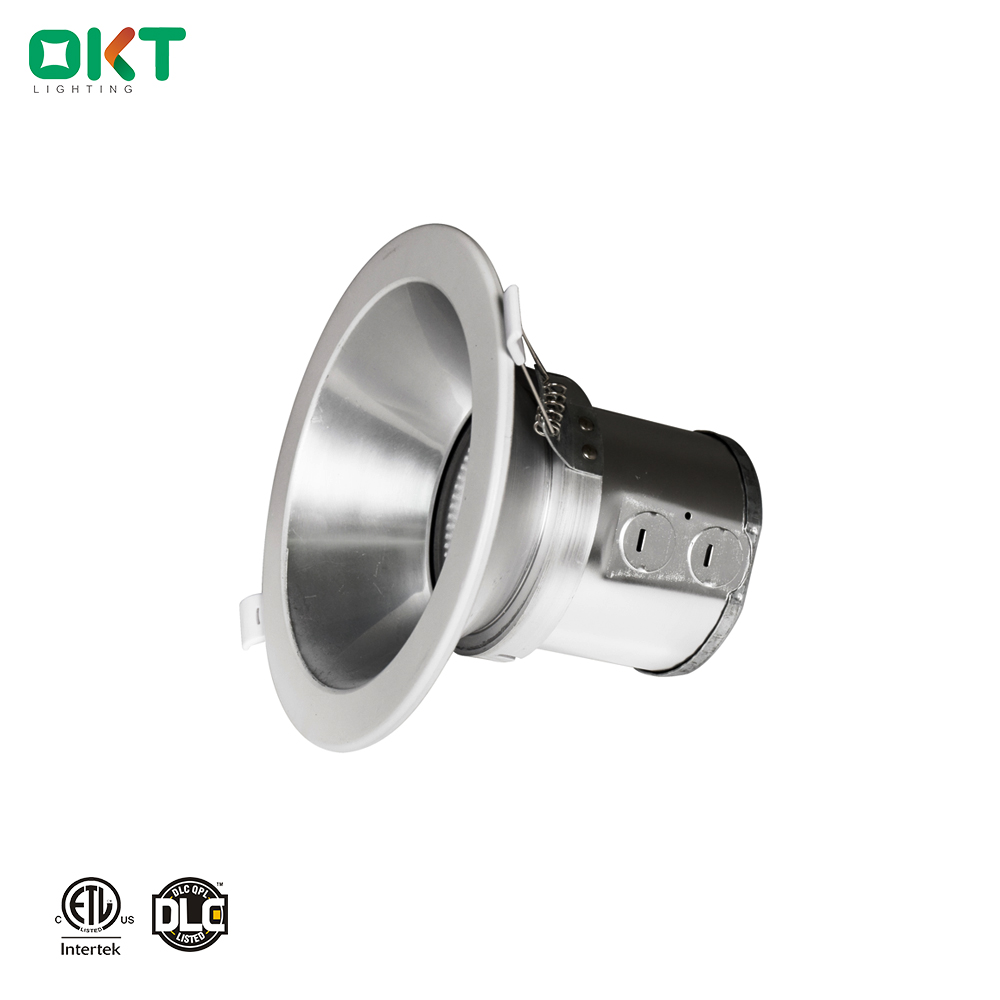

OKT Lighting ES cULus ugr 19 4inch 6inch 8inch tunable white recessed led downlight 10w

Click on the image to view the original image

Product：	views：4OKT Lighting ES cULus ugr 19 4inch 6inch 8inch tunable white recessed led downlight 10w
Branch：	OKT Lighting
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 19:57

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: AC120-347V

Lamp Luminous Flux(lm):: 780

CRI (Ra>):: 78

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: ip22

Certification:: BV, Energy Star, UL

Model Number:: CPX-D10W-XXX

Place of Origin:: Guangdong, China

Brand Name:: OKT Lighting

Application:: Residential, Damp Location

Install Style:: Surface mounted

Switch Type:: Touch On/Off Switch

Warranty(Year):: 5-Year

Working Temperature(℃):: -20 - 50

Size Options:: 4" 6" 8"

Power Option:: 10watt,15watt, 20watt

CCT Options:: 3000K,3500K,4000K,5000K

Dimmable:: 0-10V Dimming

Function available:: tunable white

Mounting:: Recessed

Bean Angle:: 65 degree for 4", 70 degree for 4",75 degree for 4",

Product name:: 6 inch downlight

Supply Ability

Supply Ability:: 50000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: The Package Details Please View The Product Description, or Leave Message

Port: Shenzhen

Description

Structures

OKT's split 6 inch retrofit led downlight are available in 4inch, 6inch and 8inch with 10W, 15W and 20W. The innovative separable design of junction box and trim makes it more flexible. Easy-fit installation comes from the adjustable butterfly clips. It is designed and engineered for recessed applications, which is suitable for commercial and public places and elegantly decorates the ambience, such as shopping mall, hospital, airport, hotel lobby etc.

Performance

Model	CPX-D10W-XXX	CPX-D15W-XXX	CPX-D20-XXX
Size Options	4"6"8"	4" 6" 8"	4"6"8"
Input Power	10W	15 W	20W
Luminous Flux	780 lm	1215 lm	1520 lm
Input Voltage	100-277V AC	100-277V AC	100-277V AC
Dimming Type	0-10V Dimming	0-10V Dimming	0-10V Dimming
L70 hrs	>50000 hrs	>50000 hrs	>50000 hrs
Mounting	Recessed	Recessed	Recessed
CRI	Ra>80	Ra>80	Ra>80
Function	tunable white available	tunable white available	tunable white available
Cut Size	4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max	4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max	4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max
Certificate	UL Listed, Energy Star, LM79 Report	UL Listed, Energy Star, LM79 Report	UL Listed, Energy Star, LM79 Report
Damp Rated	YES	YES	YES

Dimensions

4INCH

6INCH

8INCH

Features & Benefits

1. Lower Stock Risk By Split Design

Split design can reduce inventory. One engine allows for seamless integration of multiple trim options with easy and tool-free installation.

2. Saving Shipping Costs

We offer 2 package options: one is the whole lamp package, and the other is the separate package (engines and trims).

3. No Cans - Saving Job Site Cost

The innovative design of split downlights integrate junction box and with installation clamps, making it save the housing fixtures for new construction.
