new design ugr17 10watt 15watt 20watt 4 inch led down light for hotel

Click on the image to view the original image

Product：	views：3new design ugr17 10watt 15watt 20watt 4 inch led down light for hotel
Branch：	OKT Lighting
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 19:57

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: AC100-277V

Lamp Luminous Flux(lm):: 800

CRI (Ra>):: 80

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: ip22

Certification:: BV, Energy Star, UL

Model Number:: CP4-D10W-XXE

Place of Origin:: Guangdong, China

Brand Name:: OKT Lighting

Application:: Residential, Damp Location

Install Style:: Embeded

Switch Type:: Touch On/Off Switch

Warranty(Year):: 5-Year

Lamp Luminous Efficiency(lm/w):: 80

Working Temperature(℃):: -20 - 50

Unified Glare Rating:: <17

CCT Options:: 3000K,3500K,4000K,5000K

Mounting:: Recessed

Dimmable:: 0-10V Dimming

Bean Angle:: 65 degree for 4", 70 degree for 4",75 degree for 4",

Product name:: 4 inch down light

Supply Ability

Supply Ability:: 50000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: The Package Details Please View The Product Description, or Leave Message

Port: Shenzhen

Description

Structures

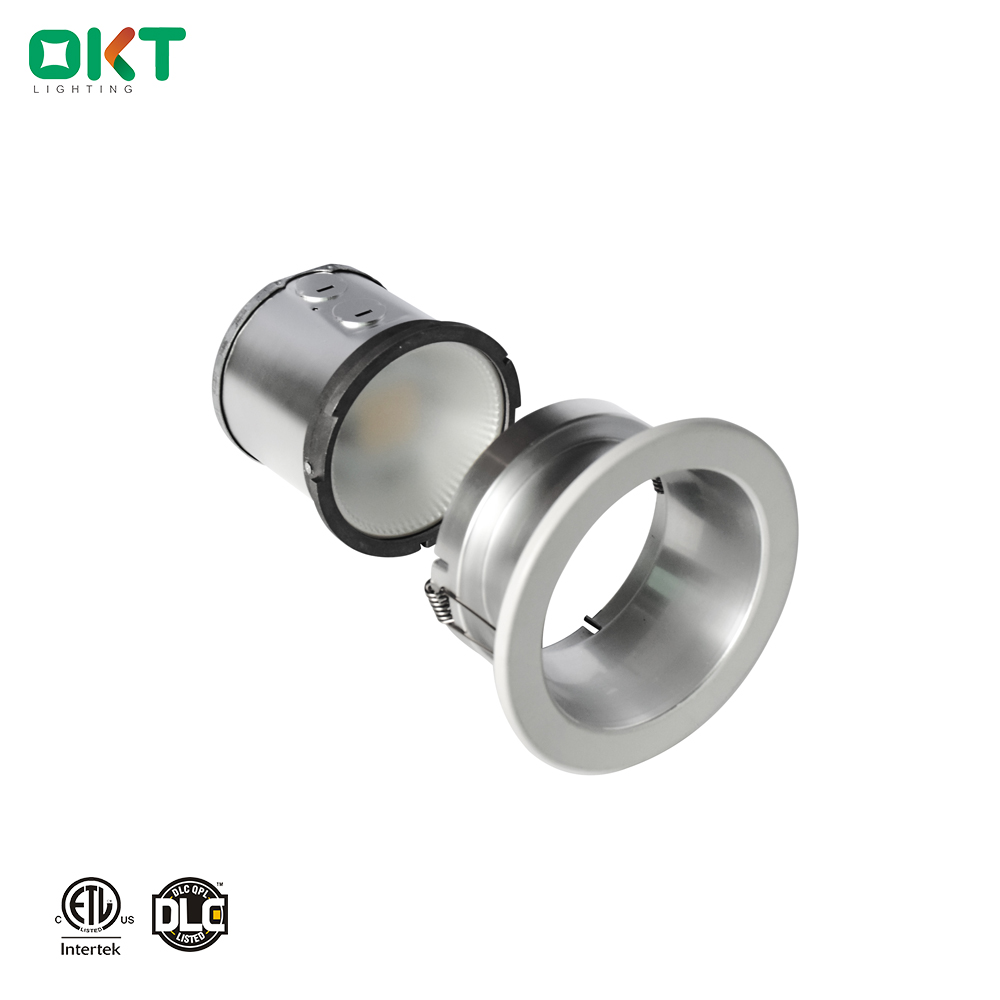

OKT's 4inch split LED commercial downlight series are available in 9W, 15W and 20W. The innovative separable design of junction box and trim makes it more flexible. Easy-fit installation comes from the adjustable butterfly clips. It is designed and engineered for recessed applications, which is suitable for commercial and public places and elegantly decorates the ambience, such as shopping mall, hospital, airport, hotel lobby etc.

Performance

Model	CPX-D10W-XXE	CPX-D15W-XXE	CPX-D20W-XXE
Size Options	4"6"8"	4" 6" 8"	4"6"8"
Input Power	9W	15 W	20W
Luminous Flux	780 lm	1170 lm	1520 lm
Input Voltage	100-277V AC	100-277V AC	100-277V AC
L70 hrs	>50000 hrs	>50000 hrs	>50000 hrs
Mounting	Recessed	Recessed	Recessed
CRI	Ra>80	Ra>80	Ra>80
Cut Size	4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max	4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max	4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max
Certificate	/	UL Listed, Energy Star, LM79 Report	UL Listed, Energy Star, LM79 Report
Damp Rated	YES	YES	YES

Dimensions

4INCH

6INCH

8INCH

Features & Benefits

1. Lower Stock Risk By Split Design

Split design can reduce inventory. One engine allows for seamless integration of multiple trim options with easy and tool-free installation.

2. Saving Shipping Costs

We offer 2 package options: one is the whole lamp package, and the other is the separate package (engines and trims).

3. No Cans - Saving Job Site Cost

The innovative design of split downlights integrate junction box and with installation clamps, making it save the housing fixtures for new construction.
