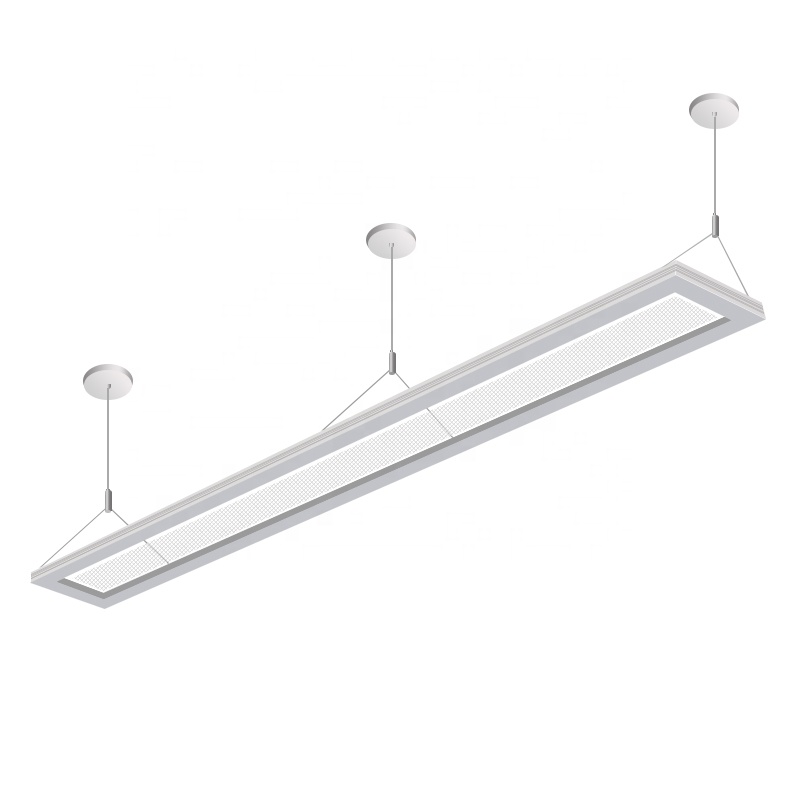

EETL DLC emitting dimming led 4FT 8FT suspending pendant light fixture
PRODUCT DESCRIPTION
- The suspended Up/down LED Luminaire is a commercial pendant lighting fixture utilizing an advanced LED optical system to achieve superior performance.
- The unique design is nearly transparent luminaire when off and excellent uniformity and efficiency when on, reaching 55% downlighting and 45% uplighting distribution, making the illusion of the light floating in mid-air, included UL Recognized constant current driver which support 0-10V dimming and step dimming, suitable for indoor lighting.
PERFORMANCE SUMMARY
Efficacy: 105LPW
Delivered Light Output: 4200Lumens
Input Power: 40Watts
CRI: Ra>80
DLC CCT Options: 3500K/4000K/5000K
Input Voltage: 100-277V AC
Input current: 0.43A THD:<20%
Power Factor: >0.9
Driver output: DC30-42V,0.88A
Standard Warranty: 5 Years
Standard Lifetime: Designed to L70 minimum 50,000 hours
Mounting: Suspended Support to connect 9pcs panels together in 120V AC support to connect 18pcs panels together in 230V AC
Available 0-10v dimming and step dimming (100%,50%,10%) Signal Current: <2mA
Recommended Dimmers: DIVA-DVTV (LUTRON), IP-710-DL (LEVITON)
Dimensions: L 47.24” x W 7.87” x H 0.94”
| Model Number | Size | Input Power | Efficacy | Input Voltage | CRI | Certificate |
| DP4-DM-XXX | 8inch*4ft (200x1200mm) | 40W | 105 lm/w | 100-277V AC 200-240V AC | 80 | ETL, DLC, CE |
| DE14-DM-XXX | 1X4FT 300X1200mm | 54W | 105 lm/w | 100-277V AC 200-240V AC | 80 | ETL, DLC |
| DP8-DM-XXX | 1X8FT 300X2400mm | 80W | 105 lm/w | 100-277V AC 200-240V AC | 80 | ETL, DLC, CE |
SPECTRAL POWER DISTRIBUTION & CHROMATICITY DIAGRAM
ZONAL LUMEN TABULATION
Zonal Lumen Summary
Zone | Lumens | %Luminaire |
0-30 | 433.6 | 10.2% |
0-40 | 755.0 | 17.7% |
0-60 | 1,551.3 | 36.5% |
60-90 | 720.3 | 16.9% |
70-100 | 369.5 | 8.7% |
90-120 | 547.7 | 12.9% |
0-90 | 2,271.6 | 53.4% |
90-180 | 1,892.9 | 46.6% |
0-180 | 4,254.5 | 100% |
Lumens Per Zone
Zone | Lumens | % Total | Zone | Lumens | % Total |
0-10 | 49.0 | 1.2% | 90-100 | 32.9 | 0.8% |
10-20 | 145.9 | 3.4% | 100-110 | 186.5 | 4.4% |
20-30 | 238.7 | 5.6% | 110-120 | 328.3 | 7.7% |
30-40 | 321.4 | 7.6% | 120-130 | 382.2 | 9% |
40-50 | 384.0 | 9.0% | 130-140 | 359.3 | 8.4% |
50-60 | 412.3 | 9.7% | 140-150 | 296.7 | 7% |
60-70 | 383.6 | 9.0% | 150-160 | 218.7 | 5.1% |
70-80 | 266.8 | 6.3% | 160-170 | 133.5 | 3.1% |
80-90 | 69.8 | 1.6% | 170-180 | 44.9 | 1.1% |
PHOTOMETRIC DATA
- 45% Uplight, 55% Downlight

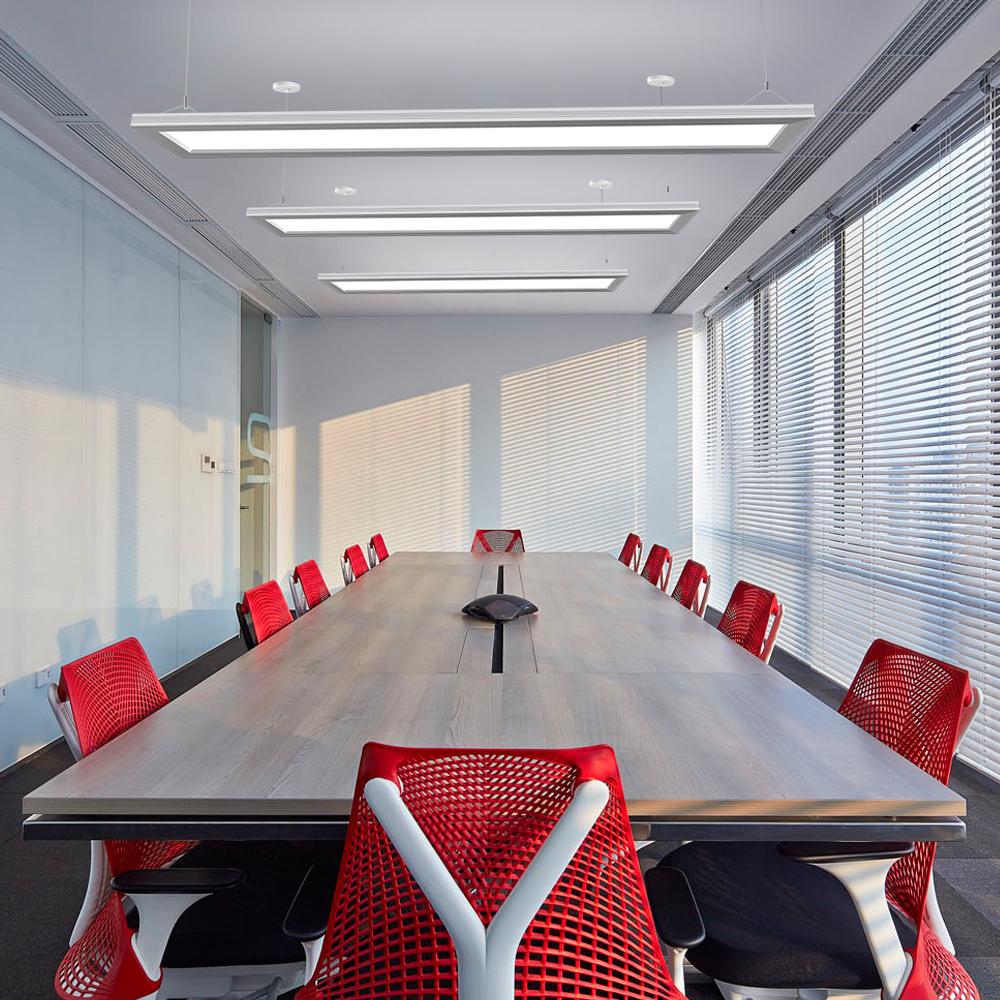

This suspended Up/Down led panel light is a commercial pendant lighting fixture,reaching 55% downlight and 45% uplight distribution, making the illusion of the light floating in mid-air.
- Transparent Optics
The unique design is nearly transparent luminaire when off and no direct or indirect
view of the light source with transparent optics when on.
- Pleasing Lighting, UGR <19
- Saving Your Dimmer Cost
It is available in 0-10V dimming or step dimming options to suitable for your different needs.
0-10V Dimming: DIVA-DVTV (LUTRON) ,IP-710-DL (LEVITON)
Step Dimming :100%, 50%, 10%
- Seamless Continuous Runs
No electrical connections at fixture joints, creating virtually seamless continuous runs
that are simple to install and speed construction.
