Home>Products> Low Glare 4 6 8 10Watt 15Watt 20Watt 120-347VAC LED Recessed Downlight with Junction Box

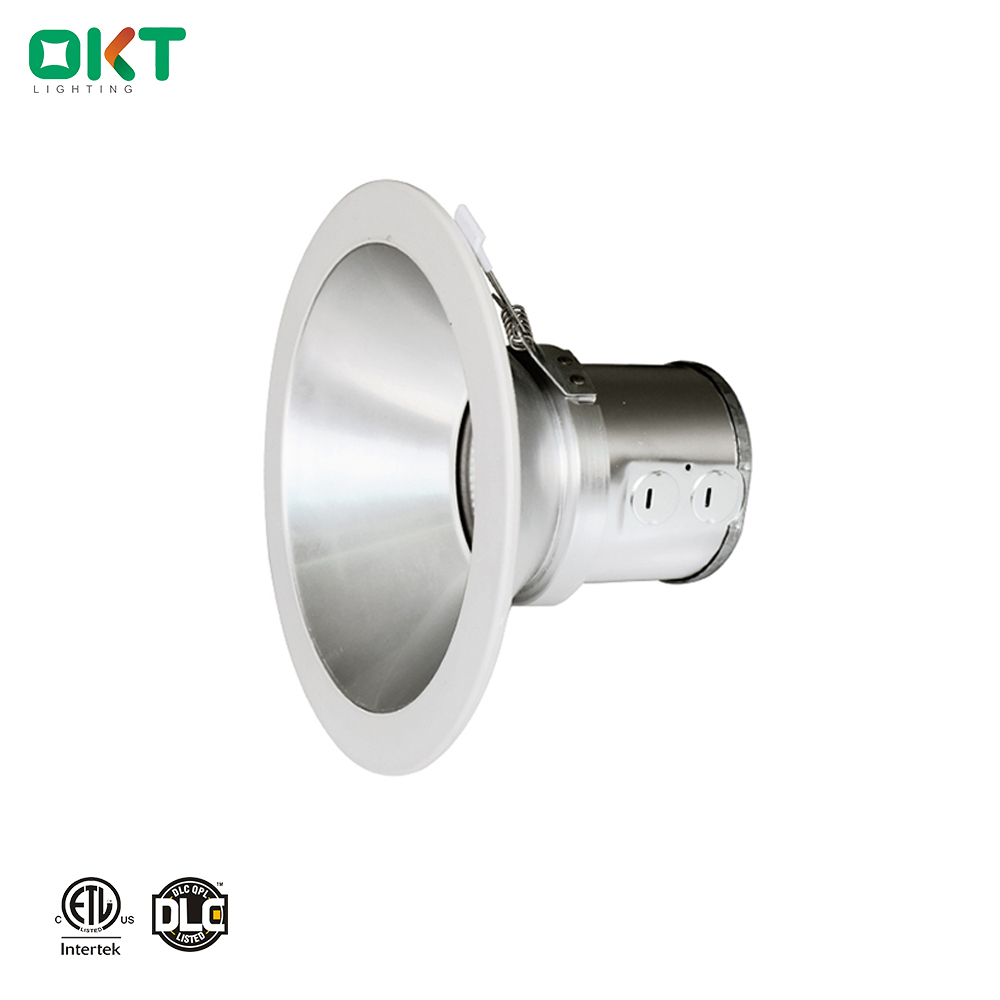

Low Glare 4 6 8 10Watt 15Watt 20Watt 120-347VAC LED Recessed Downlight with Junction Box
Click on the image to view the original image
Product：
views：2Low Glare 4 6 8 10Watt 15Watt 20Watt 120-347VAC LED Recessed Downlight with Junction Box
Branch：
OKT Lighting
Unit Price：
Negotiated
Min.Order：
Supply：
Delivery：
Shipment within days since the date of payment
Valid until：
Long Term
Updated on：
2019-10-16 19:59
Product Details
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
100-277V
Lamp Luminous Flux(lm):
1720
CRI (Ra>):
80
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP33
Certification:
Energy Star, UL
Model Number:
CPX
Place of Origin:
Guangdong, China
Brand Name:
OKT Lighting
Application:
Residential, Suitable for Damp locations
Install Style:
Embeded
Switch Type:
Touch On/Off Switch
Lamp Luminous Efficiency(lm/w):
86
Size Options:
4in, 6in,8in
Wattage Options:
10W 15W 20W
UGR:
UGR<17
ES Color Option:
3000K,3500K, 4000K,5000K
Dimmable:
Non Dimming/0-10V Dimming
Colors:
Silver gray
Product name:
led recessed downlight with junction box
Warranty(Years):
5 Years
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month led downlight
Packaging & Delivery
Packaging Details
Standard export box and carton or as client's design
For details,pls see our order information
Port
SHENZHEN
Low Glare 4" 6" 8" 10Watt 15Watt 20Watt 120-347VAC LED Recessed Downlight with Junction Box from OKT Lighting
Performance
Model
CPX-D10W-XXX
CPX-D15W-XXX
CPX-D20-XXX
Size Options
4" 6" 8"
4" 6" 8"
4" 6" 8"
Input Power
10W
15 W
20W
Luminous Flux
750 lm
1275 lm
1720 lm
Input Voltage
120-347V AC
120-347V AC
120-347V AC
L70 hrs
>50000 hrs
>50000 hrs
>50000 hrs
Mounting
Recessed
Recessed
Recessed
CRI
Ra>80
Ra>80
Ra>80
Cut Size
4 fits 4.7" min. to 5.2" max
6 fits 6" min. to 7.3" max
8 fits 7.4" min. to 8.9" max
4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max
4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max
Certificate
UL Listed, Energy Star,
LM79 Report
UL Listed, Energy Star,
LM79 Report
UL Listed, Energy Star, LM79 Report
Damp Rated
YES
YES
YES

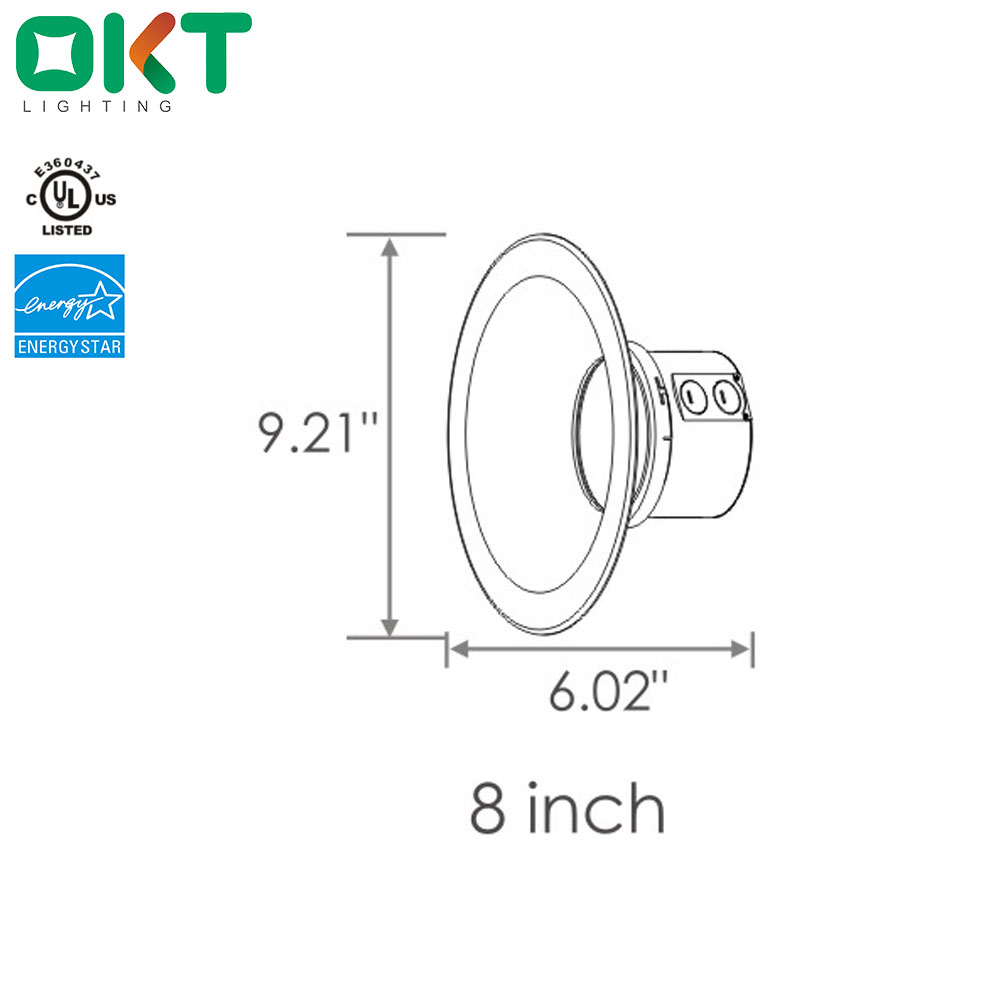

Dimensions
4INCH
6INCH
8INCH
1. Lower Stock Risk By Split Design
Split design can reduce inventory. One engine allows for seamless integration of multiple trim options with easy and tool-free installation.
2. Saving Shipping Costs
We offer 2 package options: one is the whole lamp package, and the other is the separate package (engines and trims).
3. No Cans - Saving Job Site Cost
The innovative design of split downlights integrate junction box and with installation clamps, making it save the housing fixtures for new construction.
4. Aesthetically Pleasing Lighting
Beam Angle: 65 degrees for 4", 70 degrees for 6", 75 degrees for 8"
Economical Commercial Solutions for Recessed Application
Our Company
Shenzhen OKT Lighting CO.,Ltd, Founded in 2008; Specialized in researching, manufacturing and sales of commercial LED lighting fixtures, include panel lights, troffers, downlights, linear pendant fixtures and LED emergency drivers; All have achieved certifications such as UL, ETL, Energy Star, DLC, TITLE 24, TÜV, CSA, SASO and FCC; A minimum five-year warranty.
Focus Focus entirely on the North American market and in just a few years it has already gained a firm footing in this market; Focused on R&D, producing LED products that are more energy-efficient, cost-effective and aesthetically pleasing than those already on the market; Focus on quality control, We take more than just quality products for manufacturers to thrive.
