dlc led retrofit troffer 2x2 ft 40W indirect lighting DLC OKT lighting
Specification of dlc led retrofit troffer 2x2
| Model | Item NO. | Input Power | Luminous Flux | Input Voltage | Certificate |
|---|---|---|---|---|---|
| 2x2ft led troffer | TR22-DL** | 27W | 2800LM | 100-277V AC | UL, cUL,DLC |
| 2x2ft led troffer | TR22-DM** | 40W | 4560LM | 100-277V AC | UL, cUL,DLC |
| 2x2ft led troffer | TR22-DM347** | 42W | 4560LM | 347-480V AC | UL, cUL |
dlc led retrofit troffer 2x2 Product Family for led panel light
| Item | Input Power | Luminous Flux | Certificate |
|---|---|---|---|
| 2x4ft led troffer | 40W | 4560LM | UL, cUL,DLC |
| 2x4ft led troffer | 65W | 7000LM | UL, cUL,DLC |
| 2x4ft led troffer | 42W | 4560LM | UL, cUL |
Details Display for dlc led retrofit troffer 2x2

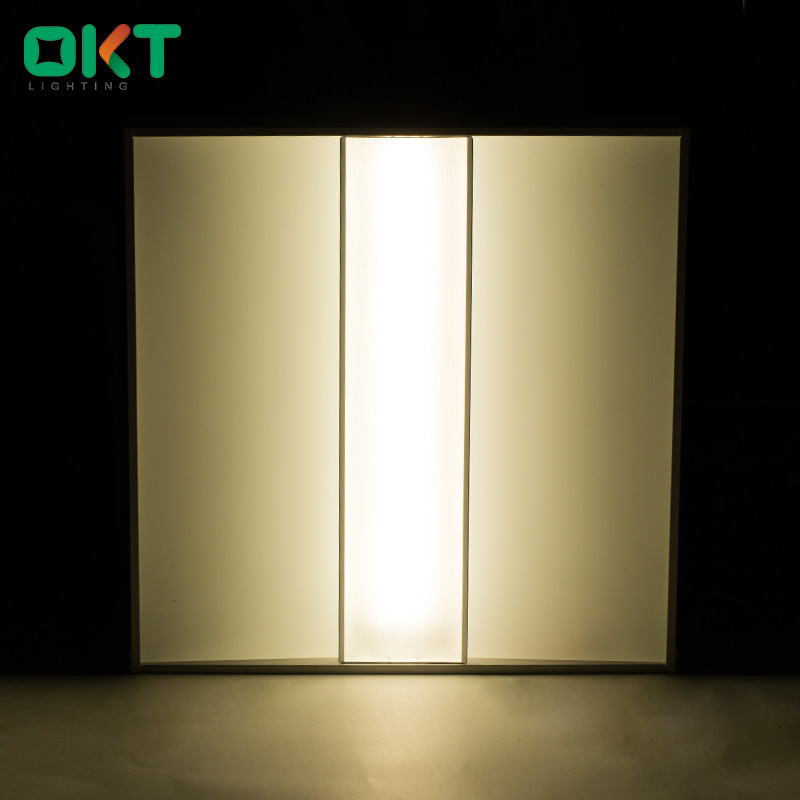

1. Front Size

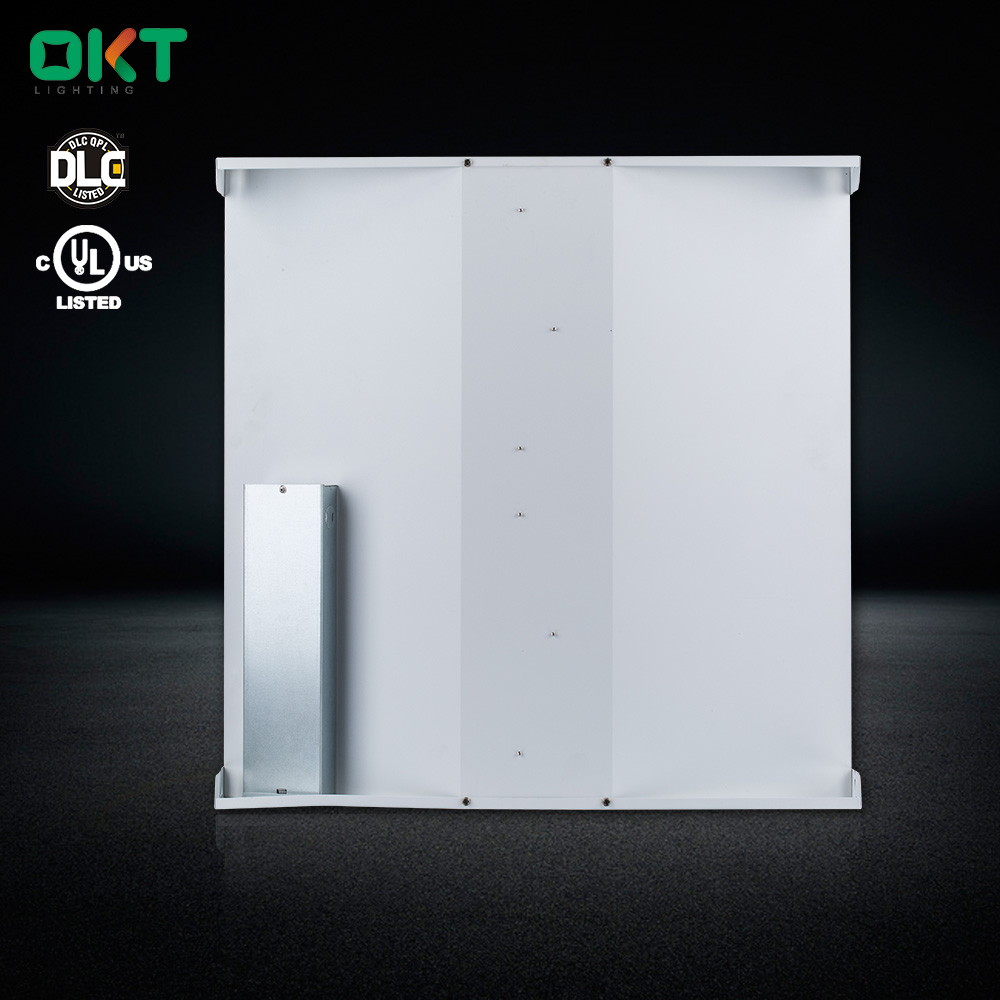

2. Back Side
Features of dlc led retrofit troffer 2x2 ight
The OKT dlc led retrofit troffer 2x2 has approved DESIGNLIGHTS CONSORTIUM (DLC) and UL, which reach 91lumens per watt in 100~277 VAC Input. This 27W/40W/42W 2x2ft drop in troffer included UL Recognized constant current driver and designed for new construction applications or retrofitting existing fluorescent troffer light fixtures.
UL and cUL Listed, DLC Listed, LM79 Report and Lighting Facts Available;
0-10v Dimming Available(Recommended Dimmer: LUTRON DIVA 0-10V CONTROL, RENOIR || 0-10V DIMMING CONTROL-DVTV/DVSCTV);
Trim Color Options: White or Silver;
Installation: Recessed, surface mounted kit, suspension;
Suitable for Damp locations;
LM79 Report of dlc led retrofit troffer 2x2
1. This OKT dlc led retrofit troffer 2x2 was tested with no seasoning which made in compliance with IES LM-79-08.
2. It was operated at rated voltage or at voltage required by manufacturer.
3. The ambient temperature of the sample was maintained at 25°C±1°C during measurement.
4. And relative humidity is less than 65%.
Structure of dlc led retrofit troffer 2x2
led panel light
Projects of dlc led retrofit troffer 2x2 el light
OKT dlc led retrofit troffer 2x2 is capable of retrofit application to existng fluorescent fixtures or new architectural. Many OKT 2 x 2 tr dlc led retrofit troffer 2x2
Under the terms of this warranty, if the product has a failure occurs under normal usage within warranty period, OKT LIGHTING will provide free new products based on the proof-documents. | |
| situation 2 | If failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, OKT lighting will provide paid maintence within warranty period. |
More concerned for OKT dlc led retrofit troffer 2x2 , pls do not hesitate to inquiry now or visit OKT web: www.oktlighting.com!
