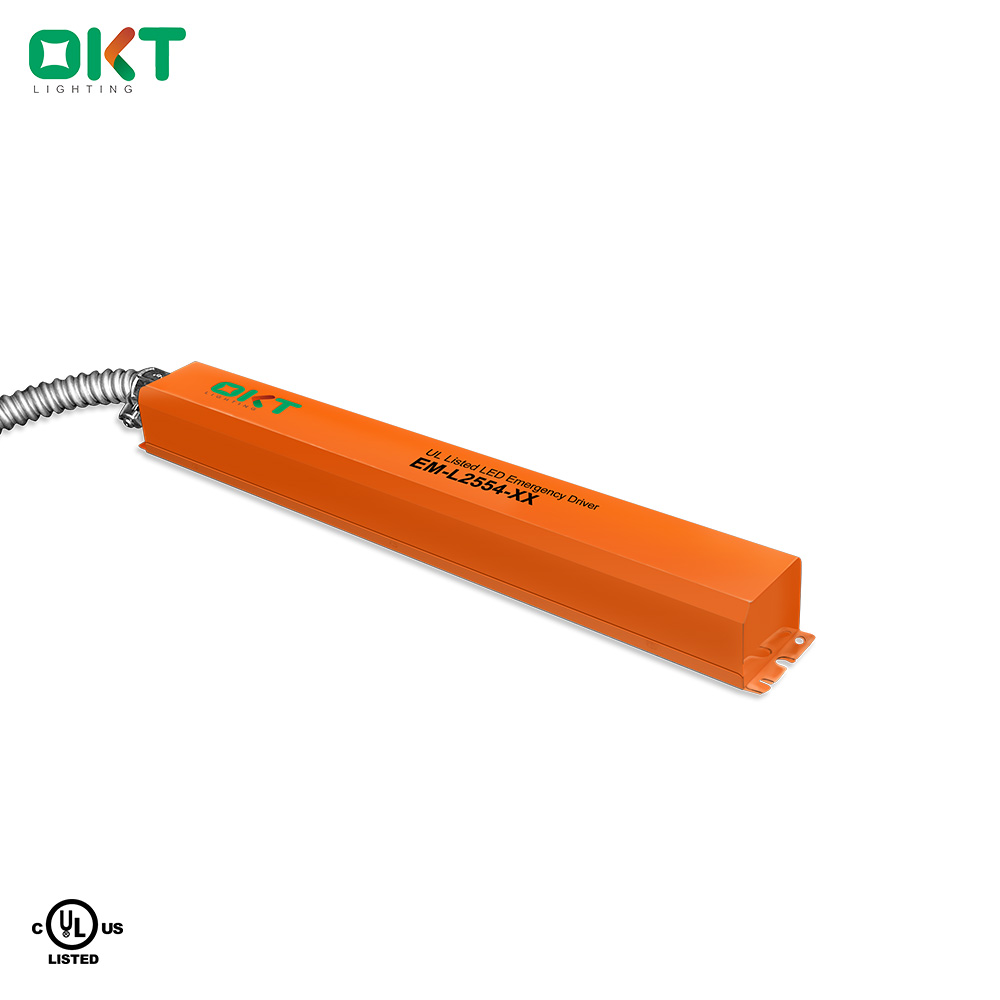

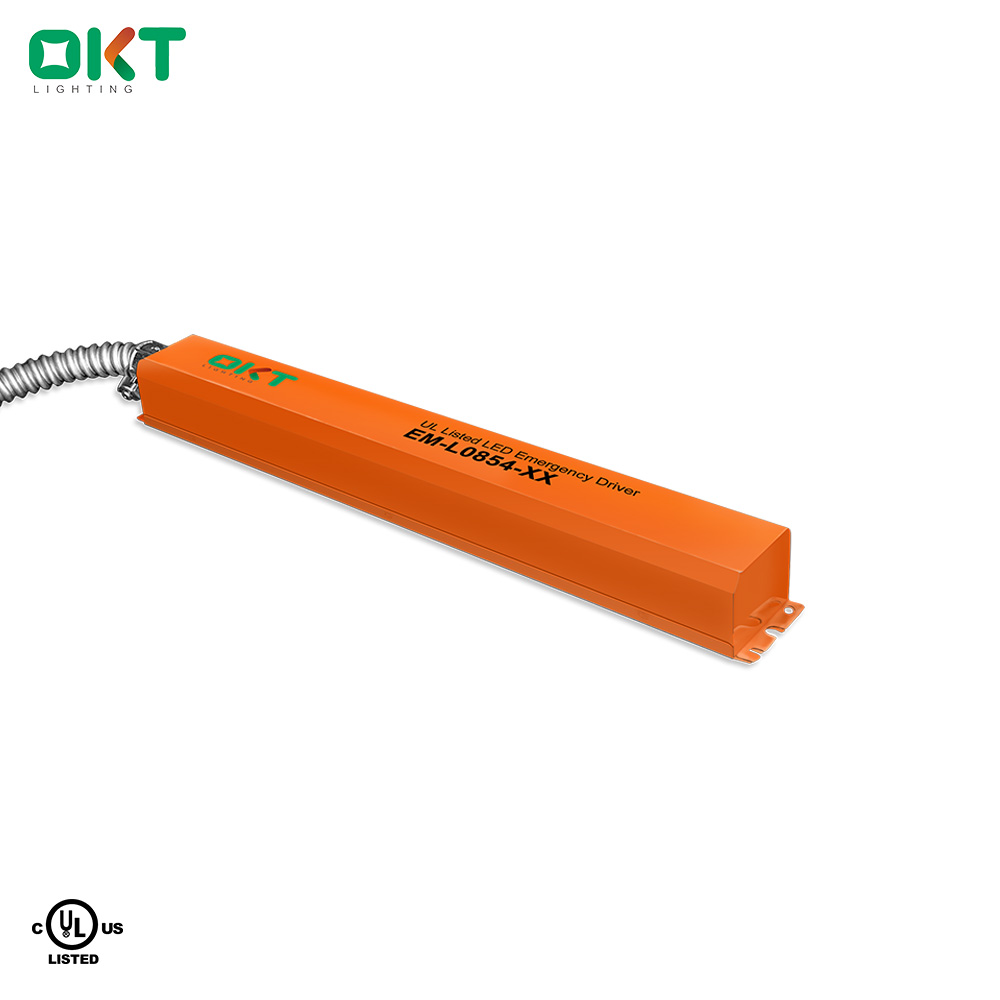

Factory direct sales UL listed high&low power battery backup led emergency light
Description
The OKT battery backup led emergency light is UL,CUL Listed that be used for both normal and emergency operation.the led rechargeable battery backup led emergency light switches to the emergency mode and operates for 90 minutes after blackout which including a battery,charger and converter circuit in a single can. It is available in different mounting configurations for individual fixture requirements.
Specification
for led product with external driver:
| Model | Output Power | Max.Connected Load | Input Voltage | Emergency Time | Output Voltage |
| EL-0848-XX | 8W (max) | 0.5 A | 100-277VAC/ 120-250V | >90 Minutes | 12-48V DC |
| EL-1248-XX | 16W (max) | 0.75A | 100-277VAC/ 120-250V | >90 Minutes | 12-48V DC |
| EL-2548-XX | 25W (max) | 1.38 A | 100-277VAC/ 120-250V | >90 Minutes | 12-48V DC |
for led product with inernal driver:
| Model | Output Power | Input Power | Input Voltage | Emergency Time | Output Voltage |
| EH-18170-XX | 16W (max) | 6W | 100-277VAC/ 120-250V | >90 Minutes | 170V DC |
| EH-25170-XX | 25W (max) | 6W | 100-277VAC/ 120-250V | >90 Minutes | 170V DC |
Dial the code to suitable voltage of luminaire
Includes test switch and charge indicator accessory
for use with switched or non switched fixtures
UL and CUL Listed
Form for dial the code to suitable rated voltage of luminaire
| Model | 8W | 12W | 18W | 25W |
| A | 55.4MM | 55.4MM | 69MM | 69MM |
| B | 55MM | 55MM | 71MM | 71MM |
| C | 264.6MM | 264.6MM | 377MM | 377MM |
| D | 69MM | 55.4MM | 69MM | 69MM |
| E | 22.2MM | 22.2MM | 222MM | 22.2MM |
Typical Wiring Diagram for rechargeable battery backup led emergency light with internal led product
Typical Wiring Diagram for battery backup led emergency light with external led product
