Specifications

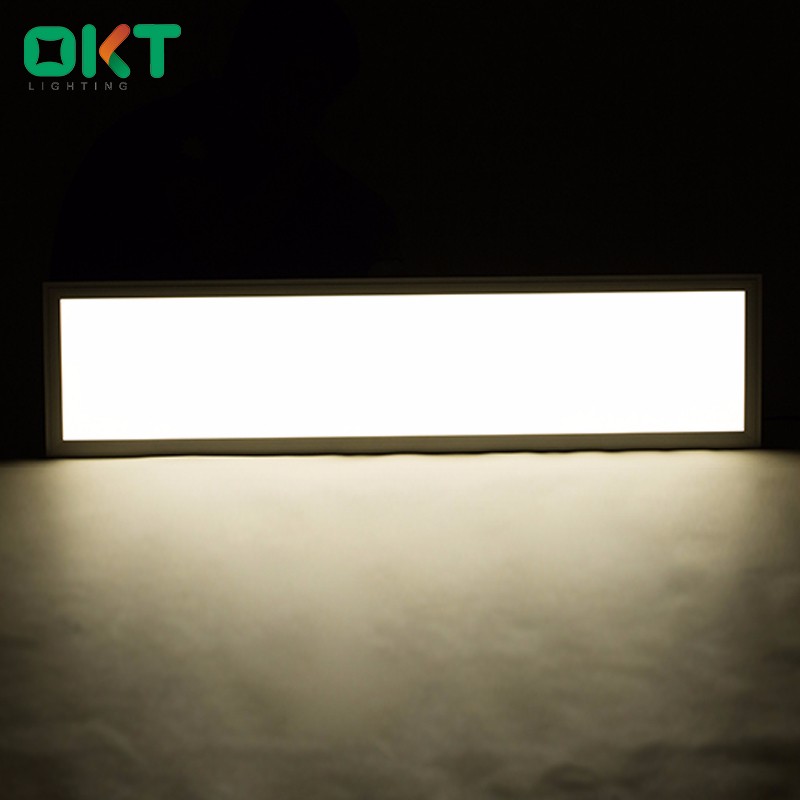

The OKT Led Panel Light reach up to 125 lumens per watt in 100-277 VAC Input with included UL Recognized constant current driver which is available in 4000k, 5000k DLC CCT Options with 0-10V dimming available. The led light panel is a well-designed, lay-in ceiling troffer fixture for new construction applications or retrofitting existing fluorescent troffer light fixtures.
Features
- Efficacy up to 125lm/w (110lm/w option)
- 120-347V AC input voltage (100-277V option)
- 0-10V dimming
- ETL DLC listed
- 5 years warranty
- Suitable for damp rated
- 1x4ft, 2x2ft 2x4ft size option
| Model No. | Size | Wattage | Input Voltage | Efficacy | Lumens |
| VS22-DM- | 2X2FT | 40W | 100-277V 120-347V 200-240V | 110 lm/w 125 lm/w | 4400 LM 5000 LM |
| VS24-DM- | 2X4FT | 50W | 100-277V 120-347V 200-240V | 110 lm/w 125 lm/w | 5500 LM 6250 LM |
| VS14-DM | 1X4FT | 40W | 100-277V 120-347V 200-240V | 100 lm/w | 4000 LM |
Detailed Images
Applications
Company Information
Shenzhen OKT Lighting Co.,Ltd, founded in 2008, specialises in research, manufacturing and sales of commercial LED lighting fixtures, with a monthly production of 50,000 products and monthly production value at US$1.51m . Its main products include panel lights, troffers, downlights, linear pendant fixtures ,linear High bay and emergency back-up drivers, all of which have achieved certifications such as UL, ETL, Energy Star, DLC, TITLE 24, TÜV, CSA, SASO and FCC, and come with a minimum five-year warranty. Some have also been granted design patents on the Chinese mainland.
