ni-cd battery pack 12v Ni-Cd Battery Type and UL emergency pack

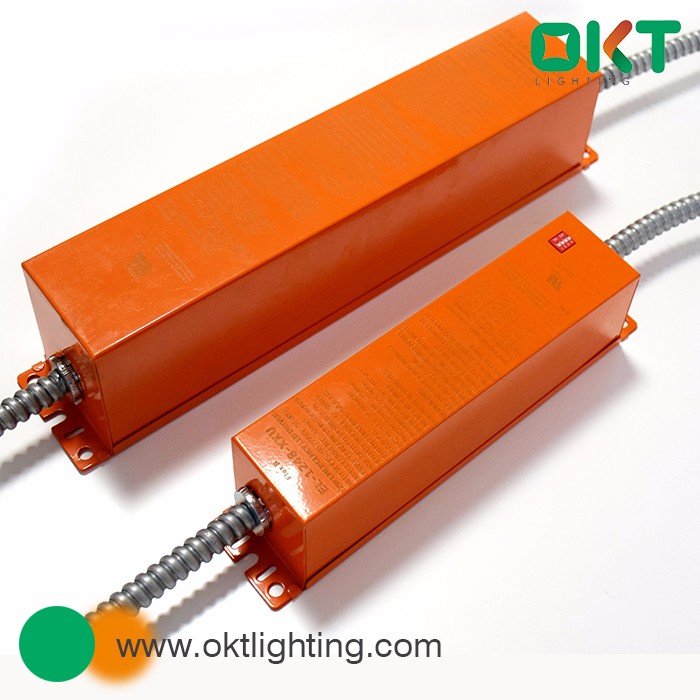

---The OKT t8 led emergency tube lights is UL,CUL Listed that be used for both normal and emergency operation,the t8 led emergency tube lights switches to the emergency mode and operates for 90 minutes after blackout which including a battery,charger and converter circuit in a single can.
---It is available in different mounting configurations for individual fixture requirements.
Specification
For led productS with inernal driver:
| Model | Output Power | Input Power | Input Voltage | Emergency Time | Output Voltage |
| EH-18170-XX | 18W (max) | 6W | 100-277VAC/ 120-250V | >90 Minutes | 170V DC |
| EH-25170-XX | 25W (max) | 6W | 100-277VAC/ 120-250V | >90 Minutes | 170V DC |

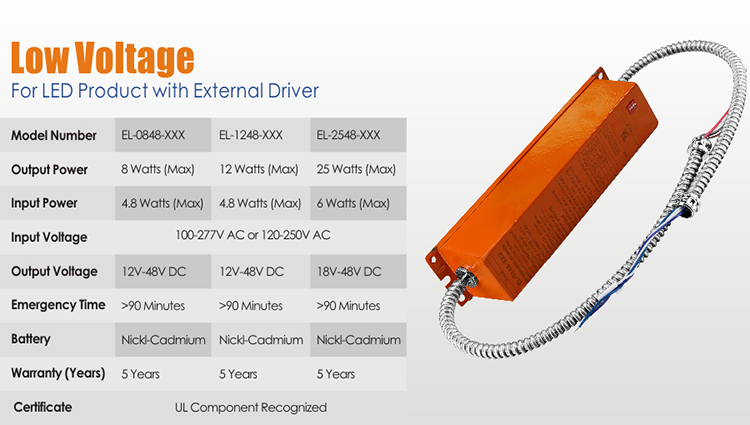

For led productS with external driver:
| Model | Output Power | Max.Connected Load | Input Voltage | Emergency Time | Output Voltage |
| EL-0848-XX | 8W (max) | 0.5 A | 100-277VAC/ 120-250V | >90 Minutes | 12-48V DC |
| EL-1248-XX | 12W (max) | 0.75A | 100-277VAC/ 120-250V | >90 Minutes | 12-48V DC |
| EL-2548-XX | 25W (max) | 1.38 A | 100-277VAC/ 120-250V | >90 Minutes | 12-48V DC |
- Field installlable
- UL listed with 5 years limited warranty
- 90 minutes operation for battery backup
- A full selection of mounting configurations
- Available in split design with battery pack and led driver
- Applicable to most led luminaries
Dial the code to suitable voltage of luminaire Includes test switch and charge indicator accessory for use with switched or non switched fixtures UL and CUL Listed
Form for dial the code to suitable rated voltage of luminaire
| Model | 8W | 12W | 18W | 25W |
| A | 55.4MM | 55.4MM | 69MM | 69MM |
| B | 55MM | 55MM | 71MM | 71MM |
| C | 264.6MM | 264.6MM | 377MM | 377MM |
| D | 69MM | 55.4MM | 69MM | 69MM |
| E | 22.2MM | 22.2MM | 222MM | 22.2MM |
Typical Wiring Diagram for LED emergency bcakup with internal led product
Typical Wiring Diagram for LED emergency bcakup with external led product
