Home > Products > high quality 6 8 inch 20W daylight led downlight

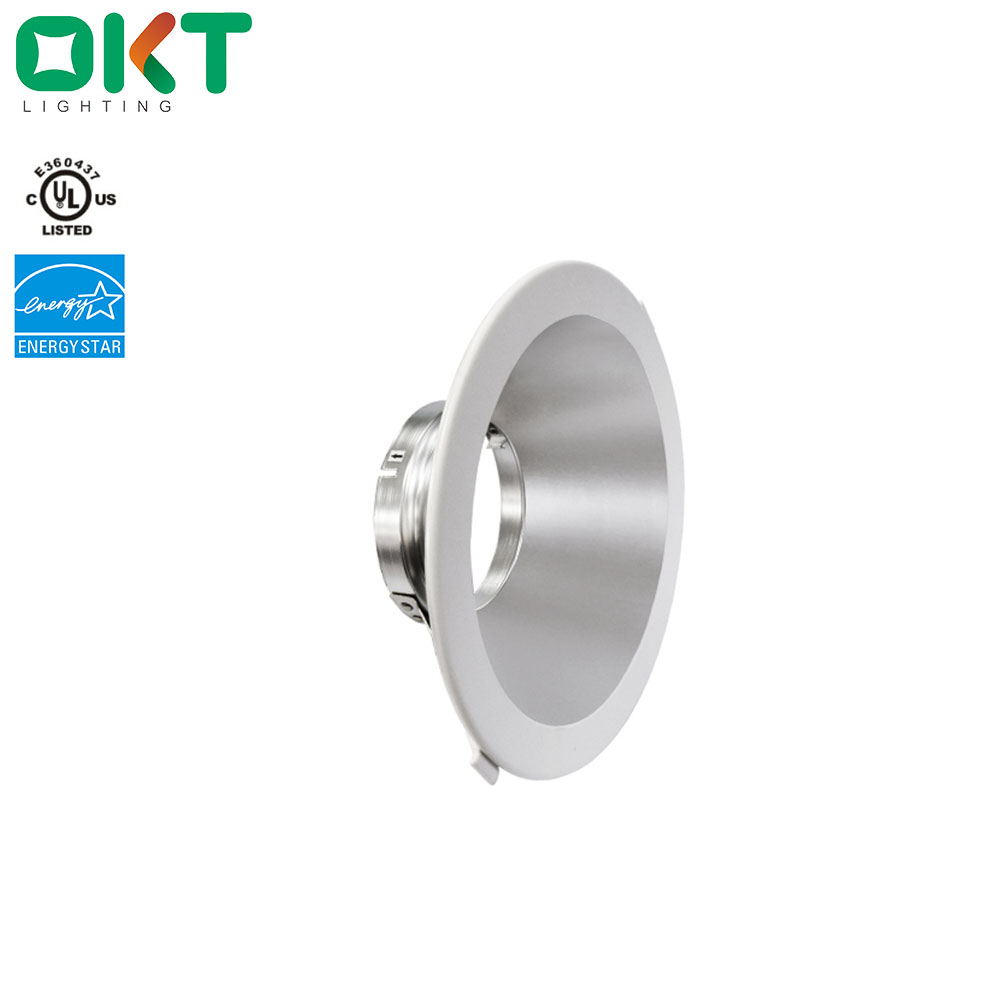

high quality 6 8 inch 20W daylight led downlight

Click on the image to view the original image

Product：	views：2high quality 6 8 inch 20W daylight led downlight
Branch：	OKT Lighting
Type：	8inche retrofit daylight led downlight
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:00

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: AC100-277V

Lamp Luminous Flux(lm):: 1760

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: IP22

Certification:: BV, Energy Star, UL

Model Number:: CPX-20W-XXX

Place of Origin:: Guangdong, China

Brand Name:: OKT Lighting

Size Options:: 4" 6" 8"

CCT Options:: 3000K,3500K,4000K,5000K

Mounting:: Recessed

Bean Angle:: 65 degree for 4", 70 degree for 4",75 degree for 4",

Application:: Damp Location

Product name:: New design high quality8inche retrofit daylight led downlight

Type:: 8inche retrofit daylight led downlight

Name:: 8inche retrofit daylight led downlight

Power:: 9w/15w/20w

Color:: Silver

Item Type:: Downlights

Color Temperature(CCT):: Pure White

Working Temperature(℃):: -20 - 50

CRI (Ra>):: 80

LED Light Source:: LG3030

Warranty(Years):: 5 years

Lamp Power(W):: 20

Lamp Luminous Efficiency(lm/w):: 88

Supply Ability

Supply Ability:: 50000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: The Package Details Please View The Product Description, or Leave Message

Port: Shenzhen

Lead Time:: 3-5 days for samples

Description

Structures

OKT"s J-box led downlight series are available in 4inch, 6inch and 8inch with 9W, 15W and 20W. The innovative separable design of junction box and trim makes it more flexible. Easy-fit installation comes from the adjustable butterfly clips. It is designed and engineered for recessed applications, which is suitable for commercial and public places and elegantly decorates the ambience, such as shopping mall, hospital, airport, hotel lobby etc.

Performance

Model	CPX-9W-XXX	CPX-15W-XXX	CPX-20-XXX
Size Options	4"6"8"	4" 6" 8"	4"6"8"
Input Power	9W	15 W	20W
Luminous Flux	720 lm	1275 lm	1760 lm
Input Voltage	100-277V AC	100-277V AC	100-277V AC
L70 hrs	>50000 hrs	>50000 hrs	>50000 hrs
Mounting	Recessed	Recessed	Recessed
CRI	Ra>80	Ra>80	Ra>80
Cut Size	4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max	4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max	4 fits 4.7" min. to 5.2" max 6 fits 6" min. to 7.3" max 8 fits 7.4" min. to 8.9" max
Certificate	/	UL Listed, Energy Star, LM79 Report	UL Listed, Energy Star, LM79 Report
Damp Rated	YES	YES	YES

Dimensions

4INCH

6INCH

8INCH

Features & Benefits

1. Lower Stock Risk By Split Design

Split design can reduce inventory. One engine allows for seamless integration of multiple trim options with easy and tool-free installation.

2. Saving Shipping Costs

We offer 2 package options: one is the whole lamp package, and the other is the separate package (engines and trims).

3. No Cans - Saving Job Site Cost

The innovative design of split downlights integrate junction box and with installation clamps, making it save the housing fixtures for new construction.

4. Aesthetically Pleasing Lighting

Beam Angle: 65 degrees for 4", 70 degrees for 6", 75 degrees for 8"

Applications

Economical Commercial Solutions for Recessed Application

Our Company

WE ARE LED LIGNTING MANUFACTURE

---Shenzhen OKT Lighting CO.,Ltd, Founded in 2008;Specialized in researching, manufacturing and sales of commercial LED lighting fixtures, include panel lights, troffers, downlights, linear pendant fixtures and LED emergency drivers;

---All have achieved certifications such as UL, ETL, Energy Star, DLC, TITLE 24, TÜV, CSA, SASO and FCC;
---A minimum five-year warranty.
