2018 newest selftest 8-24w emergency led driver for led lights
Click on the image to view the original image
Product： views：52018 newest selftest 8-24w emergency led driver for led lights
Branch： OKT Lighting
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:00
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OKT Lighting
Model Number:
EH-18170-XX
Bulb Type:
LED
Battery Type:
Ni-Cd
Material:
Cold Rolled Steel Sheet
Usage:
Camping
Certification:
UL
Specifications:
8w,12w,18w,25w
Output Power:
18W
Emergency Time:
>90 Minutes
Function:
Dial the code to suitable voltage of luminaire
Accessory:
test switch and charge indicator
Input Voltage:
100-277V AC
Input Power:
6W
Output Voltage:
< 48V DC or 170V DC
Application:
for most led lighting products
Certificate:
UL
Product Name:
LED emergency battery backup
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month LED emergency battery backup
Packaging & Delivery
Packaging Details
6PCS/CTN LED emergency battery backup
Contact sales for details
Port
SHENZHEN
Lead Time:
within 5 days, Contact sales for details

2018 newest selftest 8-24w emergency led driver for led lights

Product Description





Description

The OKT 12v dc battery backup power supply is UL,CUL Listed that be used for both normal and emergency operation.the emergency kit for led tube switches to the emergency mode and operates for 90 minutes after blackout which including a battery,charger and converter circuit in a single can. It is available in different mounting configurations for individual fixture requirements.



Specification

c12v dc battery backup power supply for led products with external driver:

ModelOutput PowerMax.Connected LoadInput VoltageEmergency Time Output Voltage
EL-0848-XX 12v dc battery backup power supply 8W (max)0.5 A

100-277VAC/

120-250V

>90 Minutes12-48V DC
EL-1248-XX  12v dc battery backup power supply 12W (max)0.75A

100-277VAC/

120-250V

>90 Minutes12-48V DC
EL-2548-XX 12v dc battery backup power supply 25W (max)1.38 A

100-277VAC/

120-250V

>90 Minutes12-48V DC


12v dc battery backup power supply for led product with inernal driver:

ModelOutput PowerInput PowerInput VoltageEmergency Time Output Voltage
EH-18170-XX 12v dc battery backup power supply 18W (max)6W

100-277VAC/

120-250V

>90 Minutes170V DC
EH-25170-XX 12v dc battery backup power supply 25W (max)6W

100-277VAC/

120-250V

>90 Minutes170V DC



Advantages

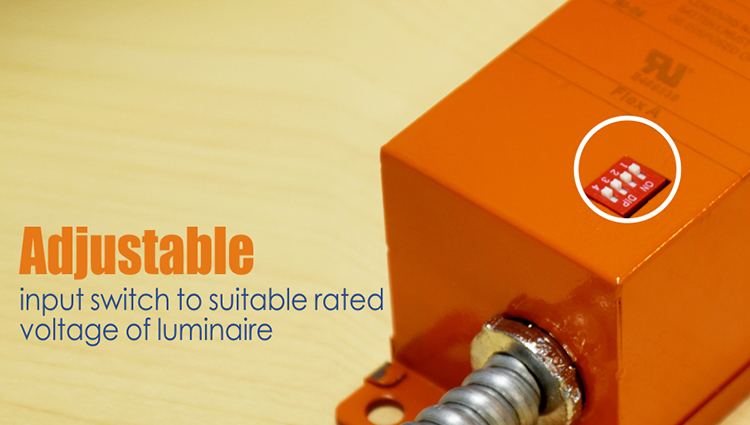

Dial the code to suitable voltage of luminaire

Includes test switch and charge indicator accessory

for use with switched or non switched fixtures

UL and CUL Listed



Form for dial the code to suitable rated voltage of luminaire





Size





Model8W12W18W25W
A55.4MM55.4MM69MM69MM
B55MM55MM71MM71MM
C264.6MM264.6MM377MM377MM
D69MM55.4MM69MM69MM
E22.2MM22.2MM222MM22.2MM



How to install



Typical Wiring Diagram for 25W emergency led driver  with internal led product



Typical Wiring Diagram for 25W LED emergency back up driver with external led product



PLS CONTACT SALES FOR MORE DETAILS ABOUT THIS 170v dc battery backup power supply !
