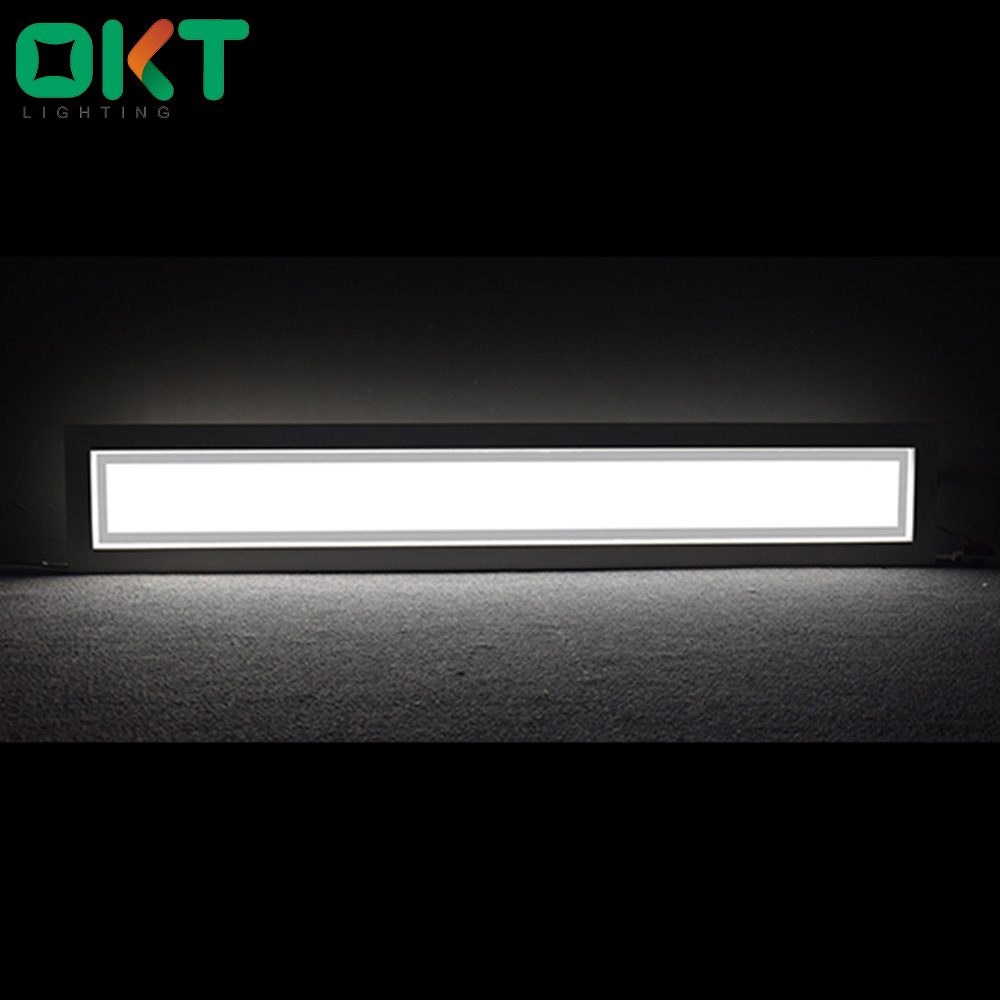

OKT Lighting Modern up and down linear lighting suspended 1x4 led panel light
The suspended Up/down LED luminaire is an architectural lighting solution for commercial and public places. The unique design is nearly transparent when off and create a harmonious atmosphere when on, with 55% Downlight and 45% Uplight distribution. The Panels are certificated by ETL and UL, and support 0~10V dimming.
Performance

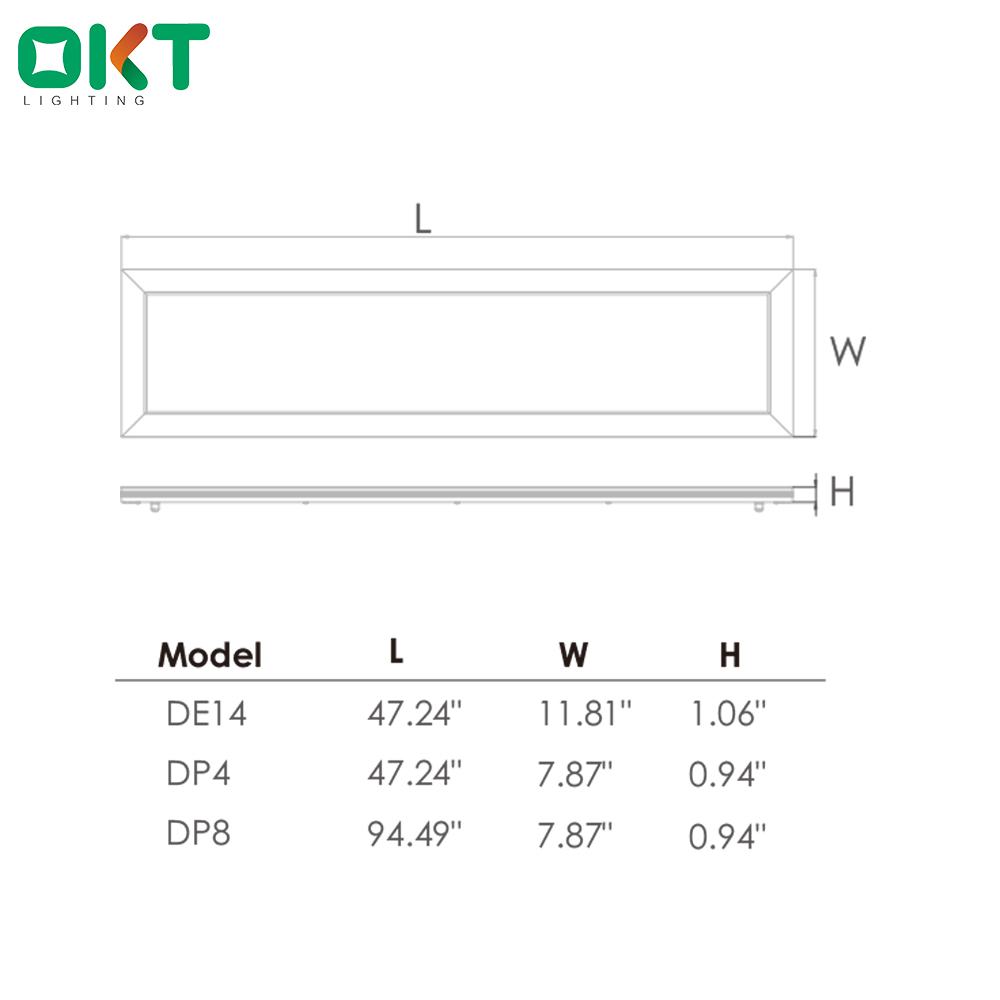

| Model Number | Size | Input Power | Efficacy | Input Voltage | CRI | Certificate |
| DP4-DM-XXX | 8inch*4ft (200x1200mm) | 40W | 105 lm/w | 100-277V AC 200-240V AC | 80 | ETL, DLC, CE |
| DE14-DM-XXX | 1X4FT 300X1200mm | 54W | 105 lm/w | 100-277V AC 200-240V AC | 80 | ETL, DLC |
| DP8-DM-XXX | 1X8FT 300X2400mm | 80W | 105 lm/w | 100-277V AC 200-240V AC | 80 | ETL, DLC, CE |
DLC CCT Options: 3500K/4000K/5000K
Standard Warranty: 5 Years
L70 hrs: L70>50000 hrs
Mounting: Suspended
- 45% Uplight, 55% Downlight
This suspended Up/Down led panel light is a commercial pendant lighting fixture,reaching 55% downlight and 45% uplight distribution, making the illusion of the light floating in mid-air.
- Transparent Optics
The unique design is nearly transparent luminaire when off and no direct or indirect
view of the light source with transparent optics when on.
- Pleasing Lighting, UGR <19
- Saving Your Dimmer Cost
It is available in 0-10V dimming or step dimming options to suitable for your different needs.
0-10V Dimming: DIVA-DVTV (LUTRON) ,IP-710-DL (LEVITON)
Step Dimming :100%, 50%, 10%
- Seamless Continuous Runs
No electrical connections at fixture joints, creating virtually seamless continuous runs
that are simple to install and speed construction.
