Home > Products > 15w 20w split new construction recessed commercial led downlight

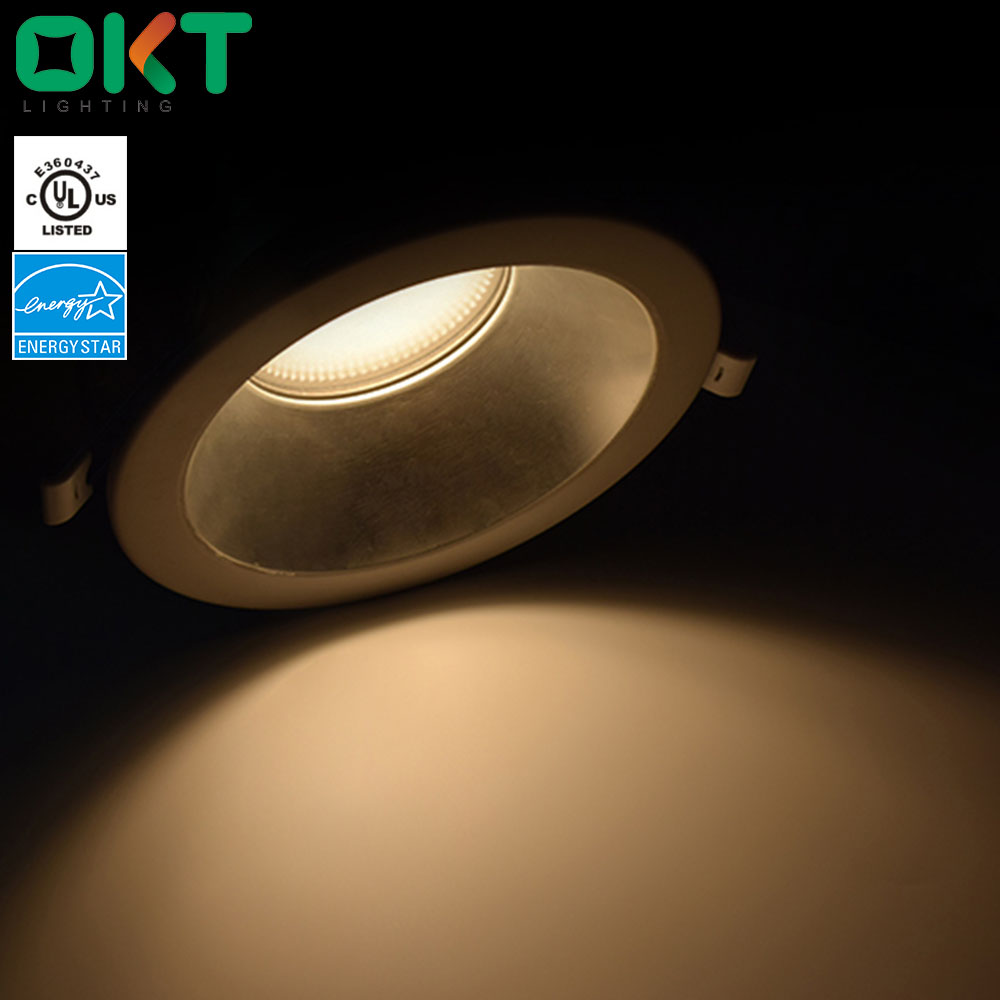

15w 20w split new construction recessed commercial led downlight
Click on the image to view the original image
Product: views:215w 20w split new construction recessed commercial led downlight
Branch: OKT Lighting
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 20:00
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
100-277V
Lamp Luminous Flux(lm):
1760
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP33
Certification:
Energy Star, UL
Model Number:
CP6-20W-XXX
Place of Origin:
Guangdong, China
Brand Name:
OKT Lighting
Wattage Options:
15W 20W
Chip:
SMD2835
ES Color Option:
3000K,3500K, 4000K,5000K
UL Driver MTBF:
> 500,000 Hours
Warranty:
5 Years
Dimmable:
Non Dimming/0-10V Dimming
colors:
Silver gray
Certificate:
cULus/Energy Star
Application:
Suitable for Damp locations
Product name:
6inch 20W Commercial LED Downlight
Item Type:
Downlights
Color Temperature(CCT):
Pure White
Working Temperature(℃):
-20 - 50
CRI (Ra>):
80
LED Light Source:
SMD2835
Warranty(Years):
5 Years
Lamp Power(W):
20
Lamp Luminous Efficiency(lm/w):
88
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month led downlight
Packaging & Delivery
Packaging Details
Standard export box and carton or as client's design
For details,pls see our order information
Port
SHENZHEN
Lead Time:
3DAYS

18w 27w 40w 50w aluminum waterproof commercial ceiling led downlight for commercial using





Performance

Model
CPX-9W-XXX
CPX-15W-XXX
CPX-20-XXX
Size Options
4" 6" 8"
4"  6"  8"
4" 6" 8"
Input Power
9W
15 W
20W
Luminous Flux
720 lm
1275 lm
1760 lm
Input Voltage
100-277V AC
100-277V AC
100-277V AC
L70 hrs
>50000 hrs
>50000 hrs
>50000 hrs
Mounting
Recessed
Recessed
Recessed
CRI
Ra>80
Ra>80
Ra>80
Cut Size
4 fits 4.7" min. to 5.2" max
6 fits 6" min. to 7.3" max
8 fits 7.4" min. to 8.9" max
4 fits 4.7" min. to 5.2" max
6 fits 6" min. to 7.3" max
8 fits 7.4" min. to 8.9" max
4 fits 4.7" min. to 5.2" max
6 fits 6" min. to 7.3" max
8 fits 7.4" min. to 8.9" max
Certificate
/
UL Listed, Energy Star,
LM79 Report
UL Listed, Energy Star,
LM79 Report
Damp Rated
YES
YES
YES

Dimensions

4INCH

6INCH

8INCH

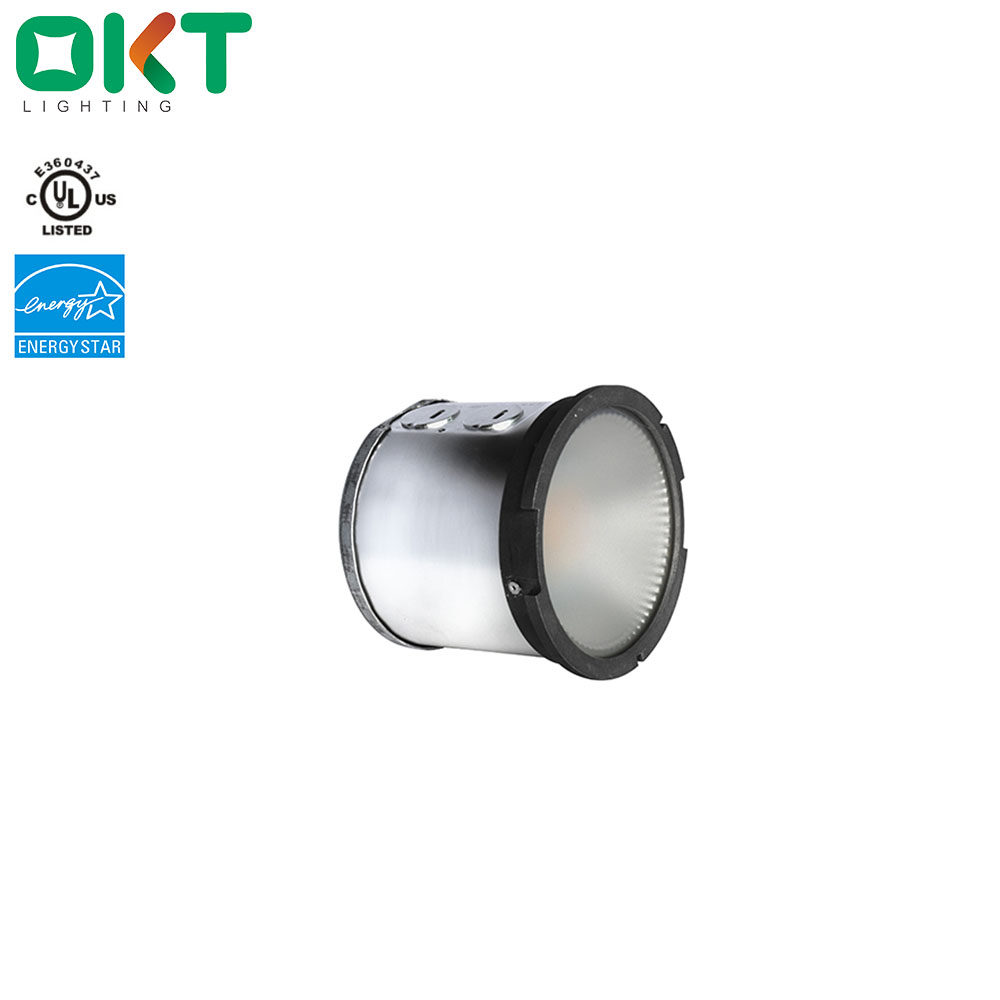

1. Lower Stock Risk By Split Design

      Split design can reduce inventory. One engine allows for seamless integration of multiple trim options with easy and tool-free installation.

2. Saving Shipping Costs

       We offer 2 package options: one is the whole lamp package, and the other is the separate package (engines and trims).

3. No Cans - Saving Job Site Cost

       The innovative design of split downlights integrate junction box and with installation clamps, making it save the housing fixtures for new construction.

4. Aesthetically Pleasing Lighting

       Beam Angle: 65 degrees for 4", 70 degrees for 6", 75 degrees for 8"

Economical Commercial Solutions for Recessed Application
