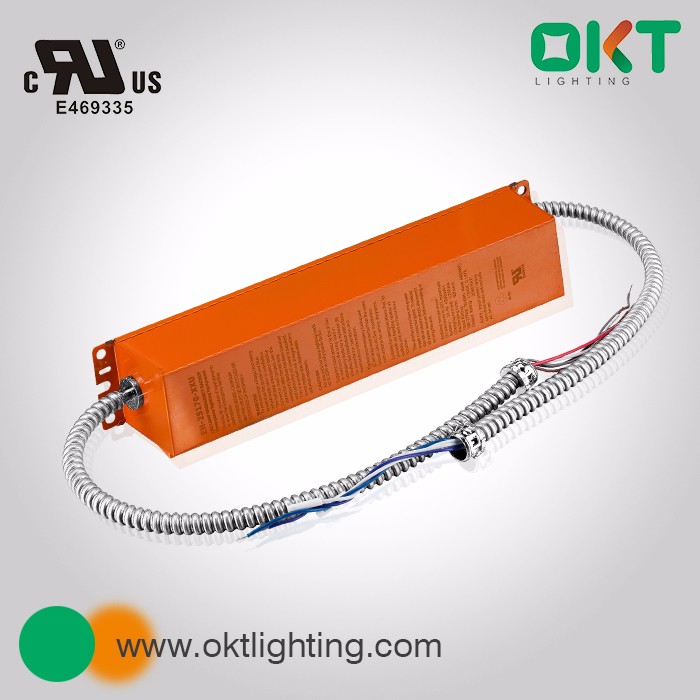

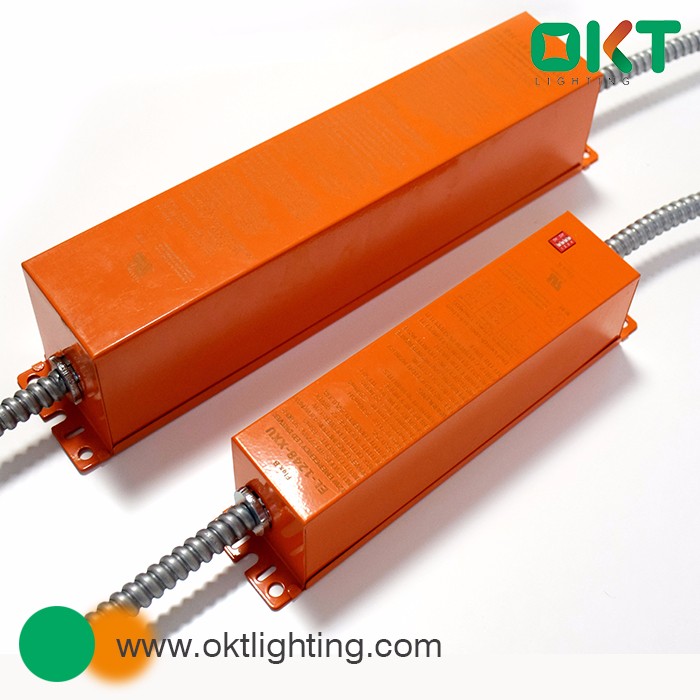

Suitable for most led products ul emergency led back-up driver power supply & plate
Click on the image to view the original image
Product： views：2Suitable for most led products ul emergency led back-up driver power supply & plate
Branch： OKT Lighting
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:00
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OKT Lighting
Model Number:
EL-2548-XX
Bulb Type:
LED
Battery Type:
Ni-Cd
Material:
Cold Rolled Steel Sheet
Usage:
Camping
Certification:
UL
Specifications:
8w,12w,18w,25w
Product Name:
ul emergency led back-up
Output Power:
8W 12W 18W 25W ul emergency led back-up
Emergency Time:
>90 Minutes ul emergency led back-up
Function:
Dial the code to suitable voltage of luminaire
Accessory:
test switch and charge indicator
Input Voltage:
100-277V AC ul emergency led back-up
Input Power:
4W ul emergency led back-up
Output Voltage:
< 48V DC or 170V DC ul emergency led back-up
Application:
for most led lighting products
Certificate:
ul emergency led back-up
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
6PCS/CTN,Contact sales for details
Port
SHENZHEN
Lead Time:
3 days after payment

Suitable for most led products ul emergency led back-up driver power supply & plate



Product Description





Description

The OKT  ul emergency led back-up  is UL,CUL Listed that be used for both normal and emergency operation.the  ul emergency led back-up   switches to the emergency mode and operates for 90 minutes after blackout which including a battery,charger and converter circuit in a single can. It is available in different mounting configurations for individual fixture requirements.



Specification

ul emergency led back-up for led product with external driver:

ModelOutput PowerMax.Connected LoadInput VoltageEmergency Time Output Voltage
EL-0848-XX  ul emergency led back-up 8W (max)0.5 A

100-277VAC/

120-250V

>90 Minutes12-48V DC
EL-1248-XX  ul emergency led back-up 12W (max)0.75A

100-277VAC/

120-250V

>90 Minutes12-48V DC
EL-2548-XX  ul emergency led back-up 25W (max)1.38 A

100-277VAC/

120-250V

>90 Minutes12-48V DC


ul emergency led back-up for led product with inernal driver:

ModelOutput PowerInput PowerInput VoltageEmergency Time Output Voltage
EH-18170-XX  ul emergency led back-up 18W (max)6W

100-277VAC/

120-250V

>90 Minutes170V DC
EH-25170-XX  ul emergency led back-up 25W (max)6W

100-277VAC/

120-250V

>90 Minutes170V DC



Advantages

Dial the code to suitable voltage of luminaire

Includes test switch and charge indicator accessory

for use with switched or non switched fixtures

UL and CUL Listed



Form for dial the code to suitable rated voltage of luminaire





Size





Model8W12W18W25W
A55.4MM55.4MM69MM69MM
B55MM55MM71MM71MM
C264.6MM264.6MM377MM377MM
D69MM55.4MM69MM69MM
E22.2MM22.2MM222MM22.2MM



How to install



Typical Wiring Diagram for 25W LED emergency back up driver  with internal led product



Typical Wiring Diagram for 25W LED emergency back up driver with external led product



PLS CONTACT SALES FOR MORE DETAILS ABOUT THIS ul emergency led back-up!
