- Input Voltage(V):
- AC100-277V /120-347V
- Lamp Luminous Flux(lm):
- 4400
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -20 - 50
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- ip22
- Certification:
- BV, UL
- Place of Origin:
- Guangdong, China
- Brand Name:
- OKT Lighting
- Model Number:
- VP22-DM-XXE
- Application:
- Residential
- Light Source:
- LED
- Lamp Luminous Efficiency(lm/w):
- 110
- Function available:
- 0-10V Dimming
- Driver:
- driver with junction box
- Mounting:
- recessed
- Product name:
- ul listed lumisheet led light pane
- Warranty(Years):
- 5
- Supply Ability:
- 30000 Piece/Pieces per Month
- Packaging Details
- Package: 2 pcs/ctn
Carton size: 67*67*13cm
Gross Weight: 8KG
- Port
- shenzhen
UL listed lumisheet led light panel with led input voltage 100-347vac
Description

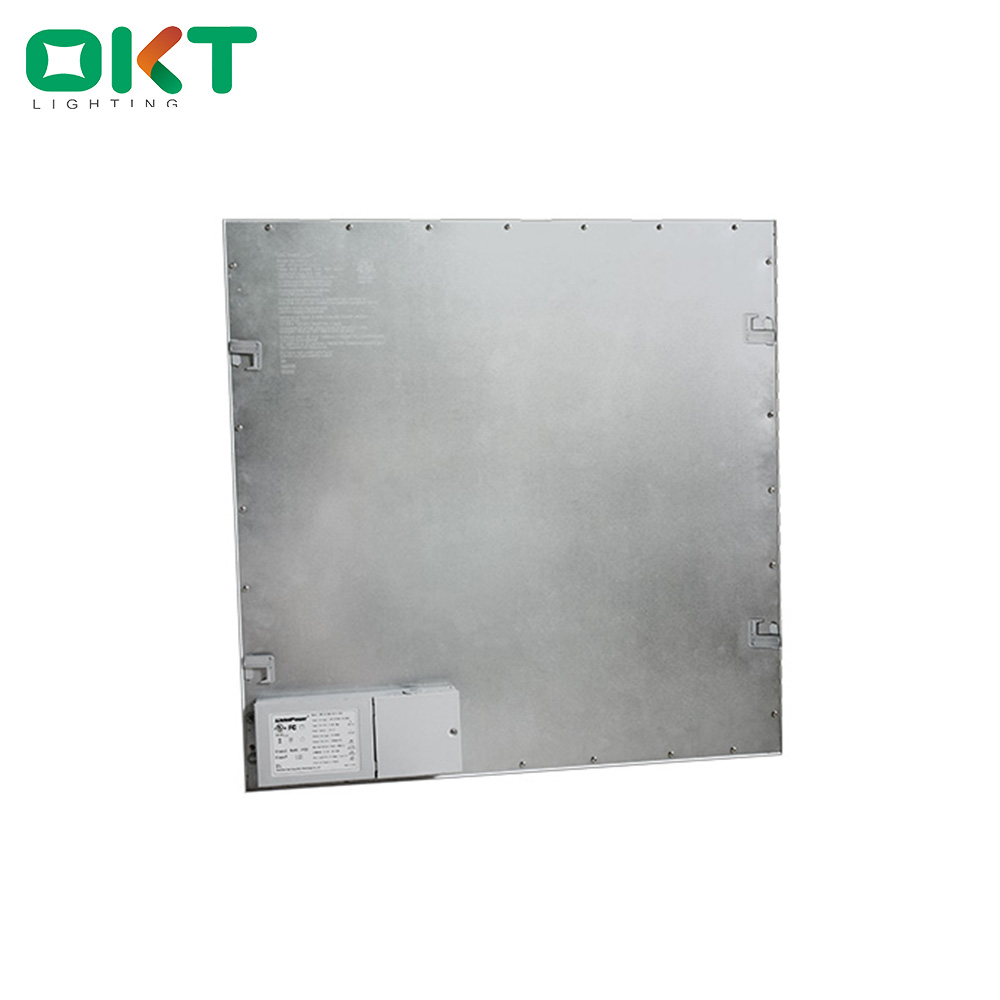

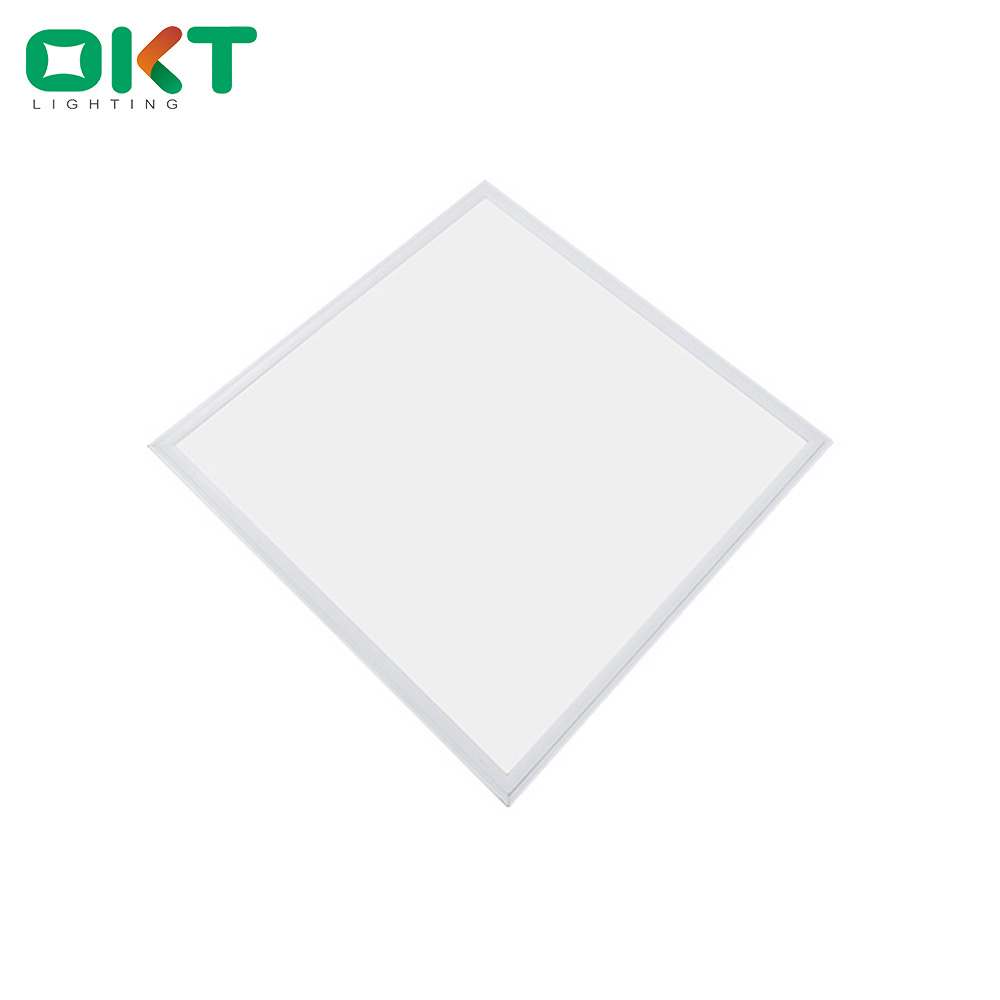

The OKT 2x2ft UL listed lumisheet led light panel reach up to 110 lumens per watt in 100~277 VAC or 120-347 VAC Input Voltage with included UL Recognized constant current driver which is available in 4000k, 5000k DLC CCT Options with 0-10V dimming available. It is a well-designed, lay-in ceiling troffer fixture for new construction applications or retrofitting existing fluorescent troffer light fixtures.
Specification
Model # | Input waltage | Input voltage | Size | Lumen | Certificate |
VS22-DM** | 40W | 100-277V AC | 2x2ft | 4000lm/ 5000lm | ETL,UL, DLC |
VP22-DM-XXE | 40W | 120-347V AC | 2X2FT | 4000lm/ 5000lm | UL, DLC |
More option
Model # | Input waltage | Input voltage | Size | Lumen | Certificate |
VS24-DM** | 50W | 100-277V AC | 2x4FT | 5000lm/ 6250lm | ETL,UL, DLC |
VP24-DM-XXE | 50W | 120-347V AC | 2X4FT | 5000lm/ 6250lm | UL, DLC |
VS14-DM** | 40W | 100-277V AC | 1x4FT | 4000lm | UL, DLC |
VP14-DM-XXE | 40W | 120-347V AC | 1x4FT | 4000lm | UL, DLC |
Why OKT
Shenzhen OKT Lighting CO.,Ltd, Founded in 2008;
Specialized in researching, manufacturing and sales of commercial LED lighting fixtures, include panel lights, troffers, downlights, linear pendant fixtures and LED emergency drivers;
All have achieved certifications such as UL, ETL, Energy Star, DLC, TITLE 24, TÜV, CSA, SASO and FCC;
A minimum five-year warranty.
Focus
Focus entirely on the North American market and in just a few years it has already gained a firm footing in this market;
Focused on R&D, producing LED products that are more energy-efficient, cost-effective and aesthetically pleasing than those already on the market;
Focus on quality control, We take more than just quality products for manufacturers to thrive.
