- Input Voltage(V):
- 120-277V AC
- Lamp Luminous Flux(lm):
- 4000
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -20 - 50
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP20
- Certification:
- BV, CE, ETL, FCC, RoHS
- Place of Origin:
- Guangdong, China
- Brand Name:
- OKT LIGHTING
- Model Number:
- TR22-DM-
- Application:
- Residential
- Light Source:
- LED
- Lamp Luminous Efficiency(lm/w):
- 100
- Power Options:
- 27W,40W
- Size Options:
- 2x2ft
- DLC CCT Options:
- 4000K 5000K
- Function available:
- 0-10V Dimming/motion sensor
- Driver:
- Fire rated design with Junction box
- Mounting:
- Recessed
- Certificate:
- UL,DLC,Lighting Facts,LM79
- Product Name:
- led troffer retrofit panel light
- LED Light Source:
- LM80 Chip
- Warranty(Years):
- 5
- Supply Ability:
- 30000 Piece/Pieces per Month
- Packaging Details
- Standard Export Box and Carton or as Client's Design
Quantity Per Carton:1PCS/CTN
Carton Size: 63.2*63.2*11.2CM
- Port
- Shenzhen
- Lead Time:
Quantity(Pieces) 1 - 10 >10 Est. Time(days) 7 To be negotiated

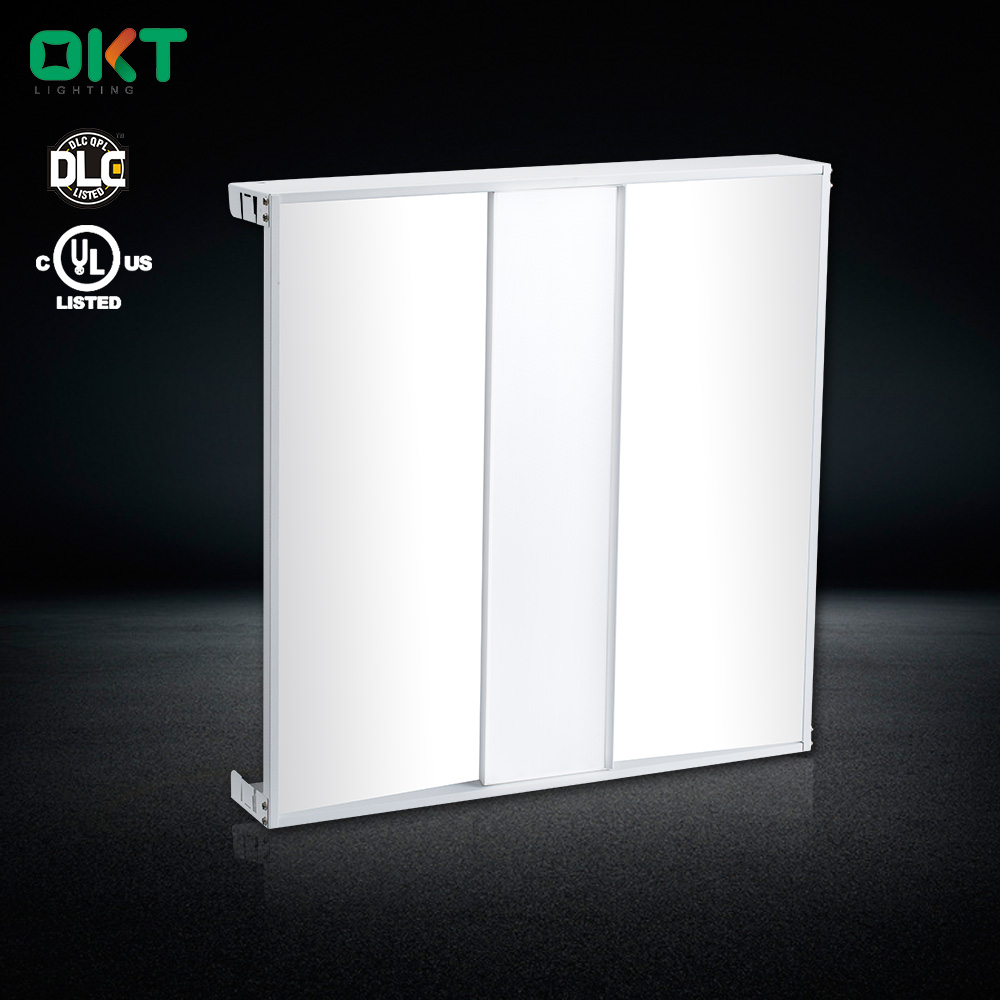

new construction 2X2/2X4 DLC ETL led troffer retrofit panel light with sensor
Performance Summary
Model | TR22-DL-XXE | TR22-DM-XXE | TR22-DM347-XXE |
Input Wattage | 27 Watts | 40 Watts | 40 Watts |
Input Voltage | 100-277V AC | 100-277V AC | 120-347V AC |
Delivery Lumens | 2700 lm | 4400 lm | 4400 lm |
Efficacy | 100 lm/w | 110 lm/w | 110 lm/w |
Color Rendering Index ( CRI ) | Ra>80 | Ra>80 | Ra>80 |
Power Factor | PF>0.9 | PF>0.9 | PF>0.9 |
Dimmable | 0-10V Dimming | 0-10V Dimming | 0-10V Dimming |
Function Optional | Motion Sensor and Emergency Backup | Motion Sensor and Emergency Backup | N/A |
Warranty | 5 Years | 5 Years | 5 Years |
Certificate | UL, ETL ,DLC | UL, ETL ,DLC | UL, ETL ,DLC |
Damp Rated | YES | YES | YES |

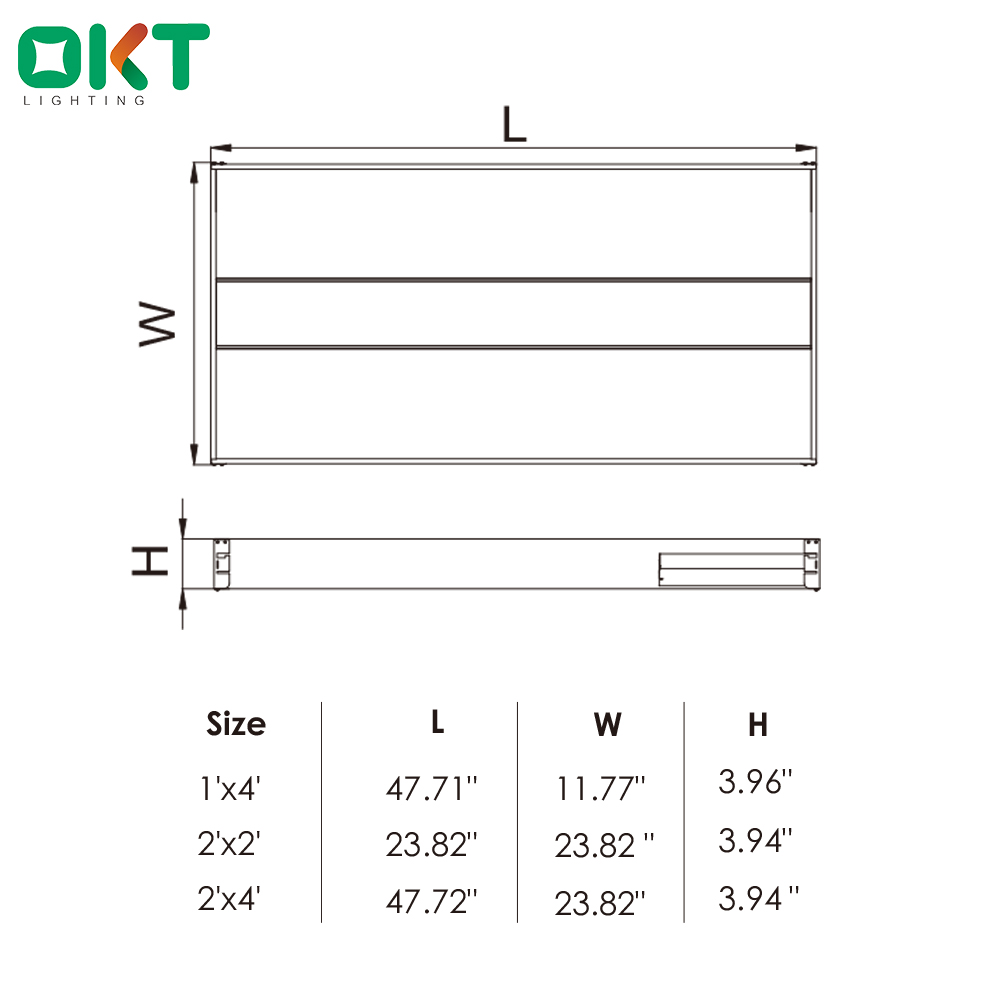

Structure
Test Report
Hot Products
Company Information
Profession
Shenzhen OKT Lighting CO.,Ltd, Founded in 2008;
Specialized in researching, manufacturing and sales of commercial LED lighting fixtures, include panel lights, troffers, downlights, linear pendant fixtures and LED emergency drivers;
All have achieved certifications such as UL, ETL, Energy Star, DLC, TITLE 24, TÜV, CSA, SASO and FCC;
A minimum five-year warranty.
Focus
Focus entirely on the North American market and in just a few years it has already gained a firm footing in this market;
Focused on R&D, producing LED products that are more energy-efficient, cost-effective and aesthetically pleasing than those already on the market;
Focus on quality control, We take more than just quality products for manufacturers to thrive.
