UL CUL DLC 2*2 recessed led backlight panel with uniform light distribution
Specification
| Model | Item NO. | Input Power | Luminous Flux | Input Voltage | Certificate |
| 2x2ft | SP22-DM** | 40W | 4192LM | 100-277V AC | ETL,cETL,DLC |
| 2x2ft | SP22-DH** | 52W | 5299LM | 100-277V AC | ETL,cETL,DLC |
Family Products
| Item | Input Power | Luminous Flux | Certificate |
| 2x4ft | 52W | 5140LM | ETL,cETL,DLC |
| 2x4ft | 65W | 6204LM | ETL,cETL,DLC |
| 1X4ft | 40W | 3719LM | ETL,cETL,DLC |
| 1x4ft | 52W | 5071LM | ETL,cETL,DLC |
Product Display for 600x600 UL led panel
2. Back Side
3. Suspending installation
4. Surface mounted kit for led light panels
Why Choose OKT UL led panel?
The OKT dimmable 600x600 LED light ceiling mount kit have approved DESIGNLIGHTS CONSORTIUM (DLC) and UL, which reaches 91lumens per watt in 100~277 VAC Input. led panel lamps included UL Recognized constant current driver and designed for new construction applications or retrofitting existing fluorescent troffer light fixtures.
- UL and cUL Listed, DLC Listed, LM79 Report and Lighting Facts Available
- 0-10v Dimming Available
- Trim Color Options: White
- Installation: Recessed, surface mounting, suspending
- Suitable for Damp locations
UL Driver MTBF> 50,000 Hours
Comparison
OKT 2x2ft 600x600 LED light ceiling mount kit VS Fluorescent Tube for school in Cadana.
LM79 Report
- This OKT 0-10V dimmable 600x600 LED light ceiling mount kit was tested with no seasoning which was in compliance with IES LM-79-08.
- It was operated at rated voltage or at voltage required by manufacturer.
- The ambient temperature of the sample was maintained at 25°C±1°C during measurement.
- And relative humidity is less than 65%.
Drawings
| Item | Outer Size | Light-Emitting Area | Thickness | Height |
| 2x2ft LED Light Panels | 23.7"x23.7" | 21.34"x21.34" | 0.47" | 1.9" |

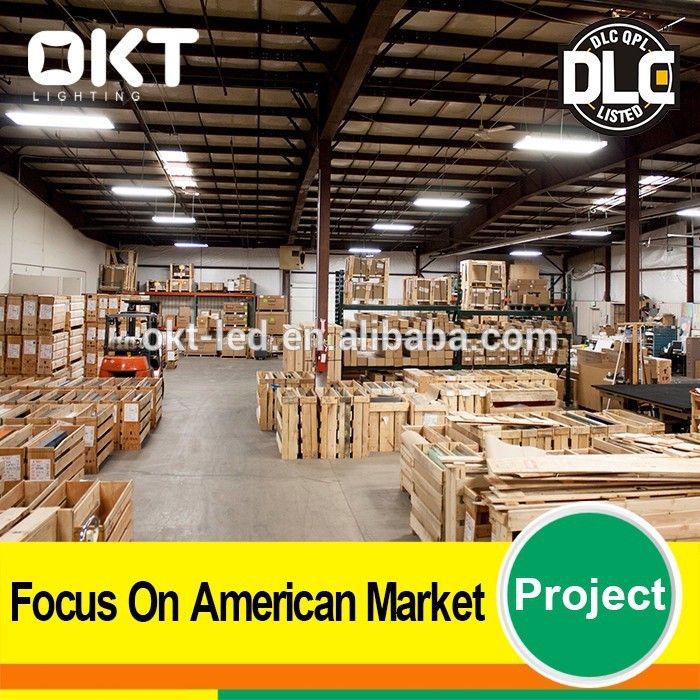

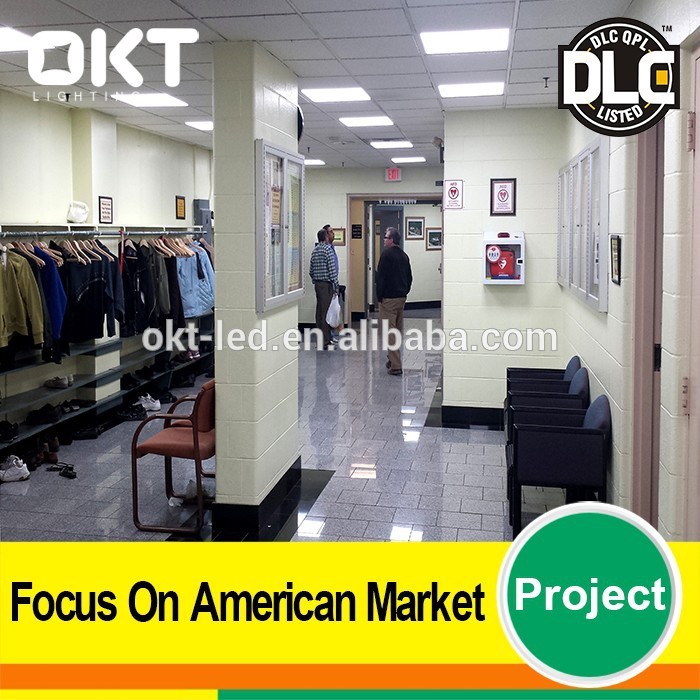

Projects
OKT dimmable 600x600 LED light ceiling mount kits are for both retrofit application to existng fluorescent fixtures and new construction.Many OKT 600x600 UL led panels are installed around the North American, especially in the united States, such as:
- Medium in USA;
- Seven Eleven in USA;
- Supermarket in USA:
- School in Canada.
Certifications
1. We are focusing on American Market, which all dimmable led panel lamps are listed on UL, CUL, DLC, FCC, Lighting Facts.
2. We"re available to provide UL, CUL, DLC Multiple List and Private Label for 30x120cm led panel lamp if necessary.
Shenzhen OKT Lighting understands “QUALITY IS LIFE”. our staff keep this conception as their duty. So every production procession is made according to ISO9001 Quality Certification and ISO14001 Environment Management System. What"s more, every operator must be well-trained before working. Meanwhile, our quality control team and R&D team will check and test the semi-finished products and finished products by many kinds of instruments carefully all the time.
1. OKT applies some technical equipments, such as SMT, Auto Aging Line, Integrating sphere, Drop Tester, Transport Simulation Tester during our led panel lamps production process;
2. Those equipments make us deliver qualified products and offer more than 5 years" warranty for led panel lamps.
FAQ
Q1: How to install your dimmable led panel lamp ?
A: Normally we have three installation methods, that is recessed, suspending and surface mounted, check details as below:
| Model | Installation Method |
| 2x2ft led light panels | Recessed, Suspending, Surface Mounted |
| 2x4ft dimmable square led light panels | Recessed, Suspending |
| 1x4ft square flat led light panels | Recessed, Suspending |
Q2: We are the wholesaler, can you offer Multiple List and Private Label according to our requests?
A: YES. We will help you to handle ML process and our designer will design the private label as required.
Q3: Which CCT have passed DLC?
A: 4000K and 5000K led panel lights are listed on DLC.
Q4: How much for shipping cost?
A: we have long-standing forwarder who can offer the most competitive price for your reference.Normally, For small order, express will be best. while for bulk order, shipping by sea is the best option but it takes much time.
Q5: How about your packing?
A: We have two packing solutions for your choices:
| Packing Options | PCS/CTN | Carton Size | G.W |
| Option 1 for Ultra slim led panel light | 2PCS/CTN | 129*70*17cm | 23KG |
| Option 2 for Ultra slim led panel light | 4PCS/CTN | 129*70*17cm | 35KG |
Q6: How about your warranty terms?
A: We offer 5 Years Warranty;
| situation 1 | Under the terms of this warranty, if the product has a failure occurs under normal usage within warranty period, OKT LIGHTING will provide free new products based on the proof-documents. |
| situation 2 | If failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, OKT lighting will provide paid maintence within warranty period. |
More concerned for OKT led panel lamps, pls do not hesitate to inquiry now!
