UL DLC led panel light troffer with motion sensor function 0-10V dimming
Specification of led panel light troffer
| Model | Item NO. | Input Power | Luminous Flux | Input Voltage | Certificate |
|---|---|---|---|---|---|
| unique thermal management LED troffer | TR22-DL** | 27W | 2700LM | 100-277V AC | UL, cUL,DLC |
| unique thermal management LED troffer | TR22-DM** | 40W | 4000LM | 100-277V AC | UL, cUL,DLC |
| unique thermal management LED troffer | TR22-DM347** | 40W | 4000LM | 347-480V AC | UL, cUL |
Product Family for led panel light
| Item | Input Power | Luminous Flux | Certificate |
|---|---|---|---|
| 2x4ft led troffer | 40W | 4000LM | UL, cUL,DLC |
| 2x4ft led troffer | 62W | 6200LM | UL, cUL,DLC |
| 2x4ft led troffer | 40W | 4000LM | UL, cUL |
Details Display for led panel light troffer

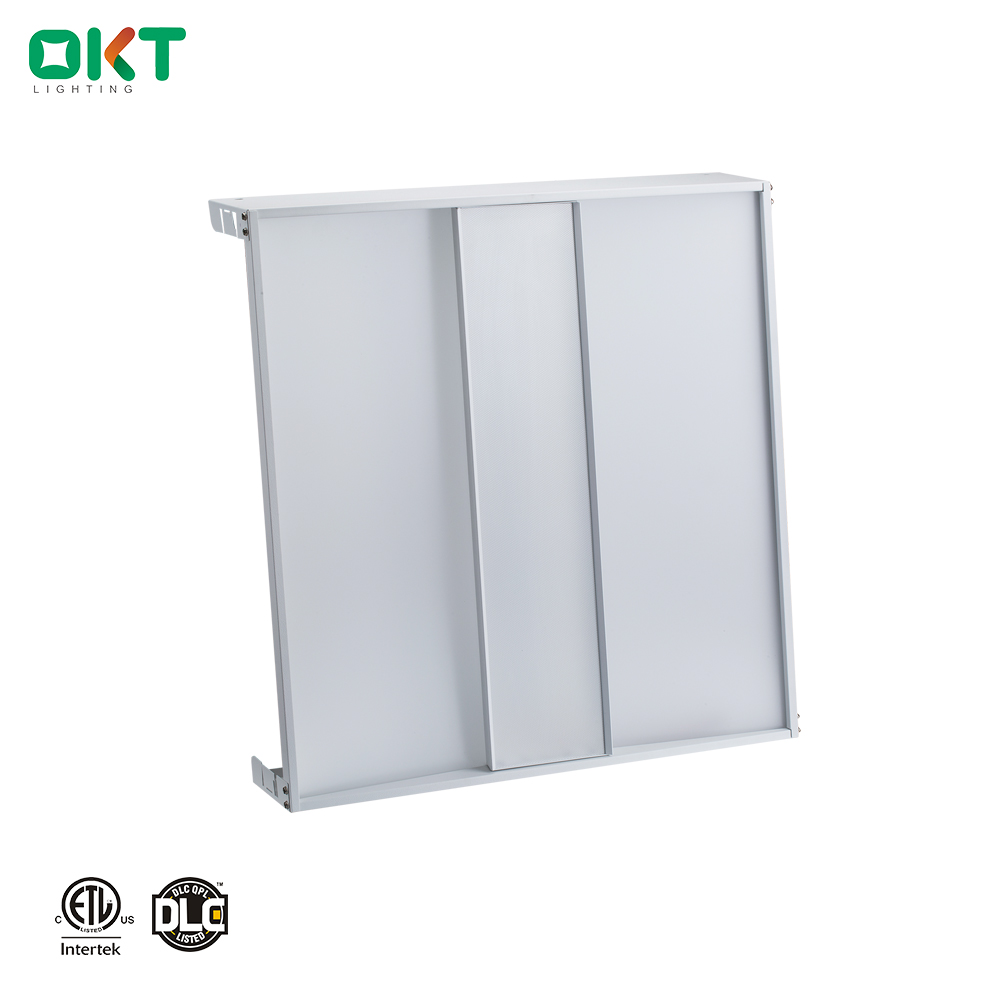

1. Front Size
2. Back Side
Features of led panel light troffer ht
The OKT unique thermal management UL led panel light troffer has approved DESIGNLIGHTS CONSORTIUM (DLC) and UL, which reach 91lumens per watt in 100~277 VAC Input. This UL led panel light troffer included UL Recognized constant current driver and designed for new construction applications or retrofitting existing fluorescent direct led troffer luminaires.
UL and cUL Listed, DLC Listed, LM79 Report and Lighting Facts Available;
0-10v Dimming Available(Recommended Dimmer: LUTRON DIVA 0-10V CONTROL, RENOIR || 0-10V DIMMING CONTROL-DVTV/DVSCTV);
Trim Color Options: White or Silver;
Installation: Recessed, surface mounted kit, suspension;
Suitable for Damp locations;
LM79 Report of led panel light troffer with motion sensor
1. This OKT led panel light troffer with motion sensor was tested with no seasoning which made in compliance with IES LM-79-08.
2. It was operated at rated voltage or at voltage required by manufacturer.
3. The ambient temperature of the sample was maintained at 25°C±1°C during measurement.
4. And relative humidity is less than 65%.
Structure of led panel light troffer
A: Our standard packing is 2pcs/carton
Q5: What quality you can offer?
A: We offer 5 Years Warranty;
| situation 1 | Under the terms of this warranty, if the product has a failure occurs under normal usage within warranty period, OKT LIGHTING will provide free new products based on the proof-documents. |
| situation 2 | If failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, OKT lighting will provide paid maintence within warranty period. |
Why OKT
Profession
Shenzhen OKT Lighting CO.,Ltd, Founded in 2008;
Specialized in researching, manufacturing and sales of commercial LED lighting fixtures, include panel lights, troffers, downlights, linear pendant fixtures and LED emergency drivers;
All have achieved certifications such as UL, ETL, Energy Star, DLC, TITLE 24, TÜV, CSA, SASO and FCC;
A minimum five-year warranty.
Focus
Focus entirely on the North American market and in just a few years it has already gained a firm footing in this market;
Focused on R&D, producing LED products that are more energy-efficient, cost-effective and aesthetically pleasing than those already on the market;
Focus on quality control, We take more than just quality products for manufacturers to thrive.
More concerned for OKT led panel light troffer , pls do not hesitate to inquiry now.
