Home > Products > DLC approved 0-10v dimmable color temperature adjustable led panel light 2'x4' 65w

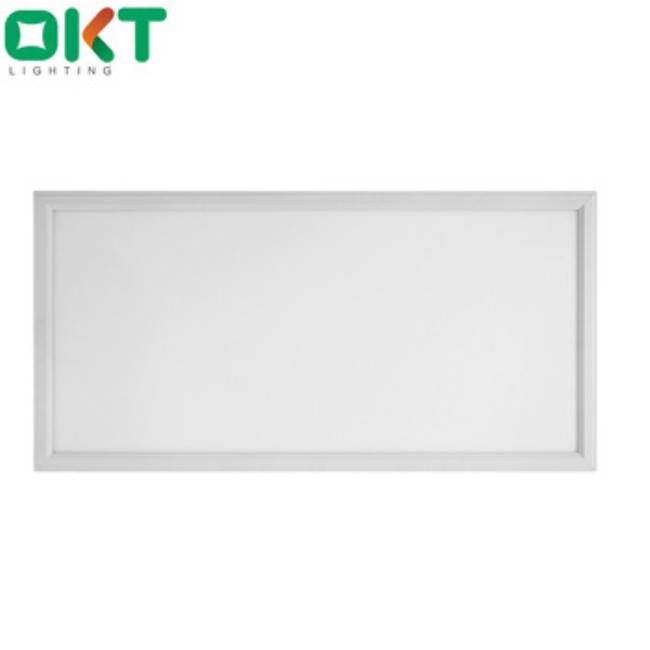

DLC approved 0-10v dimmable color temperature adjustable led panel light 2'x4' 65w
Click on the image to view the original image
Product： views：3DLC approved 0-10v dimmable color temperature adjustable led panel light 2'x4' 65w
Branch： OKT LIGHTING
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:01
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
120-277V
Lamp Luminous Flux(lm):
5190LM
CRI (Ra>):
75
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP44
Certification:
UL
Place of Origin:
Guangdong, China
Brand Name:
OKT LIGHTING
Model Number:
SP24-DH**
Light Source:
LED
Product Name:
color temperature adjustable led panel light
Power:
color temperature adjustable led panel light
Chip:
passed LM80 color temperature adjustable led panel light
Dimension:
602*602*13mm color temperature adjustable led panel light
Light efficacy:
Up to 100lm/W color temperature adjustable led panel light
Function available:
0-10V Dimming color temperature adjustable led panel light
Driver:
Fire rated design with Junction box
Mounting:
color temperature adjustable led panel light
Certificate:
UL,DLC,Lighting Facts,LM79 linear led panel light
More Options:
color temperature adjustable led panel light
Item Type:
Panel Lights
Color Temperature(CCT):
Pure White
LED Light Source:
SMD2835
Warranty(Years):
5
Lamp Power(W):
65
Lamp Luminous Efficiency(lm/w):
100
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export box and carton or as client's design Quantity
Port
Shenzhen
Lead Time:
Samples:3~7days; Mass Production:12~25 days



DLC approved 0-10v dimmable color temperature adjustable led panel light 2"x4" 65w



Description of color temperature adjustable led panel light

The color temperature adjustable led panel light delivers high lumens while achieving 90 lumens per watt  in 100~277 VAC Input with fired rated junction box. This 2*2FT retrofit cold white led panel light  is available in 4000k, 5000k DLC CCT Options and has 0-10V dimming, which is perfect for new construction applications or retrofitting existing fluorescent troffer light fixtures with,widely used in office spaces, major retail stores, education, government, healthcare, and hospitality.



Specification of color temperature adjustable led panel light

ModelItem NO.Input PowerLuminous FluxDLC CCT OptionInput VoltageDimmingCertificate
licolor temperature adjustable led panel light 40w VS22-DM**40 Watts3700LM4000K 5000K100-277V AC0-10V DimmingUL,DLC

linear led panel light 55w

VS22-DH**55 Watts4900LM4000K 5000K100-277V AC0-10V DimmingUL,DLC
600x1200 linear led panel light 40w VS24-DM**50 Watts4600LM4000K 5000K100-277V AC0-10V DimmingUL,DLC
600x1200 color temperature adjustable led panel light VS24-DH**63 Watts5600LM4000K 5000K100-277V AC0-10V DimmingUL,DLC
300x1200 color temperature adjustable led panel light VS14-DM**40 Watts3600LM4000K 5000K100-277V AC0-10V DimmingUL

300x1200 color temperature adjustable led panel light

VS14-DH**50 Watts4500LM4000K 5000K100-277V AC0-10V DimmingUL,DLC



Advantage of color temperature adjustable led panel light

OKT 600x600 led panel light are UL, CUL , DLC  listed, which is capable of retrofit application to existng fluorescent fixtures or new architectural recessed, Main characters:

  • cULus, DLC Listed, LM79 Report Available
  • More than 90lm/w
  • Fire rated design with Junction box
  • 0-10V dimming available
  • 5 Years Warranty
  • White or Silver Trim Color Options
  • Suitable for Damp locations
  • Accessary: Driver Box And Clips for T-Bar Included

Details Display





Customer Feedback

  • We are happy with 2x2 led flat panel and quality, let’s work on more.  ---  Luca (from NY,USA)
  • 100% love the 2x2 led flat panel I will be ordering more this week. ----Kody(from LA,USA)
  • Thank you for your help and for the photos, are very explicit---Jose from Mexico
  • We are very pleased with the quality of retrofit led modern qsuare ceiling light led 36w and the performance.------Richard from CANADA
  • the retrofit cold white dimmable 2x2 led flat panel  has arrived and is excellent------John from Canada

 Packing Infomation

ModelItem No.Sample PackMass Pack
QTY/CTN (pcs)Carton Size (cm)G.W(KG)QTY/CTN (pcs)Carton Size (cm)G.W(KG)
2x2 50w ul led panel light VS22-DM** VS22-DH**270*69*1714470*69*1721
2*4ft 50w ul led panel light VS24-DM** VS24-DH**2129*70*17274129*70*1745
1*4ft 50w ul led panel light VS14-DH**2129*40*17164129*40*1726
VS14-DM**



Warranty

5 years since the date of purchase for dimmable 2x2 led flat panel,welcome to viist our web to download OKT warranty terms.



More detailed info for OKT color temperature adjustable led panel light , pls do not hesitate to inquiry now!
