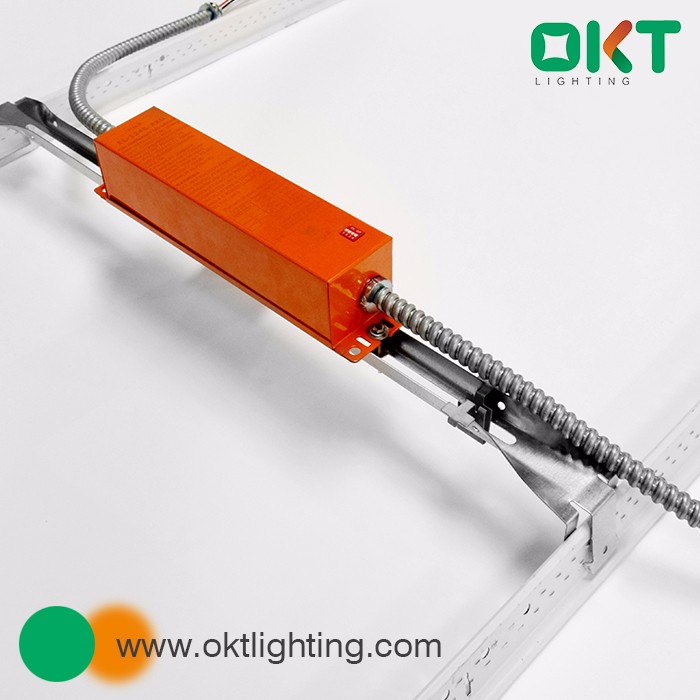

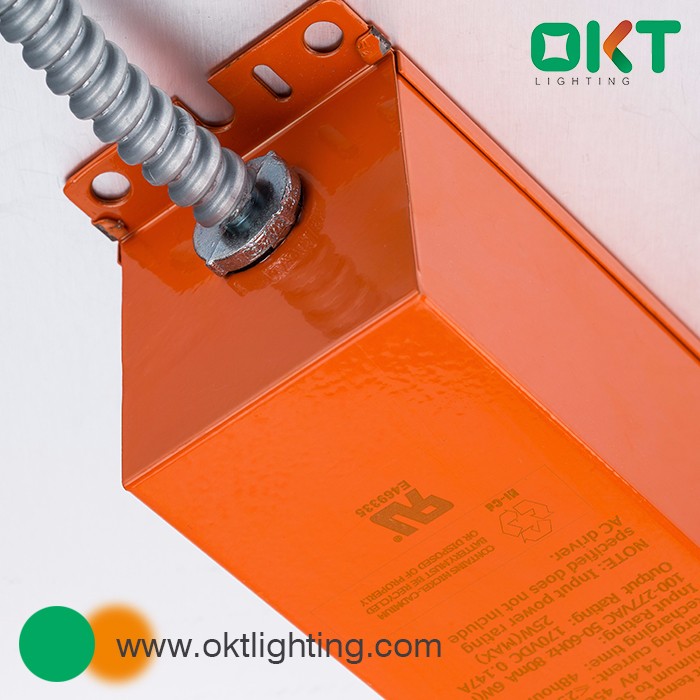

Low voltage 18w 25w cul ul led emergency light conversion kit for led panel/led troffer
Remark:
This item have been upgraded to the second generation( UL listed with field installable) , pls click here for more information.
Description
The OKT led emergency light conversion kit is UL,CUL Listed that be used for both normal and emergency operation.the emergency kit for led tube switches to the emergency mode and operates for 90 minutes after blackout which including a battery,charger and converter circuit in a single can. It is available in different mounting configurations for individual fixture requirements.
Specification
led emergency light conversion kit for led fixtures with external driver:
| Model | Output Power | Max.Connected Load | Input Voltage | Emergency Time | Output Voltage |
| EL-0848-XX led emergency light conversion kit | 8W (max) | 0.5 A | 100-277VAC/ 120-250V | >90 Minutes | 12-48V DC |
| EL-1248-XX led emergency light conversion kit | 12W (max) | 0.75A | 100-277VAC/ 120-250V | >90 Minutes | 12-48V DC |
| EL-2548-XX led emergency light conversion kit | 25W (max) | 1.38 A | 100-277VAC/ 120-250V | >90 Minutes | 12-48V DC |
led emergency light conversion kit for led fixtures with inernal driver:
| Model | Output Power | Input Power | Input Voltage | Emergency Time | Output Voltage |
| EH-18170-XX led emergency light conversion kit | 18W (max) | 6W | 100-277VAC/ 120-250V | >90 Minutes | 170V DC |
| EH-25170-XX led emergency light conversion kit | 25W (max) | 6W | 100-277VAC/ 120-250V | >90 Minutes | 170V DC |
Dial the code to suitable voltage of luminaire
Includes test switch and charge indicator accessory
for use with switched or non switched fixtures
UL and CUL Listed
Form for dial the code to suitable rated voltage of luminaire
| Model | 8W | 12W | 18W | 25W |
| A | 55.4MM | 55.4MM | 69MM | 69MM |
| B | 55MM | 55MM | 71MM | 71MM |
| C | 264.6MM | 264.6MM | 377MM | 377MM |
| D | 69MM | 55.4MM | 69MM | 69MM |
| E | 22.2MM | 22.2MM | 222MM | 22.2MM |
Typical Wiring Diagram for 25W emergency led driver with internal led product
Typical Wiring Diagram for 25W LED emergency back up driver with external led product
PLS CONTACT SALES FOR MORE DETAILS ABOUT THIS led emergency light conversion kit !
View the second generation( UL listed with field installable) , pls click here for more information.
