Home > Products > DLC UL approved 100lm/w led retrofit kit for 2 by 4 fixtures 52w 65w
DLC UL approved 100lm/w led retrofit kit for 2 by 4 fixtures 52w 65w
Click on the image to view the original image
Product： views：3DLC UL approved 100lm/w led retrofit kit for 2 by 4 fixtures 52w 65w
Branch： OKT LIGHTING
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:01
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
120-277V
Lamp Luminous Flux(lm):
6200lm
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP44
Certification:
UL
Place of Origin:
Guangdong, China
Brand Name:
OKT LIGHTING
Model Number:
SP24-DH-XXX
Light Source:
LED
Product Name:
led retrofit kit for 2 by 4 fixtures
Power:
55w 65w Options suspended linear led fixtures ul
Chip:
passed LM80suspended linear led fixtures ul
Dimension:
602*602*13mm 2x4 led flush mount ceiling light
Light efficacy:
Up to 100lm/W 2x4 led flush mount ceiling light
Function available:
0-10V Dimming 2x4 led flush mount ceiling light
Driver:
Fire rated design with Junction box
Mounting:
2x4 led flush mount ceiling light
Certificate:
UL,DLC,Lighting Facts,LM79 2x4 led flush mount ceiling light
More Options:
dlc ul led retrofit kit for 2 by 4 fixtures
Item Type:
Panel Lights
Warranty(Years):
5
Color Temperature(CCT):
Pure White
Lamp Power(W):
65
LED Light Source:
SMD2835
Lamp Luminous Efficiency(lm/w):
100
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export box and carton or as client's design Quantity
Port
Shenzhen
Lead Time:
Samples:3~7days; Mass Production:12~25 days



DLC UL approved 100lm/w led retrofit kit for 2 by 4 fixtures 52w 65w

The led retrofit kit for 2 by 4 fixtures delivers high lumens while achieving 90 lumens per watt  in 100~277 VAC Input with fired rated junction box. This 2*2FT  square 600x1200mm flat panel   is available in 4000k, 5000k DLC CCT Options and has 0-10V dimming, which is perfect for new construction applications or retrofitting existing fluorescent troffer light fixtures with,widely used in office spaces, major retail stores, education, government, healthcare, and hospitality.



Specification of led retrofit kit for 2 by 4 fixtures

ModelItem NO.Input PowerLuminous FluxDLC CCT OptionInput VoltageDimmingCertificate
led retrofit kit for 2 by 2 fixtures 600x600
VS22-DM**40 Watts3700LM4000K 5000K100-277V AC0-10V DimmingUL,DLC

led retrofit kit for 2 by 2 fixtures 600x600

VS22-DH**55 Watts4900LM4000K 5000K100-277V AC0-10V DimmingUL,DLC

led retrofit kit for 2 by 4 fixtures  600x1200


VS24-DM**50 Watts4600LM4000K 5000K100-277V AC0-10V DimmingUL,DLC
dimmable 1200 x 600 led retrofit kit for 2 by 4 fixtures VS24-DH**63 Watts5600LM4000K 5000K100-277V AC0-10V DimmingUL,DLC
dimmable 1200 x 300mm  led retrofit kit for 1 by 4 fixtures VS14-DM**40 Watts3600LM4000K 5000K100-277V AC0-10V DimmingUL

dimmable 1200 x 300mm  led retrofit kit for 2 by 4 fixtures

VS14-DH**50 Watts4500LM4000K 5000K100-277V AC0-10V DimmingUL,DLC



Advantage of led retrofit kit for 2 by 4 fixtures

OKT led retrofit kit for 2 by 4 fixtures are UL, CUL , DLC  listed, which is capable of retrofit application to existng fluorescent fixtures or new architectural recessed, Main characters:

  • cULus, DLC Listed, LM79 Report Available
  • More than 90lm/w

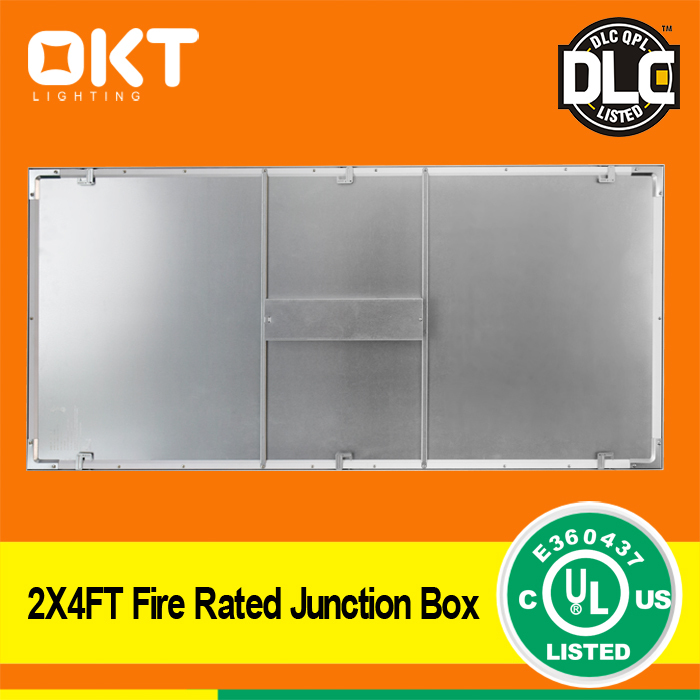

  • Fire rated design with Junction box
  • 0-10V dimming available
  • 5 Years Warranty
  • White or Silver Trim Color Options
  • Suitable for Damp locations
  • Accessary: Driver Box And Clips for T-Bar Included

Details Display





Customer Feedback

  • We are happy with led retrofit kit for 2 by 4 fixtures listed and quality, let’s work on more.  ---  Luca (from NY,USA)
  • 100% love the led retrofit kit for 2 by 4 fixtures I will be ordering more this week. ----Kody(from LA,USA)
  • Thank you for your help and for the photos, are very explicit---Jose from Mexico
  • We are very pleased with led linear fixture dlc listed and the performance.------Richard from CANADA
  • the cul led panels has arrived and is excellent------John from Canada

 Packing Infomation

ModelItem No.Sample PackMass Pack
QTY/CTN (pcs)Carton Size (cm)G.W(KG)QTY/CTN (pcs)Carton Size (cm)G.W(KG)
2x2 led retrofit kit for 2 by 4 fixtures VS22-DM** VS22-DH**270*69*1714470*69*1721
2x4 led retrofit kit for 2 by 4 fixtures VS24-DM** VS24-DH**2129*70*17274129*70*1745
1x4 suspended linear led fixtures ul VS14-DH**2129*40*17164129*40*1726
VS14-DM**



Warranty

5 years since the date of purchase for cul 2x4 led flush mount ceiling light ,welcome to viist our web to download OKT warranty terms.



More detailed info for OKT suspended linear led fixtures ul, pls do not hesitate to inquiry now!
