Home > Products > 1 ft. x 4 ft. 110 to 277-Volt Edge-Lit LED Flat-Light Luminaire

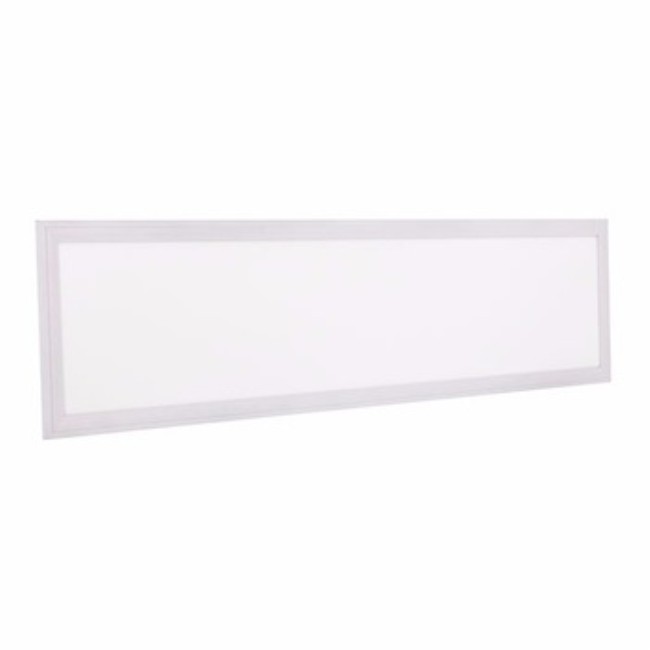

1 ft. x 4 ft. 110 to 277-Volt Edge-Lit LED Flat-Light Luminaire
Click on the image to view the original image
Product： views：31 ft. x 4 ft. 110 to 277-Volt Edge-Lit LED Flat-Light Luminaire
Branch： OKT LIGHTING
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:01
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
100-277V
Lamp Luminous Flux(lm):
4600
CRI (Ra>):
83
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP20
Certification:
BV, CE, FCC, RoHS, UL
Place of Origin:
Guangdong, China
Brand Name:
OKT LIGHTING
Model Number:
VS22-DM**
Light Source:
LED
Product Name:
DLC LED Flat Light
Power Options:
40W 50W 55W 63W
Size Options:
2x2ft, 2x4ft, 1x4ft
Chip:
passed LM80
DLC CCT Options:
4000K 5000K
Light efficacy:
Up to 91lm/W
Function available:
0-10V Dimming
Driver:
Fire rated design with Junction box
Mounting:
Recessed
Certificate:
UL,DLC,Lighting Facts,LM79
Item Type:
Panel Lights
Color Temperature(CCT):
Pure White
LED Light Source:
LM80 Chip
Warranty(Years):
5
Lamp Power(W):
50
Lamp Luminous Efficiency(lm/w):
92
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
QTY /Carton:4PCS
N.W: 19KG
G.W: 25KG
Carton Size:67*67*35cm
Port
Shenzhen
Lead Time:
EXW3-5 Days for Sample Call, 12-15days for Mass Order

1 ft. x 4 ft. 110 to 277-Volt Edge-Lit LED Flat-Light Luminaire

Description

The DLC LED Flat Light delivers high lumens while achieving 90 lumens per watt  in 100~277 VAC Input with fired rated junction box. This DLC LED Flat Light is available in 4000k, 5000k DLC CCT Options and has 0-10V dimming, which is perfect for new construction applications or retrofitting existing fluorescent troffer light fixtures with,widely used in office spaces, major retail stores, education, government, healthcare, and hospitality.



Specification

ModelItem NO.Input PowerLuminous FluxDLC CCT OptionInput VoltageDimmingCertificate
2x2FT DLC LED Flat Light
VS22-DM**40 Watts3700LM4000K 5000K100-277V AC0-10V DimmingUL,DLC

2x2FT DLC LED Flat Light

VS22-DH**55 Watts4900LM4000K 5000K100-277V AC0-10V DimmingUL,DLC
2x4FT DLC LED Flat Light
VS24-DM**50 Watts4600LM4000K 5000K100-277V AC0-10V DimmingUL,DLC
2x4FT DLC LED Flat Light
VS24-DH**63 Watts5600LM4000K 5000K100-277V AC0-10V DimmingUL,DLC
1x4FT DLC LED Flat Light
VS14-DM**40 Watts3600LM4000K 5000K100-277V AC0-10V DimmingUL

1x4FT DLC LED Flat Light

VS14-DH**50 Watts4500LM4000K 5000K100-277V AC0-10V DimmingUL,DLC



Advantage

 OKT DLC LED Flat Light are UL, CUL , DLC  listed, which is capable of retrofit application to existng fluorescent fixtures or new architectural recessed, Main characters:

  • cULus, DLC Listed, LM79 Report Available
  • More than 90lm/w
  • Fire rated design with Junction box
  • 0-10V dimming available
  • 5 Years Warranty
  • White or Silver Trim Color Options
  • Suitable for Damp locations
  • Accessary: Driver Box And Clips for T-Bar Included

Details Display





Customer Feedback

  • We are happy with DLC LED Flat Light and quality, let’s work on more.  ---  Luca (from NY,USA)
  • 100% love the DLC 1x 4 LED Flat Light . I will be ordering more this week. ----Kody(from LA,USA)
  • Thank you for your help and for the photos,they are very explicit---Jose from Mexico
  • We are very pleased with the quality of the DLC 1x 4 LED Flat Light and the performance.------Richard from CANADA
  • thehas arrived and is excellent------John from Canada

 Packing Infomation

ModelItem No.Sample PackMass Pack
QTY/CTN (pcs)Carton Size (cm)G.W(KG)QTY/CTN (pcs)Carton Size (cm)G.W(KG)
2*2ft LED Flat Light Luminaire  VS22-DM** VS22-DH**270*69*1714470*69*1721
2*4ft LED Flat Light Luminaire
VS24-DM** VS24-DH**2129*70*17274129*70*1745
1*4ft LED Flat Light Luminaire
VS14-DH**2129*40*17164129*40*1726
VS14-DM**



Warranty

5 years since the date of purchase for DLC LED Flat Light,welcome to viist our web to download OKT warranty terms.



More detailed info for OKT DLC 1x4 led panel light , pls do not hesitate to inquiry now!
