Home > Products > OKT Lighting 18w 25w ul emergency battery backup for led tube

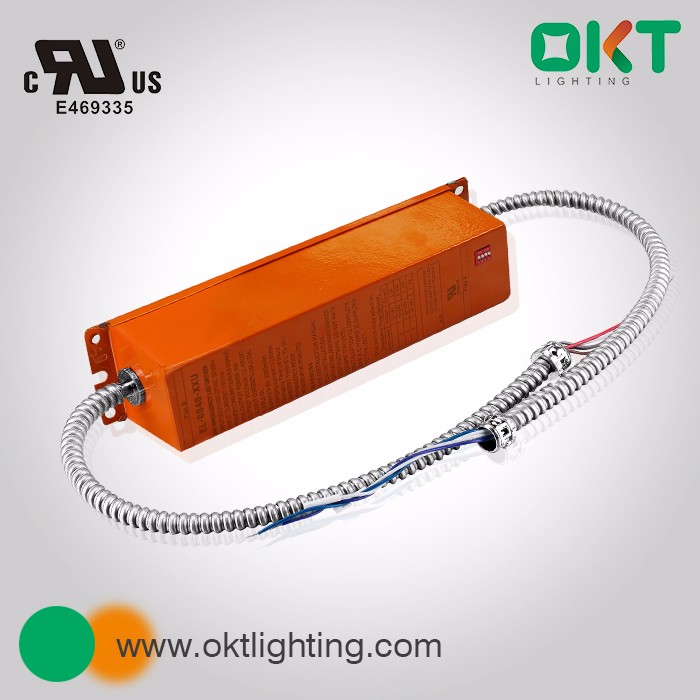

OKT Lighting 18w 25w ul emergency battery backup for led tube
Click on the image to view the original image
Product： views：3OKT Lighting 18w 25w ul emergency battery backup for led tube
Branch： OKT Lighting
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:01
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OKT Lighting
Model Number:
EH-18170-XXU
Output Power:
18w, 8W 12W 18W 25W
Output Type:
Dual
Size:
47*15*8
Weight:
3kg
Input Voltage:
100-277V AC, 100-277V AC
Output Voltage:
170V DC, < 48V DC or 170V DC
Output Frequency:
50Hz/60Hz
Emergency Time:
>90 Minutes
Function:
Dial the code to suitable voltage of luminaire
Accessory:
test switch and change indicator
Input Power:
6W
Application:
for most led lighting products
Certificate:
UL
Product Name:
led emergency battery backup
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
6PCS/CTN,Contact sales for details
Port
SHENZHEN
Lead Time:
within 7 days, Contact sales for details

OKT Lighting 18w 25w ul emergency battery backup for led tube

Product Description





Description

The OKTul emergency battery backup for led tube for led tube  is UL,CUL Listed that be used for both normal and emergency operation.the led emergency backup switches to the emergency mode and operates for 90 minutes after blackout which including a battery,charger and converter circuit in a single can. It is available in different mounting configurations for individual fixture requirements.



Specification

ul led driver with battery backupfor led product with external driver:

ModelOutput PowerMax.Connected LoadInput VoltageEmergency Time Output Voltage
EL-0848-XX ul  led emergency battery backup
8W (max)0.5 A

100-277VAC/

120-250V

>90 Minutes12-48V DC
EL-1248-XX  led emergency battery backup
12W (max)0.75A

100-277VAC/

120-250V

>90 Minutes12-48V DC
EL-2548-XX led emergency battery backup
25W (max)1.38 A

100-277VAC/

120-250V

>90 Minutes12-48V DC


battery backup led emergency driver for led product with inernal driver:

ModelOutput PowerInput PowerInput VoltageEmergency Time Output Voltage
EH-18170-XX ul emergency battery backup for led tube
18W (max)6W

100-277VAC/

120-250V

>90 Minutes170V DC
EH-25170-XX ul emergency battery backup for led tube 25W (max)6W

100-277VAC/

120-250V

>90 Minutes170V DC



Advantages

Dial the code to suitable voltage of luminaire

Includes test switch and charge indicator accessory

for use with switched or non switched fixtures

UL and CUL Listed  ul led emerg backup



Form for dial the code to suitable rated voltage of luminaire





Size





Model8W12W18W25W
A55.4MM55.4MM69MM69MM
B55MM55MM71MM71MM
C264.6MM264.6MM377MM377MM
D69MM55.4MM69MM69MM
E22.2MM22.2MM222MM22.2MM



How to install



Typical Wiring Diagram for LED emergency bcakup with internal led product



Typical Wiring Diagram for LED emergency bcakup with external led product



PLS CONTACT SALES FOR MORE DETAILS ABOUT THIS ul emergency battery backup for led tube !
