- Light Source:
- LED
- Input Voltage(V):
- 100-277V
- Lamp Luminous Flux(lm):
- 980
- CRI (Ra>):
- 80
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP44
- Certification:
- BV, Energy Star, FCC, UL
- Place of Origin:
- Guangdong, China
- Brand Name:
- OKT Lighting
- Wattage Options:
- 14w 27w
- ES Color Option:
- 3000K,4000K,5000K
- Dimmable:
- AC or DC Dimming
- Finishes colors:
- Silver gray
- Certificate:
- cULus,Energy Star
- Application:
- Suitable for Damp locations
- Product name:
- 4-inch retrofit lighting
- Item Type:
- Downlights
- Color Temperature(CCT):
- Cool White
- LED Light Source:
- Cree COB
- Warranty(Years):
- 5 Years
- Lamp Luminous Efficiency(lm/w):
- 70
- Working Temperature(℃):
- -20 - 50
- Supply Ability:
- 30000 Piece/Pieces per Month
- Packaging Details
- Standard Export Carton or as Client's Design
2PCS/CTN for cob led downlight
CTN Size: 36*30*29CM
G.W.:2.6KG
- Port
- SHENZHEN
OKT recessed 4-inch retrofit lighting ul energystar
The OKT 4-inch retrofit lighting are suitable for 100~277Vor 120V AC Input with fired-rated Junction box, which delivers high lumens of exceptional 80+ CRI, Lifetime > 50000H with 3000K, 4000K, 5000K color temperatures options. It can replace for most manufacturers incandescent, CFL or H.I.D. fixtures with apertures of 4.1" min.to 4.7" max diameter. Easy conversion method and installation can be performed from below the ceiling without removing existing fixture.
Specification for led downlight
Model | Item NO. | Input Power | Luminous Flux | Input Voltage | Dimming Style | Certificate |
4inch 14W | C4-14W-XXX C4-A14W-XXX | 14W | 980LM | 100-277V 120V | Non-Dimmable AC Dimming | UL, Energy Star UL |
4inch 27W | C4-D27W-XXX C4-A27W-XXX | 27W | 1880LM | 100-277V 120V | DC Dimming AC Dimming | UL, Energy Star UL |

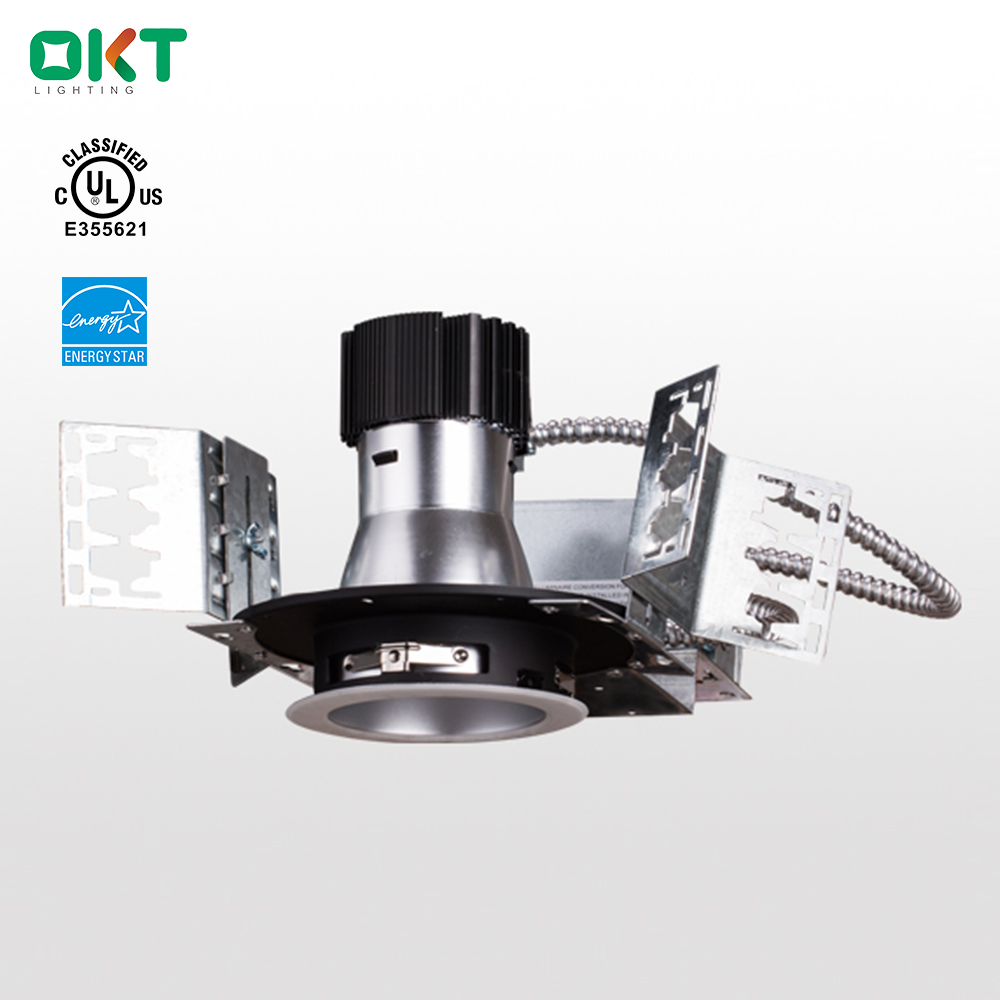

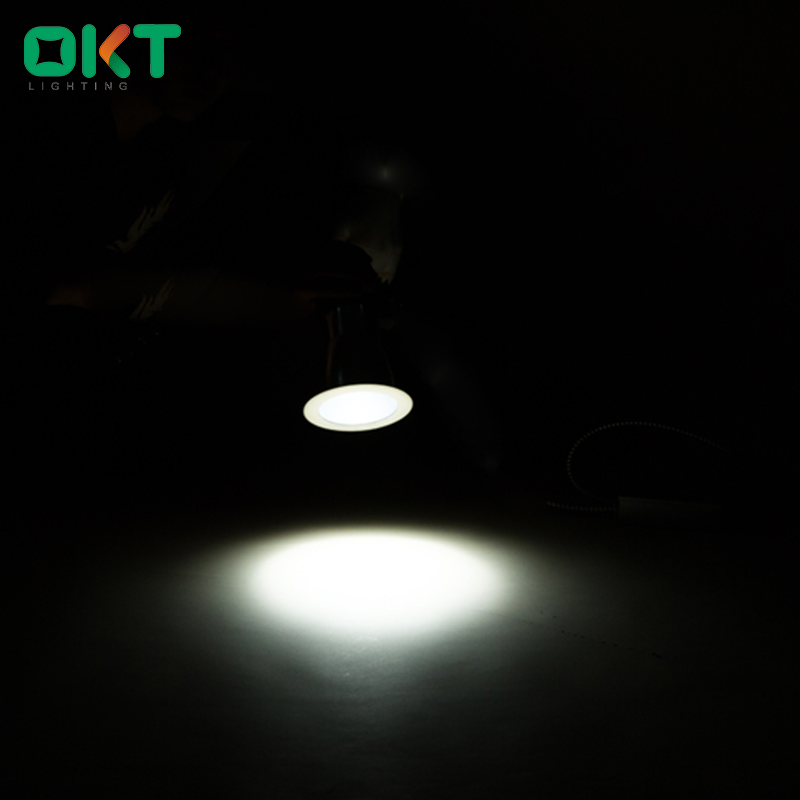

Product Display for 4-inch retrofit lighting
Why Choose OKT 4-inch retrofit lighting?
OKT okt retrofit lighting delivers high lumens of exceptional 80+ CRI with UL/cUL Recognized driver. It is available in 3000K, 4000K, 5000K Energy Star color temperatures and allows you to easily replace:
- cULus, Energy Star Listed, LM79,LM80 ;
- 120V Input AC Dimming or 100-277V input DC Dimming ;
- Suitable for Damp locations;
- 5 Years Warranty;
- THD<20%, PF>0.9
Adopt the CREE COB by CREE Truewhite Technology
UL isolated Driver MTBF>500,000 Hours, Fire-rated junction box, insulating epoxy inside driver, reduce the components" temperature
Structure
Model | A | B |
4inch 14W Downlight | 7.71" | 5.59" |
4inch 27W Downlight | 7.71" | 5.59" |
Projects
OKT okt retrofit lighting is capable of retrofit application to existng fluorescent fixtures or new architectural. Many OKT recessed retrofit lighting installed around the North American, especially united State,such as:
- BELK IN NORTH CAROLINA IN 2014
- down light for Church IN Houston,USA
- CROWN PLAZA HOTEL in NEW JERSERY
Certificates
We are focus on American Maret, which all recessed retrofit lighting is listed on UL, CUL, Energy Star, FCC.We"re available to provide UL, CUL, Energy Star Multiple List and Private Label for recessed retrofit lighting if needed.
LM79 Test Report
- This OKT recessed retrofit lighting was tested with no seasoning which made in compliance with IES LM-79-08.
- It was operated at rated voltage or at voltage required by manufacturer.
- The ambient temperature of the sample was maintained at 25°C±1°C during measurement.
- Relative humidity is less than 65%.
Shenzhen OKT Lighting understands“QUALITY IS LIFE”. our staff keep this conception as their duty. So every production procession is made according to ISO9001 Quality Certification and ISO14001 Environment Management System.
What"s more, each operator must be well trained before entering workshop. Meanwhile, Our quality control team and R&D team will check and test the semi-finished products and finished products by many kinds of instruments carefully all the time.
OKT apply some technical equipments, such as SMT, Auto Aging Line, Integrating sphere, Drop Tester, Transport Simulation Tester during recessed retrofit lighting our production process;
Those equipments make us deliver qualified products and offer more than 5 years" warranty for cob led downlight.
FAQ For recessed retrofit lighting
1. What"s rebate for recessed retrofit lighting ?
A: rebate is a type of sales promotion marketers use primarily as incentives or supplements to product sales. Customers could get rebate from your local Energy company because our items have been certified by Energy star or DLC.
2. What"s your payment term?
A: For mass order, 50% as deposit, balance should be paid before delivery.
3. What is your warranty for 4-inch retrofit lighting ?
A: 5 Years Warranty. 4-inch retrofit lighting
situation 1:Under the terms of this warranty,OKT LIGHTING will provide free new products based on the proof-documents if the product have a failure occurs under normal usage within warranty period.
situation 2:If failure or damage due to incorrect operation, wire connection or anything other do not follow our instruction, OKT lighting will provide paid maintenance within warranty period.
4: Can we get support if necessary?
A: we offers business policies to support all regular and new clients to help you expand markets, please contact us for details.
More concerned for okt retrofit lighting, pls do not hesitate to inquiry now!
