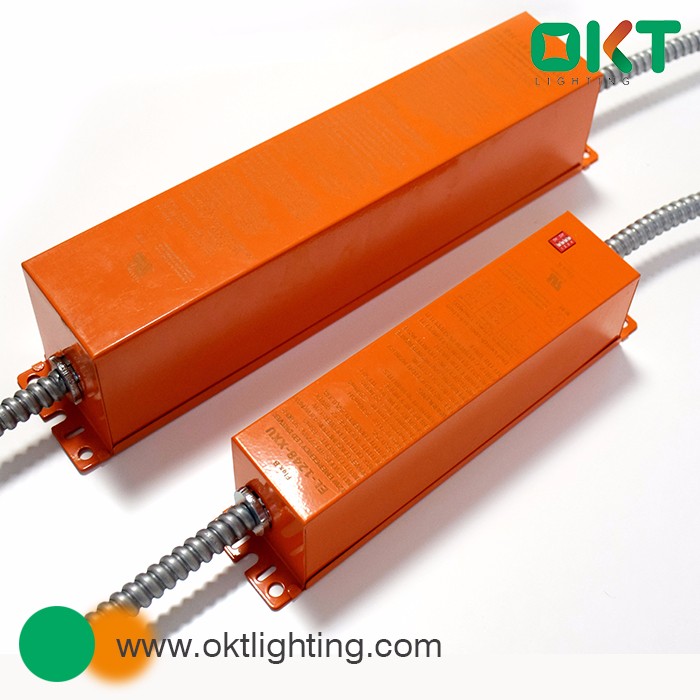

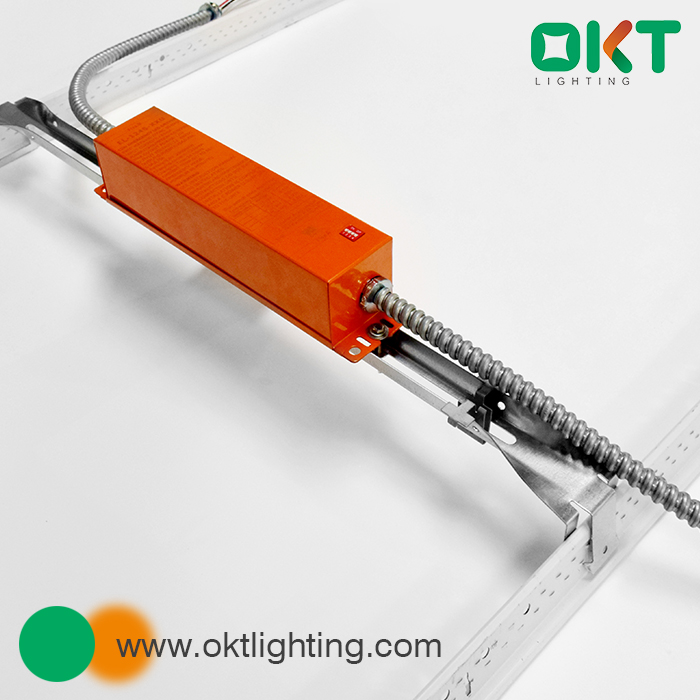

OKT UL listed emergency kit battery backup led lighting for led troffer/Panel /tube light
Remark:
This item have been upgraded to the second generation ( UL listed with field installable) , pls click here for more information.
Performance Summary
High Voltage version
| Model | EH-18170-XXU | EH-25170-XXU |
| Output Power | 18 Watts (Max) | 25 Watts (Max) |
| Input Power | 6 Watts (Max) | 6 Watts (Max) |
| Input Voltage | 100-277V AC, 50-60HZ | |
| Output Voltage | 170V DC | |
| Emergency Time | >90 Minutes | |
| Battery | Nickel-Cadmium | |
| Warranty | 5 Years | |
| Certificate | UL Component Recognized | |
Low Voltage version
| Model | EL-0848-XXU | EL-1248-XXU | EL-2548-XXU |
| Output Power | 8 Watts (Max) | 12 Watts (Max) | 25 Watts (Max) |
| Input Power | 4.8 Watts (Max) | 4.8 Watts (Max) | 6 Watts (Max) |
| Input Voltage | 100-277V AC, 50-60HZ | ||
| Output Voltage | 12V-48V DC | 12V-48V DC | 18V-48V DC |
| Emergency Time | >90 Minutes | ||
| Battery | Nickel-Cadmium | ||
| Warranty | 5 Years | ||
| Certificate | UL Component Recognized | ||
Advantage
90 Minutes operation for battery backup
Applicable to led lamps with internal driver and external driver
Adopt long life recyclable Ni-Cad battery
Including test switch and charge indicator accessory kit
5 years limited warranty b
Including test switch and charge indicator accessory kit
OKT Lighting led emergency driver for Los Angeles International Airport
Dimension
Certificate
Why OKT
Profession
Shenzhen OKT Lighting CO.,Ltd, Founded in 2008;
Specialized in researching, manufacturing and sales of commercial LED lighting fixtures, include panel lights, troffers, downlights, linear pendant fixtures and LED emergency drivers;
All have achieved certifications such as UL, ETL, Energy Star, DLC, TITLE 24, TÜV, CSA, SASO and FCC;
A minimum five-year warranty.
Focus
Focus entirely on the North American market and in just a few years it has already gained a firm footing in this market;
Focused on R&D, producing LED products that are more energy-efficient, cost-effective and aesthetically pleasing than those already on the market;
Focus on quality control, We take more than just quality products for manufacturers to thrive.
