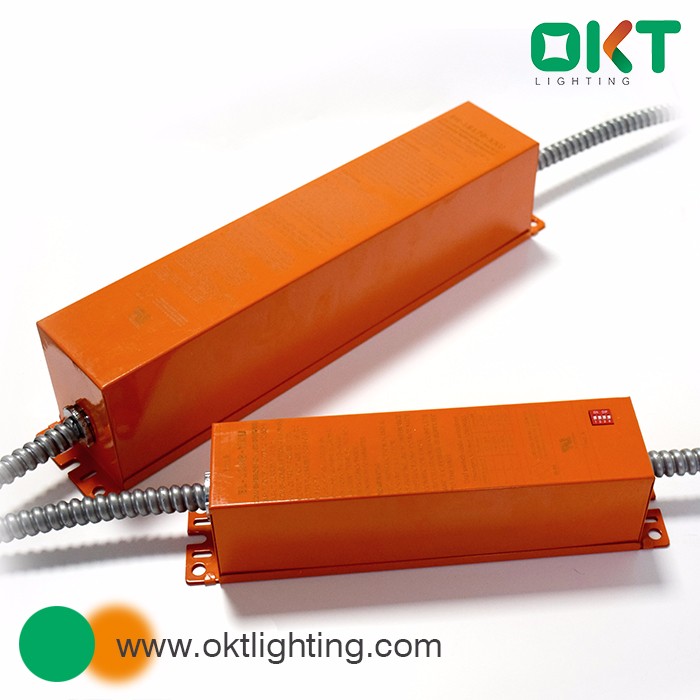

UL listed led panel emergency conversion kit backup
Description
The OKT led panel light emergency kit is UL,CUL Listed that be used for both normal and emergency operation.the led emergency backup switches to the emergency mode and operates for 90 minutes after blackout which including a battery,charger and converter circuit in a single can. It is available in different mounting configurations for individual fixture requirements.
Specification
for led emergency kit with external driver:
| Model | Output Power | Max.Connected Load | Input Voltage | Emergency Time | Output Voltage |
| EL-0848-XX | 8W (max) | 0.5 A | 100-277VAC/ 120-250V | >90 Minutes | 12-48V DC |
| EL-1248-XX | 12W (max) | 0.75A | 100-277VAC/ 120-250V | >90 Minutes | 12-48V DC |
| EL-2548-XX | 25W (max) | 1.38 A | 100-277VAC/ 120-250V | >90 Minutes | 12-48V DC |
for led emergency kit with inernal driver:
| Model | Output Power | Input Power | Input Voltage | Emergency Time | Output Voltage |
| EH-18170-XX | 18W (max) | 6W | 100-277VAC/ 120-250V | >90 Minutes | 170V DC |
| EH-25170-XX | 25W (max) | 6W | 100-277VAC/ 120-250V | >90 Minutes | 170V DC |
Dial the code to suitable voltage of luminaire
Includes test switch and charge indicator accessory
for use with switched or non switched fixtures
UL and CUL Listed
Form for dial the code to suitable rated voltage of luminaire
| Model | 8W | 12W | 18W | 25W |
| A | 55.4MM | 55.4MM | 69MM | 69MM |
| B | 55MM | 55MM | 71MM | 71MM |
| C | 264.6MM | 264.6MM | 377MM | 377MM |
| D | 69MM | 55.4MM | 69MM | 69MM |
| E | 22.2MM | 22.2MM | 222MM | 22.2MM |
Typical Wiring Diagram for LED emergency bcakup with internal led product
Typical Wiring Diagram for LED emergency bcakup with external led product
