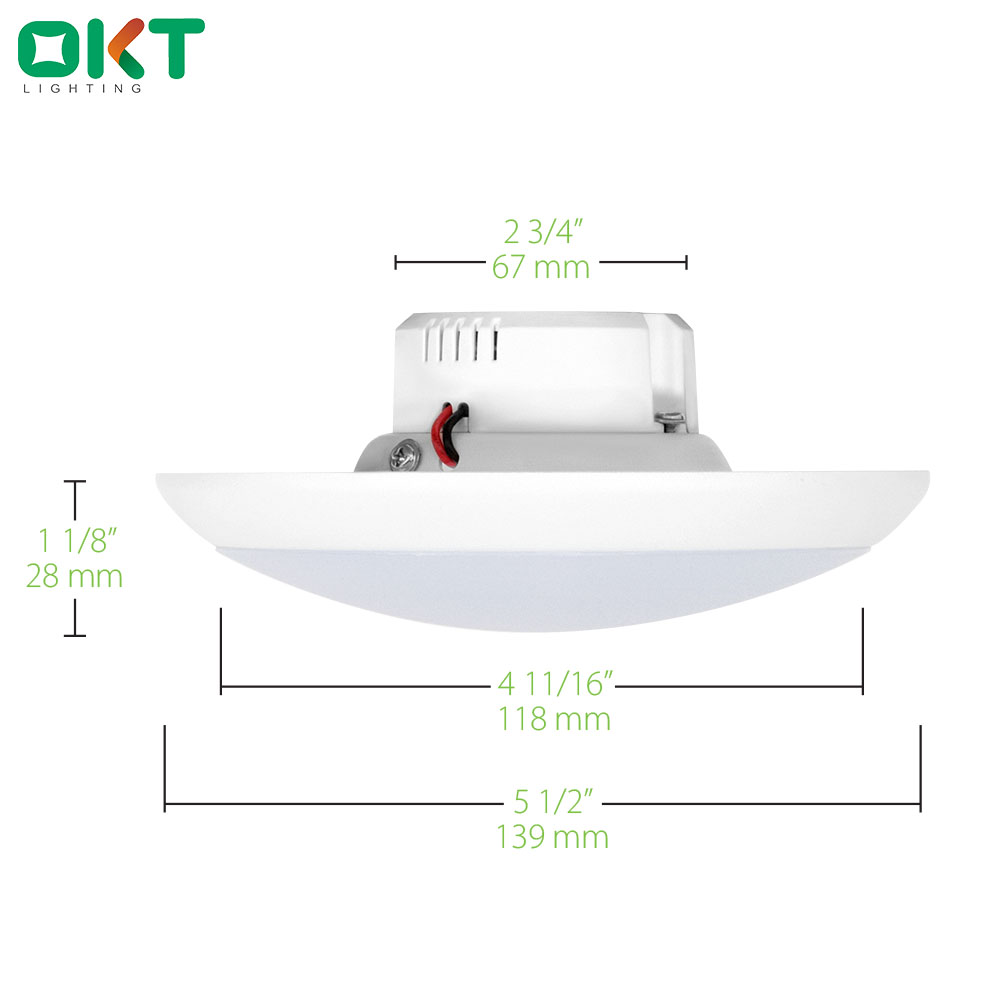

UL Energy Star disc downlight
OKT 5inch to 6inch disc downlight China provides amazing beam angle and advanced dimming capabilities which minimum to 5% with widely available traditional dimmers.It designed to easily install into existing IC or non-IC Six-inch and some Five-inch housings with E26/GU24 base options.Also,it can install on the 4inch or 6inch junction box directly,making it ideal for new construction.
Specification
Ra>80 120v options:
| Model | Item NO. | Input Power | Luminous Flux | Input Voltage | Accessary | Certificate |
| 6inch 10w | RS6-10W-XXXX | 10 Watts | 790 | 120V AC | E26/GU24 | UL,Energy Star |
Product Display
1. Front Side
2. Side Face
3. Back Side
4. Gift Box
Advantages
OKT 5inch to 6inch disc downlight are designed for Amercian market, which is capable of retrofit application to Incandescant or Halogen lamps, Main characters:
- cULus, Energy Star Listed;
- Achieve better color quality with a CRI of 80+ or 90+
- Suitable for Damp locations;
- 5 Years Warranty;
120V Input Triac Dimming minimum to 20% or 100-277V input,Compatible to Most Famous Dimmers;
UL Driver MTBF>500,000 Hours;
Compatible to most 5inch or 6inch can;
LM79 Report
- This disc downlight was tested with no seasoning.
- All stabilization and measurements were made in compliance with IES LM-79-08.
- This disc downlight was operated at rated voltage or at voltage required by manufacturer.
- The ambient temperature of the sample was maintained at 25°C±1°C during measurement.
- And relative humidity is less than 65%
Installation
1. This disc downlight has E26 Edison screw-base or GU24 available;
2. It is suitable for recessed 5inch or 6inch housing series, such as:
- HALO: H7ICT, H7ICAT, H7ICATNB, H7RICAT, H7RICT, H7UICAT, H7UICT, H750RI,CAT, H750ICAT, H27ICAT, H27ICT, H27RICAT, H27ICT, H27RICAT, H51CAT, HRICAT, H750TCP.
- ALL-PRO: EI700, EI700AT, EI700ATNB, EI700NB. EI700RAT, EI700U, EI700UAT,EI2700, EI2700AT, EI500AT, EI500RAT.
- Juno : IC22, IC22R, IC22W, IC22S, IC23, IC23W, IC21, IC21R, IC25, IC25W, IC25S.
-
Projects
- OKT disc downlight is perfect for residential and commercial applications;
- Such as house, sitting room, kitchen, hotels, meeting room, office, restaurant etc.
- Many disc downlight installed around the North American, especially united State, and with the most installed indoor luminaire run time of any manufacturer.
Certificate
We are the Energy saving downlight manufacturer.All led downlights are listed on UL, CUL, Energy Star, FCC, Lighting Facts.
Test Equipment
Shenzhen OKT Lighting understands“QUALITY IS LIFE”. our staff keep this conception as their duty. So every production procession is made according to ISO9001 Quality Certification and ISO14001 Environment Management System. What"s more, each operator must be well trained before entering workshop. Meanwhile, Our quality control team and R&D team will check and test the semi-finished products and finished products by many kinds of instruments carefully all the time.
- OKT apply some technical equipments, such as SMT, Auto Aging Line, Integrating sphere, Drop Tester, Transport Simulation Tester during our white Panel LED production process;
- Those equipments make us deliver qualified products and offer more than 5 years" warranty for DLC Panel LED
FAQ
1:How about the delivery time for disc downlight ?
A:we offer Quick lead time,only 1 day for sample call,10 days for 1000pcs.
2:what is your warranty for disc downlight ?
A:5 years warranty
3:Can we get support if necessary?
A: we offers business policies to support all regular and new clients to help you expand markets,,please contact us for details.
4:Is there cheap shipping cost to import to our country?
A: we have long-standing forwarder which can offer the most competitive price for your reference.Normally, For small order,express will be best.And for bulk order,it is better to by sea but need much time.
5:We are the wholesaler,can you offer Multiple List and Private Label according to our requests?
A: YES.We will help you to handle ML process while our designer can design private label as required.
6: may i know your pakcing info about this disc downlight ?
A: see belows form:
| Model | QTY/CTN | Carton Size (CM) | G.W (KG) |
|---|---|---|---|
| 6" 10W Economic downlight | 21 PCS | 95*62*24 | 10 |
| 6" 10w surface mounted downlight | 33 PCS | 95*62*24 | 15.7 |
| 6" 10w rotatable downlight | 33 PCS | 95*62*24 | 17.5 |
More concerned for OKT disc downlight pls do not hesitate to inquiry now!
