Home > Products > OKT DLC led panel work as emergency light when work with our emergency backup driver

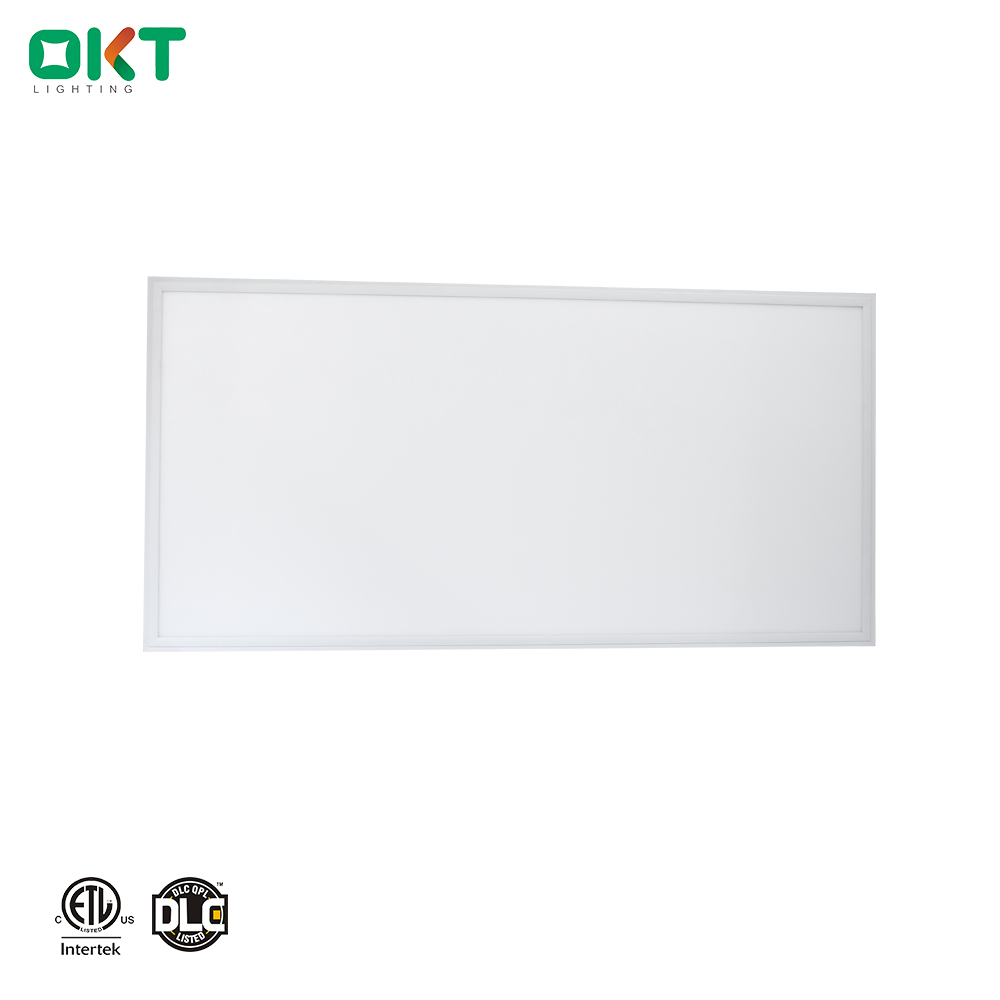

OKT DLC led panel work as emergency light when work with our emergency backup driver
Click on the image to view the original image
Product： views：3OKT DLC led panel work as emergency light when work with our emergency backup driver
Branch： OKT LIGHTING
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:01
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
100-277V
Lamp Luminous Flux(lm):
4600
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP20
Certification:
BV, CE, ETL, FCC, RoHS, UL
Place of Origin:
Guangdong, China
Brand Name:
OKT LIGHTING
Model Number:
VS24-DM**
Light Source:
LED
Product Name:
DLC led panel
Power Options:
40W 50W
Size Options:
600*600,600*1200,300*1200
Chip:
passed LM80
DLC CCT Options:
4000K 5000K
Light efficacy:
Up to 92lm/W
Function available:
0-10V Dimming
Driver:
Fire rated design with Junction box
Mounting:
Recessed
Certificate:
UL,DLC,Lighting Facts,LM79,ETL
Item Type:
Panel Lights
Color Temperature(CCT):
Pure White
LED Light Source:
LM80 Chip
Warranty(Years):
5
Lamp Power(W):
50
Lamp Luminous Efficiency(lm/w):
92
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
QTY /Carton:4PCS
N.W: 35KG
G.W: 39KG
Carton Size:129*70*17cm
Port
Shenzhen
Lead Time:
3-5 DAYS



2014 For America market CUL UL   DLC led panel



Description

The DLC led panel delivers high lumens while achieving 90 lumens per watt  in 100~277 VAC Input with fired rated junction box. This  DLC led panel is available in 4000k, 5000k DLC CCT Options and has 0-10V dimming, which is perfect for new construction applications or retrofitting existing fluorescent troffer light fixtures with,widely used in office spaces, major retail stores, education, government, healthcare, and hospitality.



Specification

ModelItem NO.Input PowerLuminous FluxDLC CCT OptionInput VoltageDimmingCertificate
600x600  DLC   led light panel VS22-DM**40 Watts3700LM4000K 5000K100-277V AC0-10V DimmingUL,DLC

600x600  DLC   led light panel

VS22-DH**55 Watts  edge lit  led panel 4900LM4000K 5000K100-277V AC0-10V DimmingUL,DLC
600x1200 DLC   led light panel  VS24-DM**50 Watts4600LM4000K 5000K100-277V AC0-10V DimmingUL,DLC
600x1200  DLC   led light panel  VS24-DH**63 Watts5600LM4000K 5000K100-277V AC0-10V DimmingUL,DLC
300x1200  DLC   led light panel  VS14-DM**40 Watts3600LM4000K 5000K100-277V AC0-10V DimmingUL

300x1200 DLC  led light panel

VS14-DH**50 Watts4500LM4000K 5000K100-277V AC0-10V DimmingUL



Advantage

 OKT  are UL, CUL , DLC  listed, which is capable of retrofit application to existng fluorescent fixtures or new architectural recessed, Main characters:

  • cULus, DLC Listed, LM79 Report Available
  • More than 90lm/w
  • Fire rated design with Junction box
  • 0-10V dimming available
  • 5 Years Warranty
  • White or Silver Trim Color Options
  • Suitable for Damp locations
  • Accessary: Driver Box And Clips for T-Bar Included

Details Display





Customer Feedback

  • We are happy with DLC led panel and quality, let’s work on more.  ---  Luca (from NY,USA)
  • 100% love the DLC 5years warranty DLC led panel . I will be ordering more this week. ----Kody(from LA,USA)
  • Thank you for your help and for the photos, are very explicit---Jose from Mexico
  • We are very pleased with the quality of   DLC led panel and the performance.------Richard from CANADA
  • the DLC led panel  has arrived and is excellent------John from Canada

 Packing Infomation

ModelItem No.Sample PackMass Pack
QTY/CTN (pcs)Carton Size (cm)G.W(KG)QTY/CTN (pcs)Carton Size (cm)G.W(KG)
600x600  DLC  LED panel light VS22-DM** VS22-DH**270*69*1714470*69*1721
600x1200 DLC  LED panel light VS24-DM** VS24-DH**2129*70*17274129*70*1745
300x1200 DLC  LED panel light VS14-DH**2129*40*17164129*40*1726
VS14-DM**



Warranty

5 years since the date of purchase for DLC led panel  welcome to viist our web to download OKT warranty terms.



More detailed info for OKT DLC led panel , pls do not hesitate to inquiry now!
