- Light Source:
- LED
- Input Voltage(V):
- 100-277V
- Lamp Luminous Flux(lm):
- 4100
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP44
- Certification:
- BV, Energy Star, FCC, RoHS, UL
- Model Number:
- C10-D54W-XXX
- Place of Origin:
- Guangdong, China
- Brand Name:
- OKT Lighting
- Product name:
- retrofit led replacement for 250 watt metal halide
- Wattage Options:
- 40W 54W
- Chip:
- CREE COB retrofit led replacement for 250 watt metal halide
- ES Color Option:
- 3000K, 4000K,5000K
- UL Driver MTBF:
- > 500,000 Hours
- Warranty:
- 5 Years
- Dimmable:
- AC OR DC Dimming
- Finishes colors:
- Silver gray
- Certificate:
- cULus,Energy Star
- Application:
- Suitable for Damp locations
- Item Type:
- Downlights
- Color Temperature(CCT):
- Pure White
- Working Temperature(℃):
- -20 - 50
- CRI (Ra>):
- 80
- LED Light Source:
- Cree COB
- Warranty(Years):
- 5 Years
- Lamp Power(W):
- 54
- Lamp Luminous Efficiency(lm/w):
- 76
- Supply Ability:
- 30000 Piece/Pieces per Month
- Packaging Details
- 1PCS/CTN for 10inch retrofit led replacement for 250 watt metal halide
CTN Size: 31*36*35CM
G.W.:3.5KG
- Port
- SHENZHEN
- Lead Time:
- 3 Days for Sample Call, 4 weeks for 1000pcs
2014 for US Market 54w retrofit led replacement for 250 watt metal halide
The OKT 10" retrofit led replacement for 250 watt metal halide delivers high lumens of exceptional 80+ CRI,Lifetime>50000H with 3000K, 4000K, 5000K ES color temperatures options.100-277 VAC or 120VAC operation with included 0~10V dimmable or AC Dimmable constant current LED driver.It can replace for most manufacturers incandescent, CFL or H.I.D. fixtures with apertures of 10.1" min to 10.7" max diameter. UL Classified for installation in all compatible recessed housings found in hotel,office spaces,major retail stores, education facilities,government buildings,hospitals ect.
Specification 10" retrofit led replacement for 250 watt metal halide
Model | Item NO. | Input Power | Lumious Flux | Input Voltage | Dimming Style | Certificate |
10inch 40W | C10-D40W-XXX C10-A40W-XXX | 40W | 2880LM | 100-277V AC 120V AC | DC Dimming AC Dimming | UL,Energy Star UL |
10inch 54W | C10-D54W-XXX C10-A54W-XXX | 54W | 4100LM | 100-277V AC 120V AC | DC Dimming AC Dimming | UL,Energy Star UL |

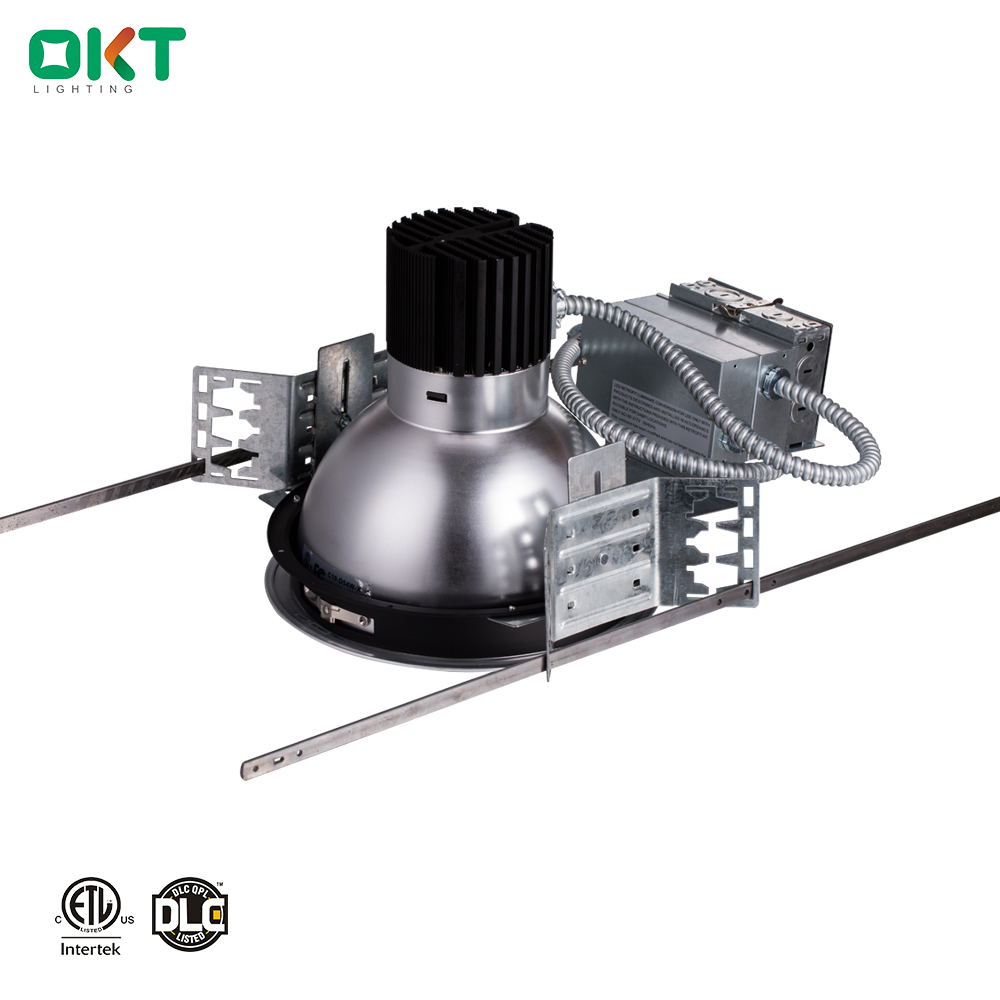

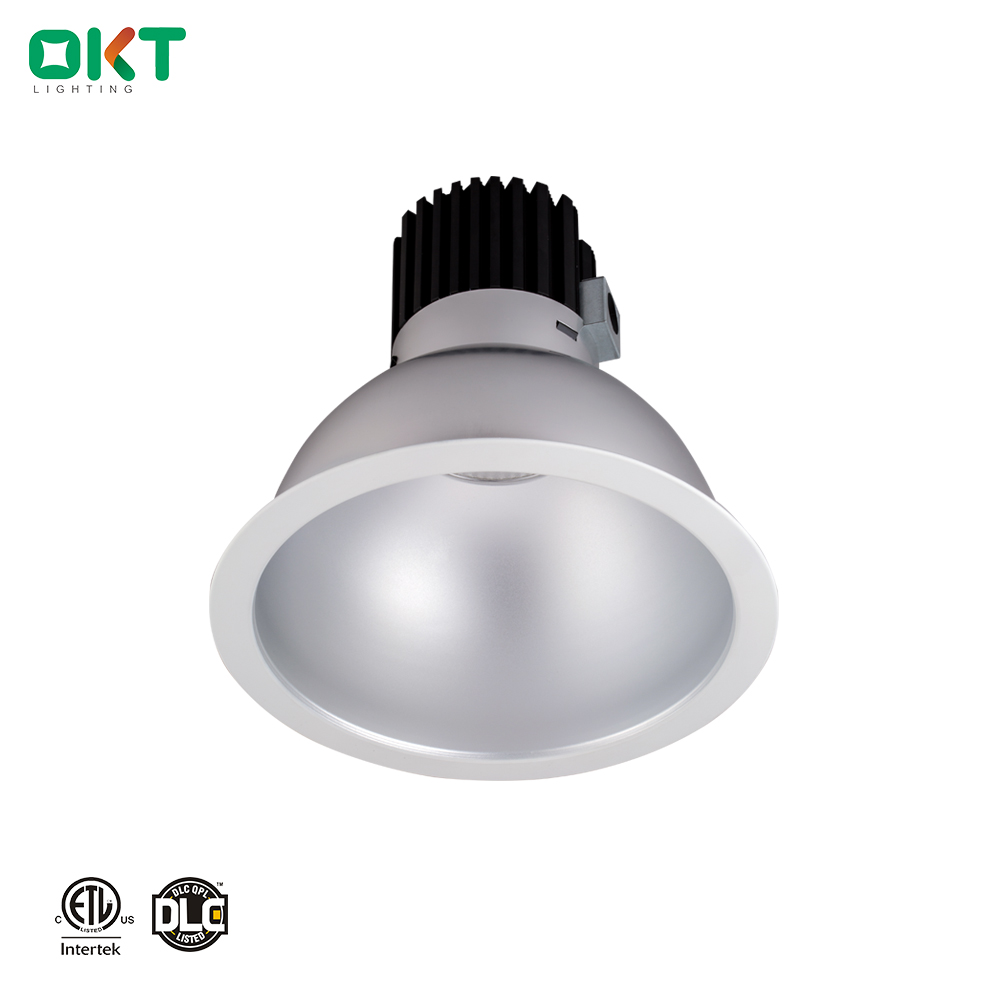

Product Display for 10" retrofit led replacement for 250 watt metal halide
Why choose 10" retrofit led replacement for 250 watt metal halide
OKT 10" retrofit led replacement for 250 watt metal halide delivers high lumens of exceptional 80+ CRI with UL/cUL Recognized driver. It is available in 3000K, 4000K, 5000K Energy Star color temperatures and allows you to easily replace:
- cULus, Energy Star Listed, LM79 LM80 ;
- 120V Input AC Dimming or 100-277V input DC Dimming ;
- Suitable for Damp locations;
- 5 Years Warranty;
- Adopt the CREE COB by CREE Truewhite Technology
- cUL isolated Driver MTBF>500,000 Hours, Fire-rated junction box
- Insulating epoxy inside driver, reduce the components" temperature
- THD<20%, PF>0.9
Structure
Model | A | B |
10inch 40W | 9.21" | 10.98" |
10inch 54W | 9.21" | 10.98" |
Projects
OKT 10" retrofit led replacement for 250 watt metal halide is capable of retrofit application to existng fluorescent fixtures or new architectural. Many OKT 10inch 54W downlight installed around the North American, especially united State,such as:
- HOTEL IN USA;
- BELK IN NORTH CAROLINA IN 2014;
- CROWN PLAZA HOTEL in NEW JERSERY.
Certifications
We are focus on American Market, which all frame downlight are listed on UL, CUL, Energy Star, FCC.We"re available to provide UL, CUL, Energy Star Multiple List and Private Label for led commerical retrofit if needed.
LM79 Report
This 10" retrofit led replacement for 250 watt metal halide was tested with no seasoning which made in compliance with IES LM-79-08.
- It was operated at rated voltage or at voltage required by manufacturer.
- The ambient temperature of the sample was maintained at 25°C±1°C during measurement.
- And relative humidity is less than 65%
Shenzhen OKT Lighting understands“QUALITY IS LIFE”. our staff keep this conception as their duty. So every production procession is made according to ISO9001 Quality Certification and ISO14001 Environment Management System.
What"s more?
each operator must be well trained before entering workshop. Meanwhile, Our quality control team and R&D team will check and test the semi-finished products and finished products by many kinds of instruments carefully all the time.
OKT apply some technical equipments, such as SMT, Auto Aging Line, Integrating sphere, Drop Tester, Transport Simulation Tester during our production process;
Those equipments make us deliver qualified products and offer more than 5 years" warranty.
FAQ for dimmable 10" retrofit led replacement for 250 watt metal halide
1. What"s rebate?
A: rebate is a type of sales promotion marketers use primarily as incentives or supplements to product sales. Customers could get rebate from your local Energy company because our items have been certified by Energy star or DLC.
2. What"s your payment term?
A: For mass order, 50% as deposit, balance should be paid before delivery.
3. What is your warranty for retrofit led replacement for 250 watt metal halide ?
A: 5 Years Warranty.
situation 1:Under the terms of this warranty, OKT LIGHTING will provide free new products based on the proof-documents if the product have a failure occurs under normal usage within warranty period.
situation 2:If failure or damage due to incorrect operation, wire connection or anything other do not follow our instruction, OKT lighting will provide paid maintenance within warranty period.
4: Can we get support if necessary?
A: we offer business policies to support all regular and new clients to help you expand markets, please contact us for details.
More concerned for OKT 10" retrofit led replacement for 250 watt metal halide , pls do not hesitate to inquiry now!
