UL cUL DLC Super Bright LED panel 600x600 mm ceiling light 1200 x 600 mm LED panel lights recessed fitting
Specification
| Model | Item NO. | Input Power | Luminous Flux | Input Voltage | Certificate |
| 2x2ft | VS22-DM** | 40W | 3700LM | 100-277V AC | UL, DLC |
| 2x2ft | VS22-DH** | 55W | 4900LM | 100-277V AC | UL, DLC |
Family Products
| Item | Input Power | Luminous Flux | Certificate |
| 2x4ft | 50W | 4600LM | UL, DLC |
| 2x4ft | 63W | 5400LM | UL, DLC |
| 1X4ft | 40W | 3600LM | UL |
| 1x4f | 50W | 4500LM | UL, DLC |

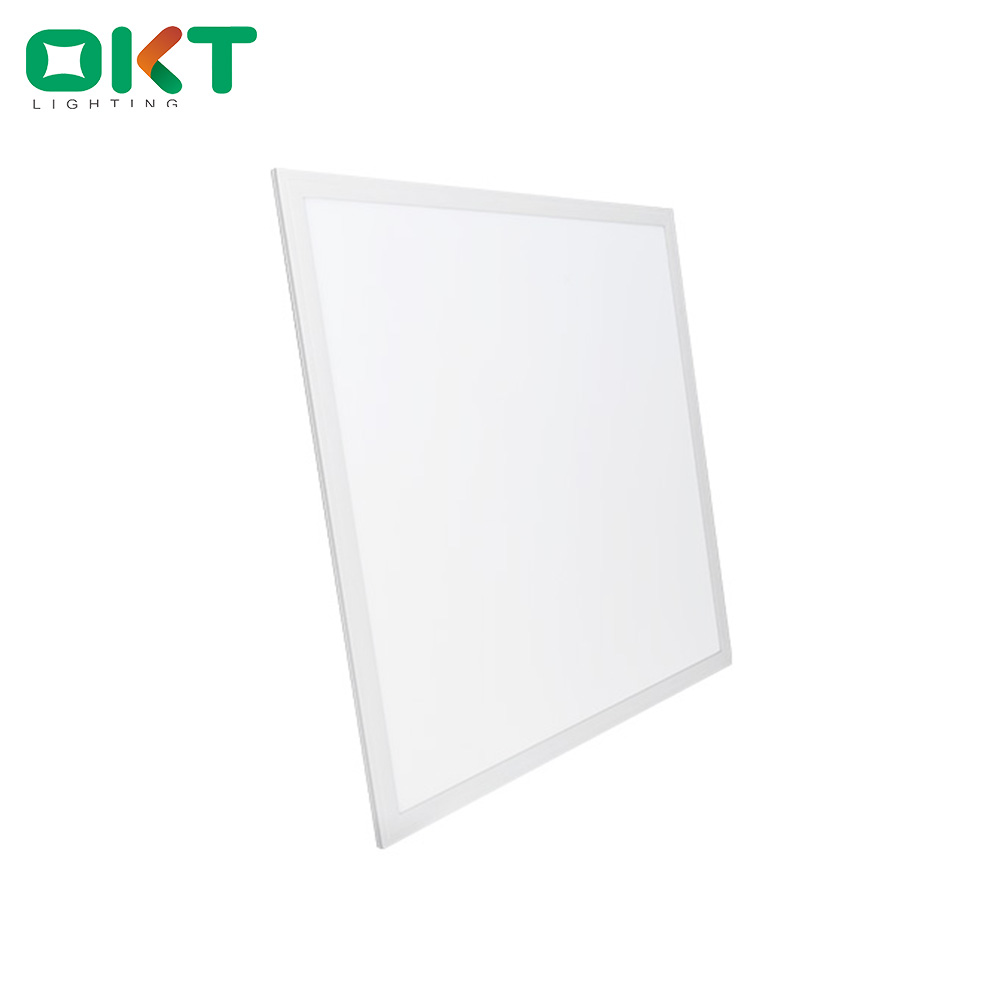

Product Display for OKT LED panel 600x600 mm
2. Back Side
3. Suspending installation
4. Surface mounted kit for led light panels
Why Choose OKT 600x600 LED ceiling light ?
The OKT LED panel 600x600 mm have approved DESIGNLIGHTS CONSORTIUM (DLC) and UL, which reaches 91lumens per watt in 100~277 VAC Input. LED panel 600x600 mm included UL Recognized constant current driver and designed for new construction applications or retrofitting existing fluorescent troffer light fixtures.
- UL and cUL Listed, DLC Listed, LM79 Report and Lighting Facts Available
- 0-10v Dimming Available
- Trim Color Options: White or Silver
- Installation: Recessed, surface mounted kit, suspension
- Suitable for Damp locations
UL Driver MTBF> 50,000 Hours
Comparison
OKT led panel light usa VS Fluorescent Tube for school in Cadana.
LM79 Report
- This OKT led panel light usa were tested with no seasoning which made in compliance with IES LM-79-08.
- It was operated at rated voltage or at voltage required by manufacturer.
- The ambient temperature of the sample was maintained at 25°C±1°C during measurement.
- And relative humidity is less than 65%.
Drawings
| Item | Outer Size | Light-Emitting Area | Thickness | Height |
| 2x2ft LED Light Panels | 23.7"x23.7" | 21.34"x21.34" | 0.47" | 2.13" |

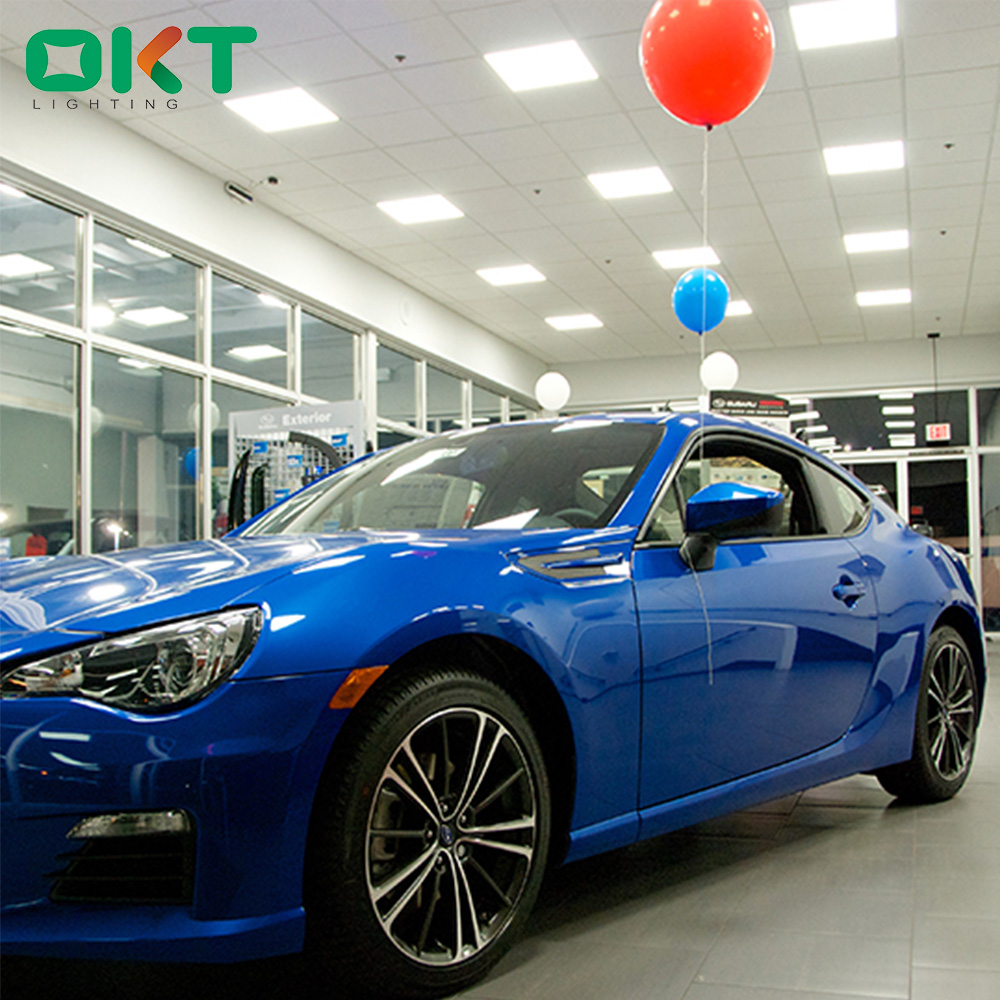

Projects
OKT LED panel 600x600 mm are capable of retrofit application to existng fluorescent fixtures or new architectural. Many OKT led panel light usa installed around the North American, especially united State, such as:
- Medium in USA;
- Seven Eleven in USA;
- Supermarket in USA:
- School in Canada.
Certifications
1. We are focus on American Maret, which all LED panel 600x600 mm are listed on UL, CUL, DLC, FCC, Lighting Facts.
2. We"re available to provide UL, CUL, DLC Multiple List and Private Label for LED panel 600x600 mm if needed.
Shenzhen OT Lighting understands “QUALITY IS LIFE”. our staff keep this conception as their duty. So every production procession is made according to ISO9001 Quality Certification and ISO14001 Environment Management System. What"s more, each operator must be well trained before entering workshop. Meanwhile, our quality control team and R&D team will check and test the semi-finished products and finished products by many kinds of instruments carefully all the time.
1. OKT applies some technical equipments, such as SMT, Auto Aging Line, Integrating sphere, Drop Tester, Transport Simulation Tester during our led panel light usa production process;
2. Those equipments make us deliver qualified products and offer more than 5 years" warranty for led panel light usa .
FAQ
Q1: How to install your LED panel 600x600 mm ?
A: Normally we have three installation methods, that is recessed, suspending and surface mounted, see belows details:
| Model | Installation Method |
| 2x2ft LED panel 600x600 mm | Recessed, Suspension, Surface Mounted |
| 2x4ft dlc led panels 2x4 | Recessed, Suspension |
| 1x4ft square flat led light panels | Recessed, Suspension |
Q2: We are the wholesaler, can you offer Multiple List and Private Label according to our requests?
A: YES. We will help you to handle ML process while our designer can design private label as required.
Q3: Which CCT have passed DLC?
A: 4000K and 5000K led panel lights are listed on DLC.
Q4: Can you offer cheap shipping cost to import to our country?
A: we have long-standing forwarder which can offer the most competitive price for your reference.Normally, For small order, express will be best.And for bulk order, it is better to by sea but need much time.
Q5: How about your packing?
A: We have two packing solutions for your choices:
| Packing Options | PCS/CTN | Carton Size | G.W |
| Option 1 for Ultra slim led panel light | 2PCS/CTN | 129*70*17cm | 23KG |
| Option 2 for Ultra slim led panel light | 4PCS/CTN | 129*70*17cm | 35KG |
Q6: What quality you can offer?
A: We offer 5 Years Warranty;
| situation 1 | Under the terms of this warranty, if the product has a failure occurs under normal usage within warranty period, OKT LIGHTING will provide free new products based on the proof-documents. |
| situation 2 | If failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, OKT lighting will provide paid maintence within warranty period. |
More concerned for OKT LED panel 600x600 mm , pls do not hesitate to inquiry now!
