Home > Products > Dimmable led panel lamp 2x4 50W 63W high CRI UL DLC approved led light panel

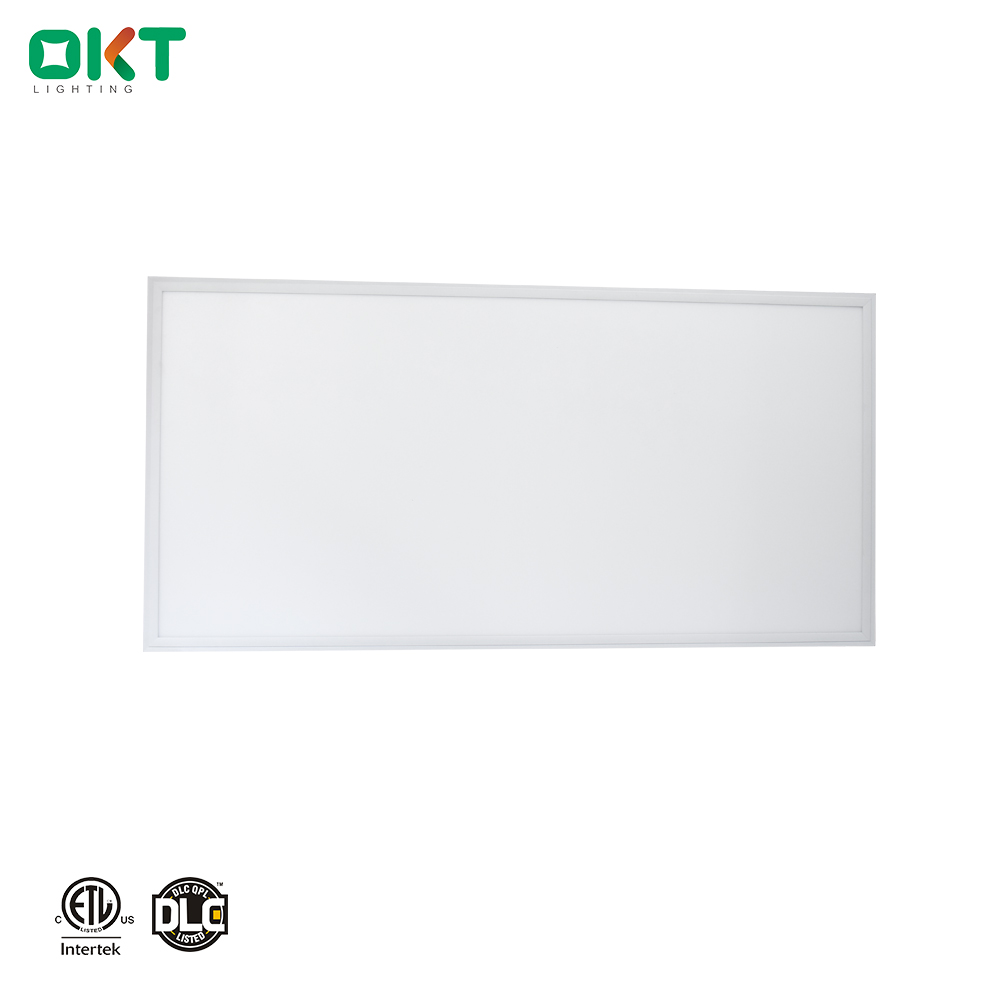

Dimmable led panel lamp 2x4 50W 63W high CRI UL DLC approved led light panel
Click on the image to view the original image
Product： views：5Dimmable led panel lamp 2x4 50W 63W high CRI UL DLC approved led light panel
Branch： OKT LIGHTING
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:02
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
120-277V
Lamp Luminous Flux(lm):
4600LM
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP44
Certification:
UL
Place of Origin:
Guangdong, China
Brand Name:
OKT LIGHTING
Model Number:
VS24-DM**
Light Source:
LED
Product Name:
Dimmable led panel lamp 2x4 50W 63W
Power:
50W/63W Options
Chip:
passed LM80 flat panel lighting
Dimension:
1212*602*13mm
Light efficacy:
Up to 95lm/W flat panel lighting
Function available:
0-10V Dimming flat panel lighting
Driver:
Fire rated design with Junction box
Mounting:
recessed flat panel lighting
Certificate:
UL,DLC,Lighting Facts,LM79
More Options:
1x4ft/2x4ft flat panel lighting
Item Type:
Panel Lights
Color Temperature(CCT):
Pure White
LED Light Source:
SMD2835
Warranty(Years):
5
Lamp Power(W):
50
Lamp Luminous Efficiency(lm/w):
95
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export box and carton or as client's design Quantity
Port
Shenzhen
Lead Time:
Samples:3~7days; Mass Production:12~25 days



2014 For America market CUL UL DLC dimmable panel light led Dimmable led panel lamp 2x4 50W 63W



Description of Dimmable led panel lamp 2x4 50W 63W

The DLC Dimmable led panel lamp 2x4 50W 63W delivers high lumens while achieving 90 lumens per watt  in 100~277 VAC Input with fired rated junction box. This 2*2FT Dimmable led panel lamp 2x4 50W 63W  is available in 4000k, 5000k DLC CCT Options and has 0-10V dimming, which is perfect for new construction applications or retrofitting existing fluorescent troffer light fixtures with,widely used in office spaces, major retail stores, education, government, healthcare, and hospitality.



Specification  of Dimmable led panel lamp 2x4 50W 63W

ModelItem NO.Input PowerLuminous FluxDLC CCT OptionInput VoltageDimmingCertificate
2x2FT Panel Light LEDVS22-DM**40 Watts3700LM4000K 5000K100-277V AC0-10V DimmingUL,DLC

2x2FT Dimmable

Panel Light LED

VS22-DH**55 Watts4900LM4000K 5000K100-277V AC0-10V DimmingUL,DLC
2x4FT Panel Light LEDVS24-DM**50 Watts4600LM4000K 5000K100-277V AC0-10V DimmingUL,DLC
2x4FT Panel Lights LEDVS24-DH**63 Watts5600LM4000K 5000K100-277V AC0-10V DimmingUL,DLC
1x4FT Panel Light LEDVS14-DM**40 Watts3600LM4000K 5000K100-277V AC0-10V DimmingUL

1x4FT Dimmable

Panel Light LED

VS14-DH**50 Watts4500LM4000K 5000K100-277V AC0-10V DimmingUL,DLC



Advantage of Dimmable led panel lamp 2x4 50W 63W

 OKT Dimmable led panel lamp 2x4 50W 63W  are UL, CUL , DLC  listed, which is capable of retrofit application to existng fluorescent fixtures or new architectural recessed, Main characters:

  • cULus, DLC Listed, LM79 Report Available
  • More than 90lm/w
  • Fire rated design with Junction box
  • 0-10V dimming available
  • 5 Years Warranty
  • White or Silver Trim Color Options
  • Suitable for Damp locations
  • Accessary: Driver Box And Clips for T-Bar Included

Details Display





Customer Feedback

  • We are happy with Dimmable led panel lamp 2x4 50W 63W and quality, let’s work on more.  ---  Luca (from NY,USA)
  • 100% love the Dimmable led panel lamp 2x4 50W 63W  I will be ordering more this week. ----Kody(from LA,USA)
  • Thank you for your help and for the photos, are very explicit---Jose from Mexico
  • We are very pleased with the quality of Dimmable led panel lamp 2x4 50W 63W and the performance.------Richard from CANADA
  • the Dimmable led panel lamp 2x4 50W 63W has arrived and is excellent------John from Canada

 Packing Infomation

ModelItem No.Sample PackMass Pack
QTY/CTN (pcs)Carton Size (cm)G.W(KG)QTY/CTN (pcs)Carton Size (cm)G.W(KG)
2*2ft panel light ledVS22-DM** VS22-DH**270*69*1714470*69*1721
2*4ft panel lights ledVS24-DM** VS24-DH**2129*70*17274129*70*1745
1*4ft panel light ledVS14-DH**2129*40*17164129*40*1726
VS14-DM**



Warranty

5 years since the date of purchase for panel light led,welcome to viist our web to download OKT warranty terms.



More detailed info for OKT Dimmable led panel lamp 2x4 50W 63W , pls do not hesitate to inquiry now!
