Click on the image to view the original image

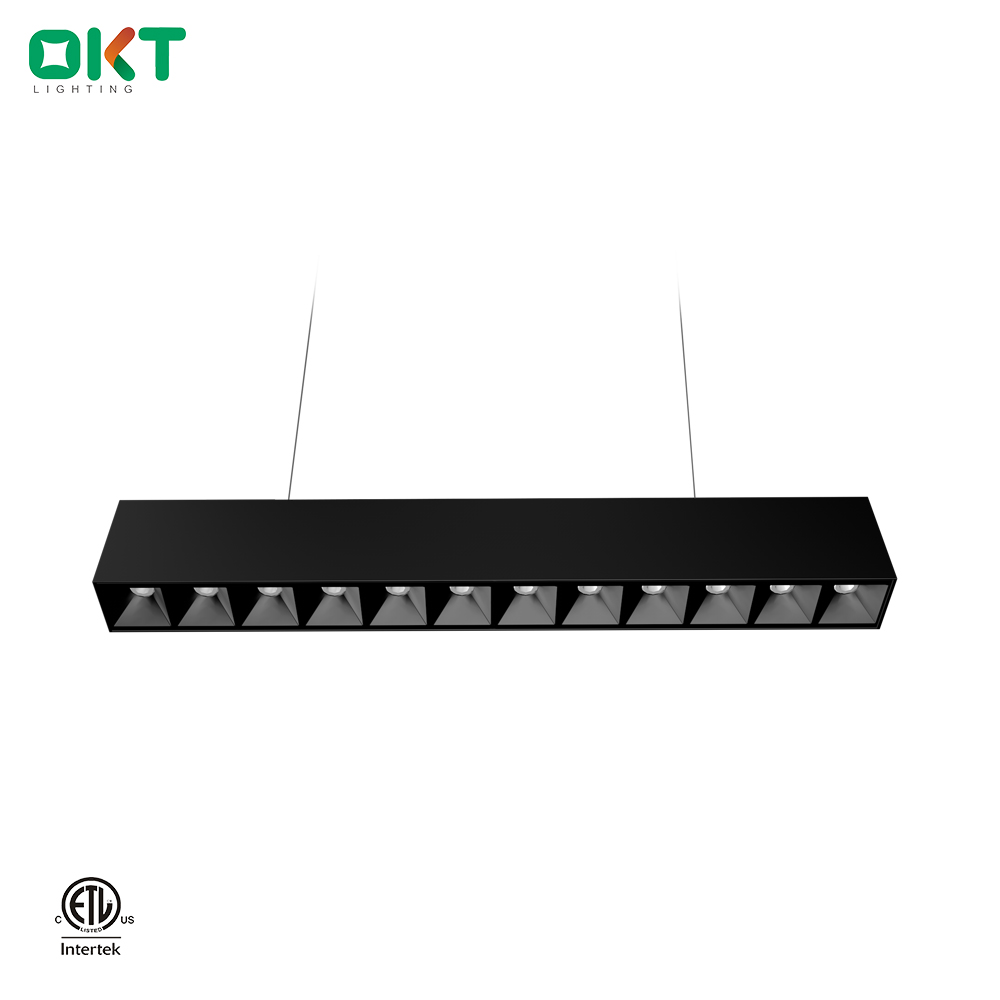

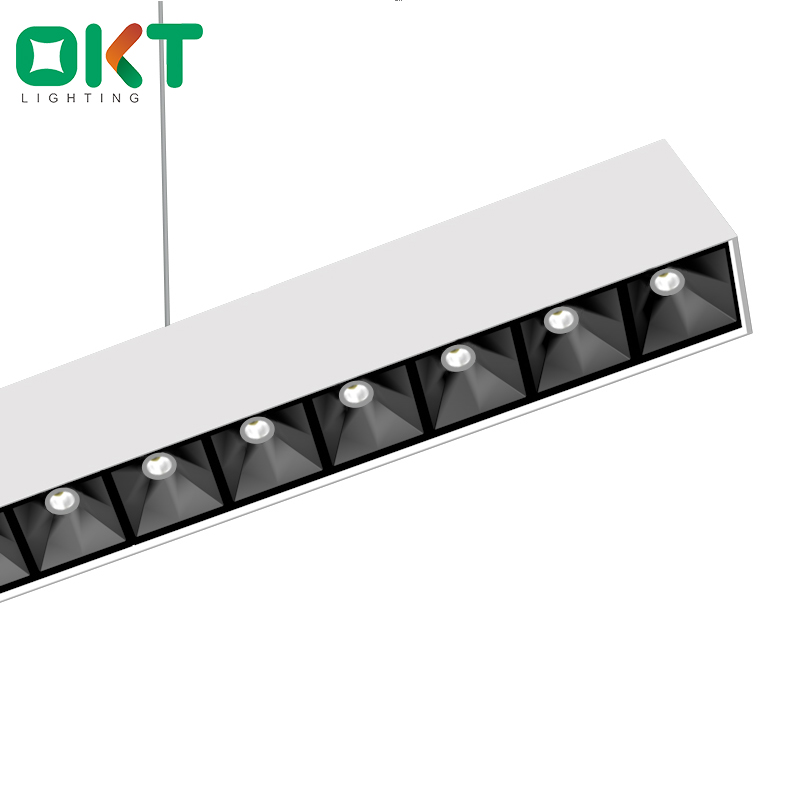

This led linear light fixture with modular optics is a commercial and architectural lighting fixture utilizing an advanced LED optical system to achieve superior performance. Exclusive low glare optics making nearly no glare gives the end-user high visual comfort. It is available in 2ft. and 4ft. dimension options with screw-less structure design, adopted UL recognized driver which support 0-10V dimming. Also, This linear light fixture supports to connect multi fixtures together with pendant and surface mount installation options, creating virtual seamless continuous runs.
Product Description
Product Name | Modular Optics LED Linear Light Fixture |
Model# | LG2-DM-XXX |
Wattage | 19W |
Input Voltage | 100-277V |
Delivered Lumen | 1368lm |
Efficacy | 72lm/w |
Driver type | 0-10V Dimming |
Installation option | Suspended， surface mount |
Other Size | 1ft（9 watts），4ft （38watt） |
Optional Finish | White，Black |
led suspended linear lighting
surface mount optional
Details Images
Exclusive low glare module optics，UGR<5
Available in 15° spot，36° narrow flood，60° flood distributions.
Each power feed up to 380w fixtures totally in 120V AC
Solid-looking aluminum frame
Seamless Continuous Runs
It's highly enginered luminaire joining design allows simple and intuitive assembly in the field. Its junction plate ensures that luminaire rows snap into a laser straight line.
Design Flexibility
It provides the freedom to create compelling spaces, take light around aorners or add dimension with patterns. Your space no longer has to be restricted to a dingle pattern on the ceiling ,achieving a flexible architectural lighting solution for commercial and institutional environment.
Dimension
Application
The linear light is a perfect minimalistic solution for achieving “no beam of light” in high visual comfort ceiling lighting application, providing architectural lighting solutions for office building, dining room, educational, retail, hotel, hospitality,etc.
Related Products
Company Introduction
Profession
Shenzhen OKT Lighting CO.,Ltd, Founded in 2008;
Specialized in researching, manufacturing and sales of commercial LED lighting fixtures, include panel lights, troffers, downlights, linear pendant fixtures and LED emergency drivers;
All have achieved certifications such as UL, ETL, Energy Star, DLC, TITLE 24, TÜV, CSA, SASO and FCC;
A minimum five-year warranty.
Focus
Focus entirely on the North American market and in just a few years it has already gained a firm footing in this market;
Focused on R&D, producing LED products that are more energy-efficient, cost-effective and aesthetically pleasing than those already on the market;
Focus on quality control, We take more than just quality products for manufacturers to thrive.
FAQ
Q1. What optics do you have?
A1: Currently we have low glaring Reflector, Regressed diffusing, louver.
Q2. Is it able to make connections and what accessory need
A2: Yes, the linear light fixture is able to make kinds of connections, and there are 4 different connectors.
Q3. What finish can you make?
A3: Our standard finish is white and black. For other color finish, we can customize with MOQ requirement.
