Home > Products > ONN-M4H Tri-color in One Led Equipment Indicator Light for CNC Machine 12v / 24v / 220v

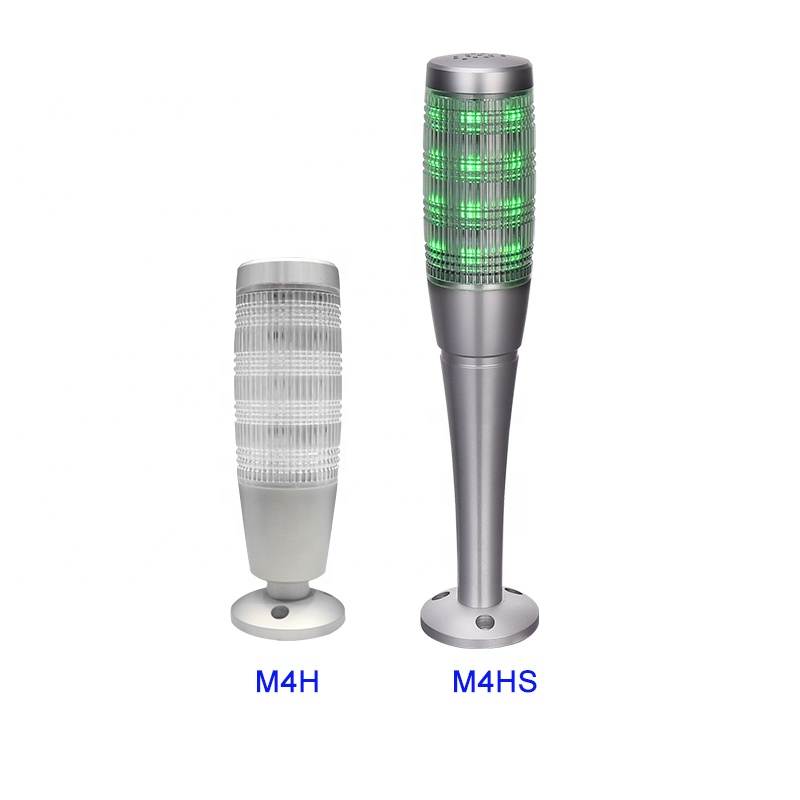

ONN-M4H Tri-color in One Led Equipment Indicator Light for CNC Machine 12v / 24v / 220v
Click on the image to view the original image
Product： views：7ONN-M4H Tri-color in One Led Equipment Indicator Light for CNC Machine 12v / 24v / 220v
Branch： ONN
Type： Equipment Indicator Lights
Size： 20X7X8 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:36
  Negotiated
Product Details
Overview
Quick Details
Type:
Equipment Indicator Lights
Light Source:
LED
Input Voltage(V):
12/24/220
Lamp Power(W):
4
Lamp Luminous Flux(lm):
400
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
R Y G
Beam Angle(°):
360
IP Rating:
ip52
Certification:
CCC, CE, EMC, FCC, RoHS
Emitting Color:
Changeable
Lamp Body Material:
Aluminum
Base Type:
Other
Place of Origin:
Guangdong, China
Brand Name:
ONN
Item type:
Led Equipment Indicator Light for CNC Machine
Voltage:
12/24/220V
lifespan:
50000 Hours
luminous flux:
100Lm/W
Optional Specification:
Flash/Buzzer
Optional color:
R Y G B W in single layer / tri-color in one
View angle:
360 degree
Mounting:
Plate base mounting with screws
Housing:
Whole Aluminum
Certificate:
CE / FCC / CCC

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X7X8 cm
Single gross weight:
0.5 kg
Package Type:
24v Led Warning Light For CNC Machine with Buzzer Flash 1pcs/ inner box & PE bag ; 12pcs/ outer box According to customr's requests
Lead Time:
Quantity(Piece)1 - 1213 - 5051 - 100>100
Est. Time(days)357To be negotiated
Video Description

ONN-M4H Tri-color in One Led Equipment Indicator Light for CNC Machine  12V / 24v / 220v







Product Features :




1. Imported PC lamp shade, high efficiency

2. Aluminum housing, strong and Easy mounting

3. Small size, exquisite appearance design

4. RYG in single Layer



Technical Parameters :





M4H  -   1 C  B F T-ryg - 48

  1         2 3  4 5 6   7     8



1

Model No.: M4H

2

Layers: 1 layer

3

Installation:  C. Plate type



Voltage:  A. DC12V    B. DC24V    C. AC220V

5

Function:  B. Continous light    F. With buzzer no flash    S. Red flash no buzzer   C. Red flash with buzzer

D. All flash    E. All flash with buzzer

6

Wiring Mode : C. Contact Type      Z. Input Directly common line is positive ( NPN )        B. Input directly common line is negative ( PNP )         T. PNP / NPN

7

Optional Color :   R (red)   Y (yellow)   G (green)    W (white)    B (blue)

 8

 Diameter: 48mm





Product Size and Wiring Drawing :















 Application :





Numerically-controlled machine tool equipment,textile machinery,security and protection,security inspection device,electronic machine,automated production line,LED package,spectral equipment,laser equipment,food filling equipment,ceramic machinery,autowarehouse etc man-machine interactive interface.

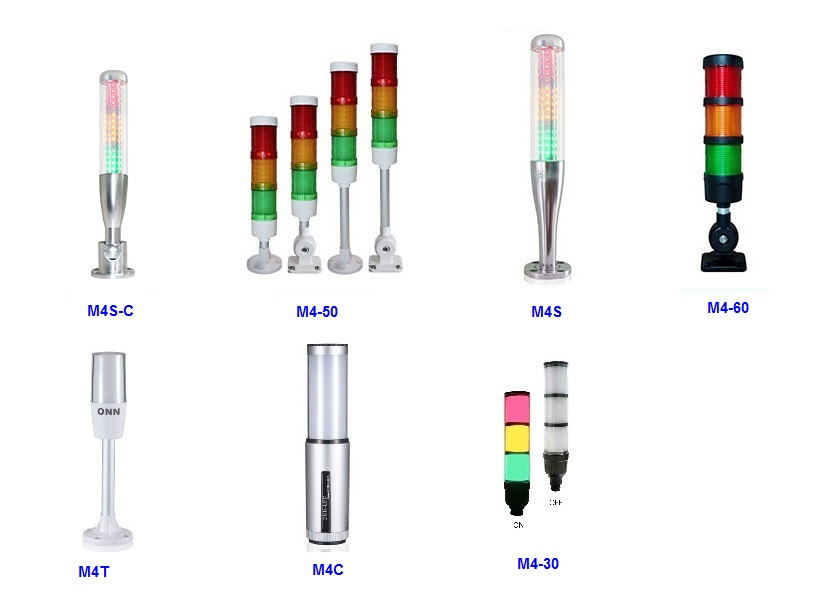

Similar Products for CNC Machine :










Brief Introduction :



Shenzhen ONN Semoconductor Lighting Co., Ltd, established in 2005, is a pioneer manufacturer of led industrial lighting products in China. We are now focused on led machine light, led warning light since 2005 . Cooperated with DMG Mori , Agiecharmilles , Hardinge , SMTC and many famous cnc machine factory . Products Passed TUV CE , cTUVus ,FCC , IP66 .  ISO
