Home > Products > Hot sale M2 24V/220V IP65 long arm machine work light

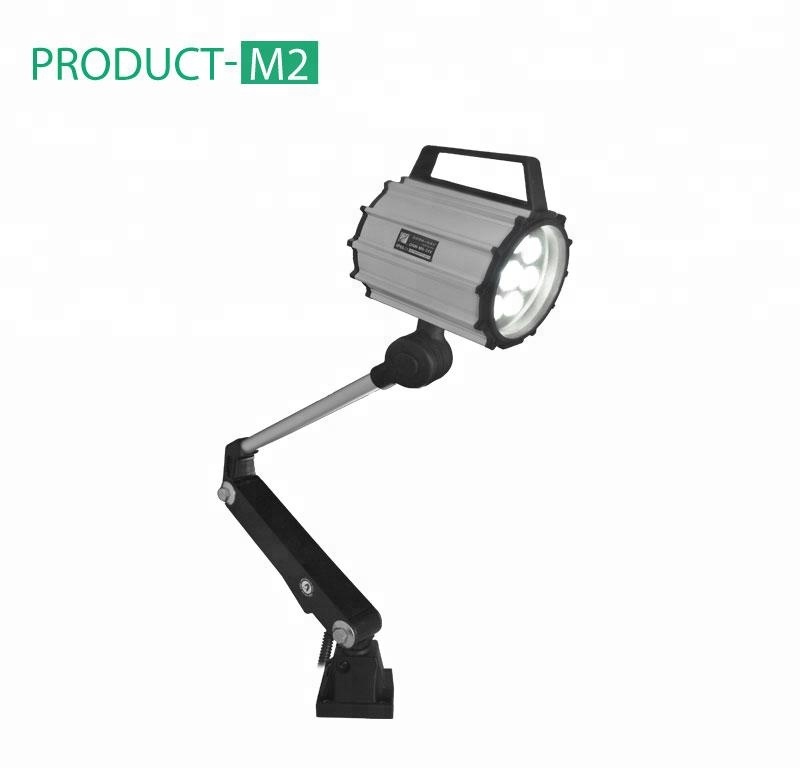

Hot sale M2 24V/220V IP65 long arm machine work light
Click on the image to view the original image
Product: views:3Hot sale M2 24V/220V IP65 long arm machine work light
Branch: ONN
Size: 62X38X46 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 21:36
  Negotiated
Product Details
Overview
Quick Details
Item Type:
Machine Tool Working Lamps
Light Source:
LED
Input Voltage(V):
24V/220V
Lamp Power(W):
9.5
Lamp Luminous Flux(lm):
855
Lamp Luminous Efficiency(lm/w):
95
CRI (Ra>):
80
Color Temperature(CCT):
Pure White
Working Temperature(℃):
-25 - 45
Working Lifetime(Hour):
50000
IP Rating:
IP65, IP65
Certification:
BV, CCC, CE, CQC, EMC, FCC, LVD, REACH, RoHS, UL, VDE
Emitting Color:
White
Lamp Body Material:
Aluminum
Place of Origin:
Guangdong, China
Brand Name:
ONN
Model Number:
M2 series
Name:
Hot sale M2 24V/220V IP65 long arm machine work light
Power:
7W or 9.5W optional
Lead time:
7-10 days
Beam Angle:
45 degree
Power factor:
PF>0.9
Material:
aluminum, nylon
Warranty:
3 years
APPLICATIONS:
Led Machine Work Light
LED Qty:
6pcs or 8pcs

Packaging & Delivery

Selling Units:
Single item
Single package size:
62X38X46 cm
Single gross weight:
1.7 kg
Package Type:
Hot sale M2 24V/220V IP65 long arm machine work light 3pcs / Innerbox , 18pcs / Carton ;1pc / Innerbox , 12pcs/Carton Customized packing available.
Lead Time:
Quantity(Piece)1 - 100>100
Est. Time(days)7To be negotiated

Hot sale M2 24V/220V IP65 long arm machine work light

Product Description
 Specification:
ModelPowerVoltageCentral luxCCT   CRI  Beam Angle
ONN-M2-B17WDC24V1400lux5500-6000K >80Ra   45 degree
ONN-M2-B29.5WDC24V1800-1900lux4000-4500K
ONN-M2-C17WAC220V1400lux5500-6000K
ONN-M2-C29.5WAC220V1800-1900lux4000-4500K



Features:

1. High power (1-3W)LEDs.

2.Fine aluminum body and toughened glass, good in water-proof,heat dissipation and appearance.

3. Aluminum alloy die-casting joint support,sturdy and durable,concise and generous, 300°adjust can be done,let the lamp light free.

4. Big allowance design,long lifespan capacitance,external driver,sharply increase the lifespan of driver,modular design,easy to replace once the driver failed.

5. Fine workmanship,high brightness,it is the best choice for middle and top grade machinery,promote the machinery grade and selling points.

6. Provide OEM processing, Can show you logo in the back of lamp,minum quantity get 50pcs;

7. IP65,good waterproof,ash proof and oil proof.

8. The base hole diameter between the screws holes is 45mm*45mm,suitable for regular machine installation requirement;

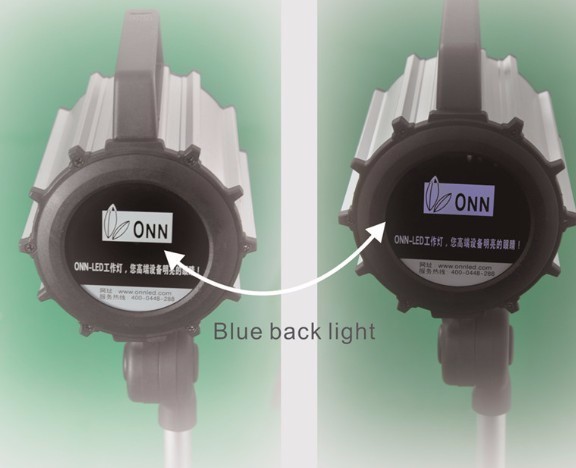

9. Hide-design of switch,the switch under lamp head,we adopt import waterproof switch,install here,

the lamp will more pratical,better-waterproof,dust-proof and oil-proof,we focus on details improvement

Application:







Packaging & Shipping

1. Our Standard Export Packing. Customized packing is avaible for MOQ order.

2. Delivery time: samples -10 days, mass order 10-20 days.

3. Shipping: by international express, by air or by ship.

Our Services

1. After sales service: 3 years warranty for quality problem.

2. OEM service

Company Information

Shenzhen ONN Semiconductor Lighting Co., Ltd, established in 2005, is a pioneer manufacturer of led industrial lighting products in China. We started in the beginning with led machine lights, and now we have expanded to our industrial lighting series and and focuse on led machine light, led warning light, led cleanroom light and led freezer light.

With 10 years development, we have become the leader of producing and supplying led industrial lights in China. We have gained a 60% domestic market, and our products have also been exported widely to the world with fast increase year by year. We have cooperated with many customers from Germany, France, Amercia, Japan, South Korea, Australia and so on, such as KNUTH,GF AgieCharmilles,SMP and so on. Our aim is to become the biggest and best supplier of led industrial lights from China to the world.

We will continue to do our best to develop and produce high quality and price competitive products to our clients. We hope very much to cooperate with more and more friends from the world to develop the brilliant led industrial lighting market.

Our Factory:

The lighting show and our visitor:
